POWER SEAT CONTROL SYSTEM


  1. OUTLINE


    1. Front Power Seat


      1. A power seat control system is used for the driver seat and front passenger seat*.

      2. A memory function is used in the power seat control system for the driver seat.


        • *: Models with front passenger side power seat control system

    2. Rear No. 2 Power Seat with Folding Function


      1. A power seat control system is used for rear No. 2 seat.

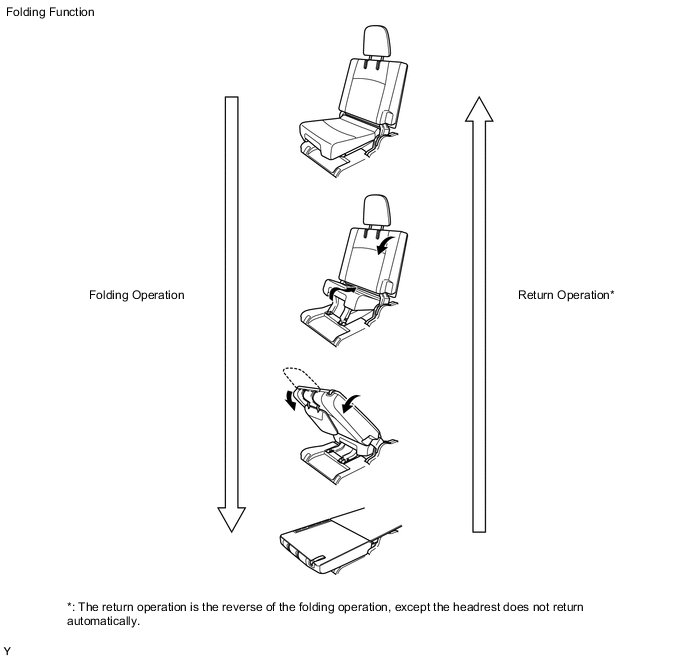

      2. The rear No. 2 seat is stowed automatically by the folding function.

        A01UL2KE01

  2. SPECIFICATION

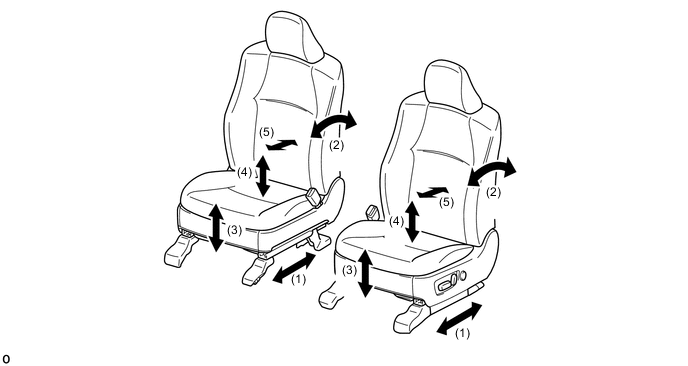

    1. The power seat system for the driver seat and front passenger seat has the following functions:

      A01UL1TE03
      Adjustment Function Stroke Driver Seat Front Passenger Seat*1 Memory Function for Driver Seat
      No. Item
      (1) Seat Slide 240 mm (9.4 in.) ○ ○ ○
      (2) Seat Reclining 52° ○ ○ ○
      (3) Front Vertical 25 mm (1.0 in.) ○ - or ○*2 ○
      (4) Seat Lifter 60 mm (2.4 in.) ○ - or ○*2 ○
      (5) Lumbar Support 30 mm (1.2 in.) ○ - or ○*2 -

      • *1: Models with front passenger side power seat control system

      • *2: Models with front passenger side 10-way power seat control system

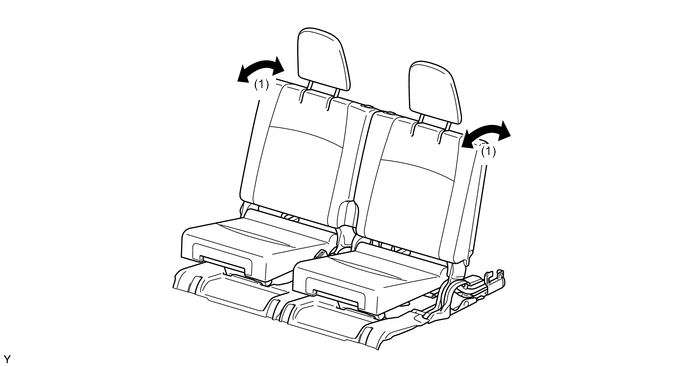

    2. The power seat system for the rear No. 2 seat has the following functions:

      A01UKGHE04
      Adjustment Function Stroke
      No. Item
      (1) Seat Reclining 8°
