METER / GAUGE SYSTEM

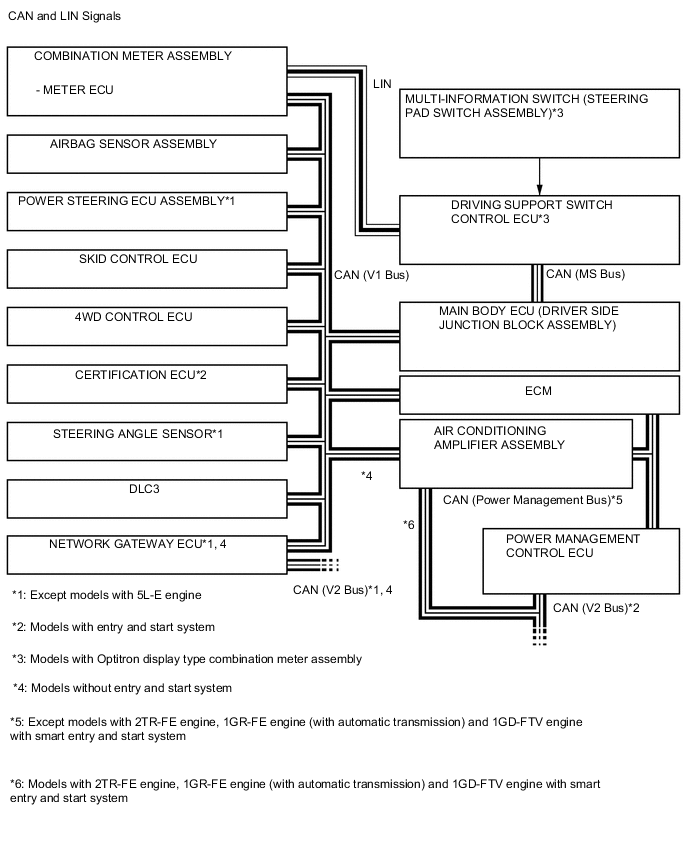

A01UKHKE03

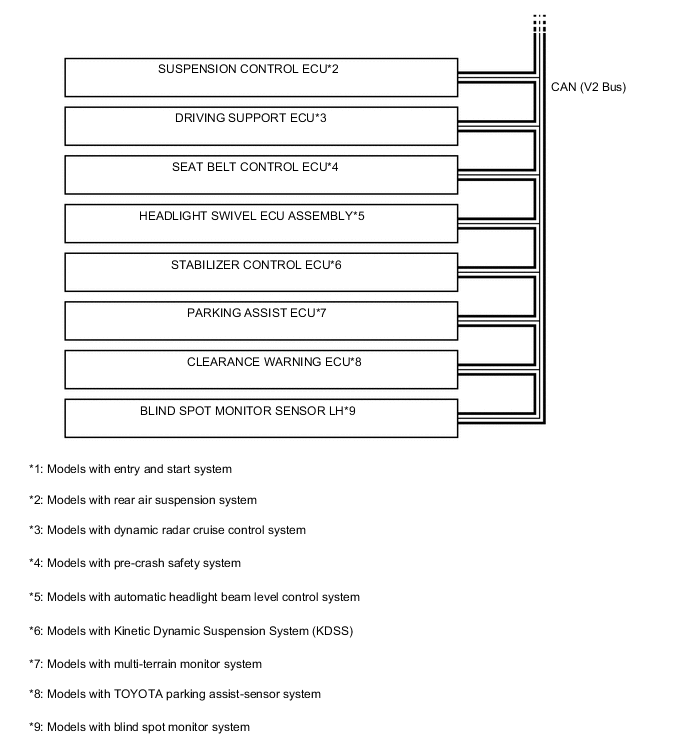

A01UKJCE02

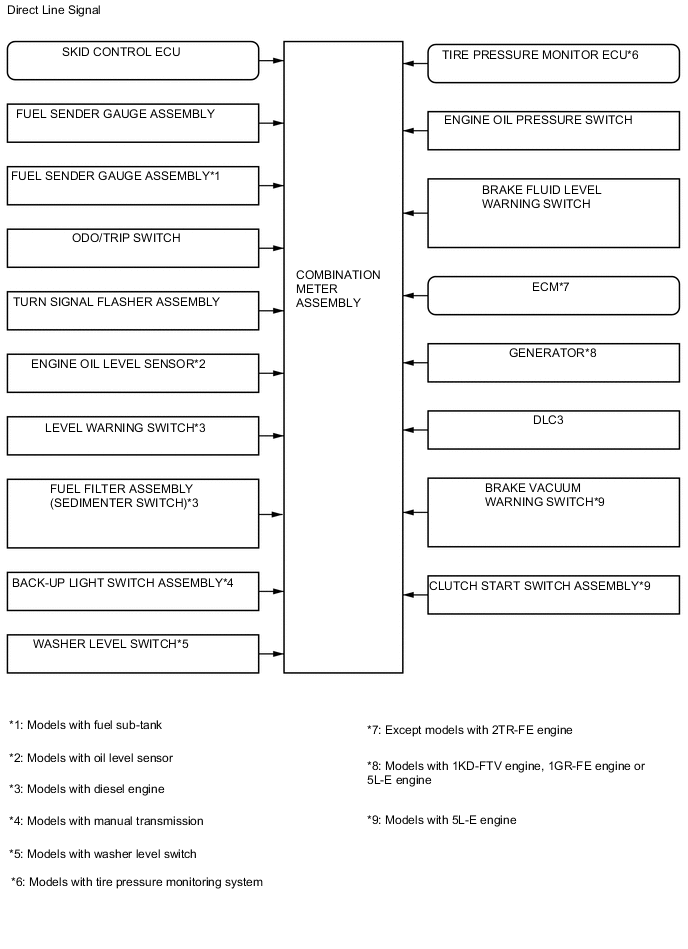

A01UKI0E02

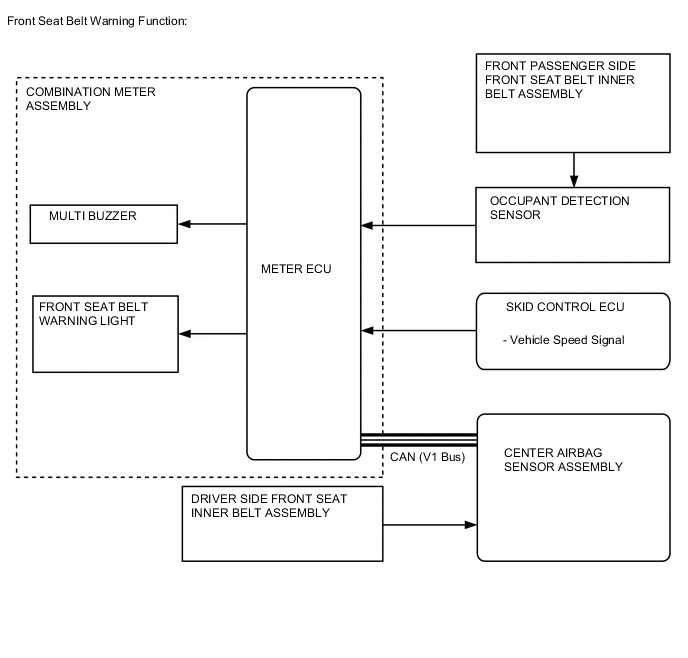

A01UKY8E04

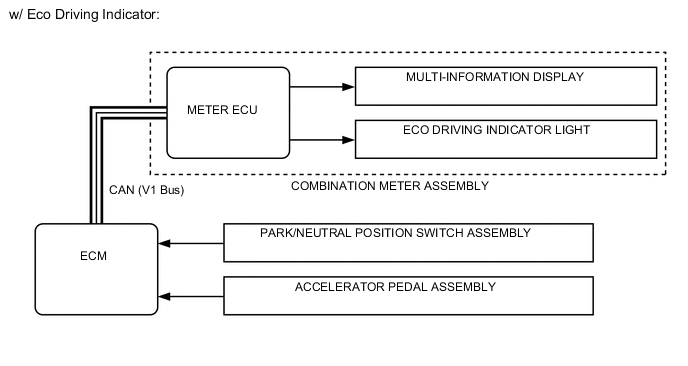

A01UKNJE06
ECU Input Signal
ECM

  • Engine speed signal

  • Shift position signal

  • Current range position signal

  • Drive mode signal

  • Gear shift indicator signal

  • Fuel injection volume signal

  • Engine coolant temperature signal

  • Buzzer sounding request signal

  • Warning light control signal

  • Indicator light illumination request signal

  • Warning message display request signal

  • Information message display request signal

  • Diagnosis
Center Airbag Sensor Assembly

  • Warning light illumination request signal

  • Driver seat belt buckle switch signal

  • Diagnosis
Main Body ECU

  • Lighting status signal

  • Door courtesy light switch signal

  • Warning message display request signal

  • Buzzer sounding request signal

  • Diagnosis
Skid Control ECU

  • Warning message display request signal

  • Warning light illumination request signal

  • Indicator light illumination request signal

  • Vehicle Speed Signal

  • Diagnosis
Certification ECU

  • Warning message display request signal

  • Information message display request signal

  • Buzzer sounding request

  • Engine immobiliser certification signal

  • Emergency request signal
Power Steering ECU Assembly

  • Warning light illumination request signal

  • Diagnosis
Power Management Control ECU Start function message request signal of entry and start system
Headlight Swivel ECU Assembly

  • Warning light illuminates request signal

  • Warning message display request signal
Driving Support ECU

  • Warning message display request signal

  • Information message display request signal

  • Warning light illumination request signal

  • Indicator light illumination request signal
Parking Assist ECU

  • Warning message display request signal

  • Information message display request signal

  • Indicator light illumination request signal

  • Diagnosis
Clearance Warning ECU

  • Information message display request signal

  • Diagnosis
Air Conditioning Amplifier Assembly Outside temperature signal
Suspension Control ECU

  • Warning message display request signal

  • Information message display request signal

  • Indicator light illumination request signal

  • Diagnosis
Seat Belt Control ECU

  • Warning message display request signal

  • Warning light illumination request signal

  • Diagnosis
4WD Control ECU

  • Indicator light illumination request signal

  • Diagnosis
Driving Support Switch Control ECU Multi-information switch operation signal
Blind Spot Monitor Sensor LH

  • Indicator light illumination request signal

  • Warning message display request signal

Tech Tips

The input signals differ by vehicle specification.
