SEAT HEATER SYSTEM

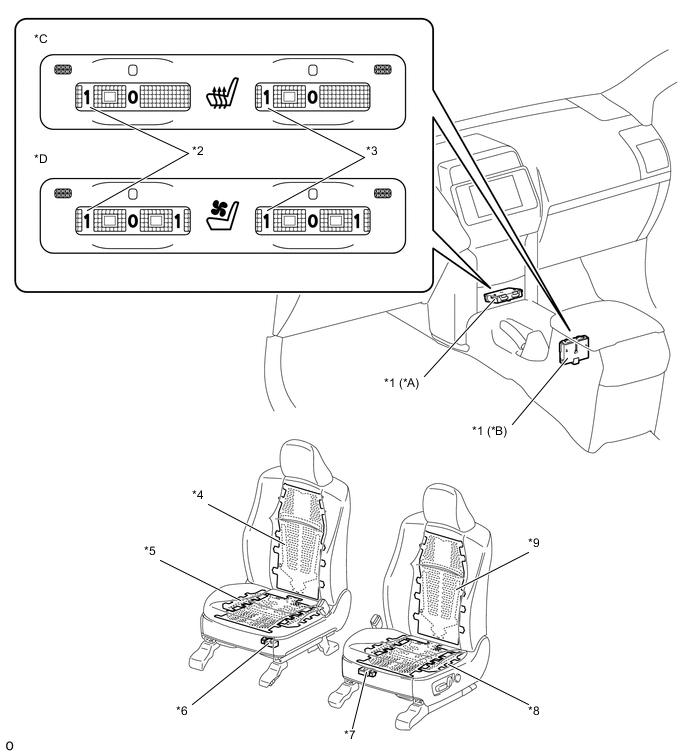

| *A | Models with Manual Transmission | *B | Models with Automatic Transmission |
| *C | Models with Seat Heater System | *D | Models with Seat Heater System and Climate Control Seat System |
| *1 | Seat Heater Switch Assembly | *2 | Seat Heater Switch LH |
| *3 | Seat Heater Switch RH | *4 | Front Seat Back Heater Assembly RH |
| *5 | Front Seat Cushion Heater Assembly RH | *6 | Seat Heater Control Sub-assembly RH |
| *7 | Seat Heater Control Sub-assembly LH | *8 | Front Seat Back Heater Assembly LH |
| *9 | Front Seat Cushion Heater Assembly LH | - | - |

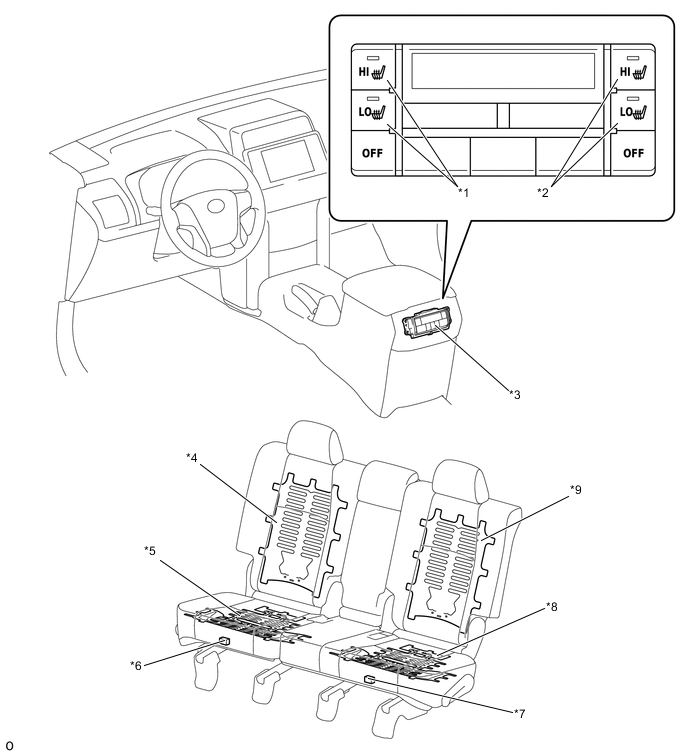

| *1 | Rear Seat Heater Switch LH | *2 | Rear Seat Heater Switch RH |
| *3 | Air Conditioner Control Assembly | *4 | Rear Seat Back Heater Assembly RH |
| *5 | Rear Seat Cushion Heater Assembly RH | *6 | Seat Heater Control Sub-assembly RH |
| *7 | Seat Heater Control Sub-assembly LH | *8 | Rear Seat Cushion Heater Assembly LH |
| *9 | Rear Seat Back Heater Assembly LH | - | - |
