| *A |
Models with Entry and Start System |
*B |
Models with Toyota Safety Sense |
| *C |
Models with Central Gateway ECU (Network Gateway ECU) |
*D |
Models with Navigation System |
| *E |
Models with Display Audio System |
*F |
Models with Rear Air Suspension System and Adaptive Variable Suspension System (AVS) |
| *G |
Models with Power Tilt and Telescopic System |
*H |
Models with Kinetic Dynamic Suspension System (KDSS) |
| *I |
Models with Power Seat Control System |
*J |
Models with Terematics Transceiver |
| *K |
Models with Multi-terrain Monitor System |
*L |
Models with TOYOTA Parking Assist-sensor System (8 Sensor Type or 4 Sensor Type with Display Audio System or Navigation System) |

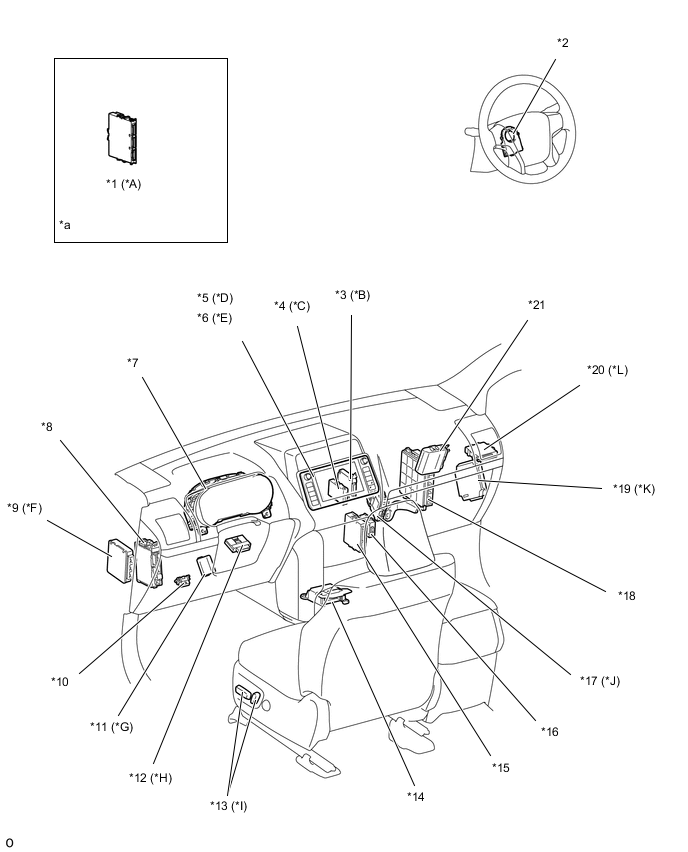

| *1 |
Certification ECU (Smart Key ECU Assembly) |
*2 |
Steering Angle Sensor |
| *3 |
Driving Support ECU Assembly |
*4 |
Central Gateway ECU (Network Gateway ECU) |
| *5 |
Navigation Receiver Assembly |
*6 |
Radio and Display Receiver Assembly |
| *7 |
Combination Meter Assembly |
*8 |
Main Body ECU (Driver Side Junction Block Assembly) |
| *9 |
Suspension Control ECU |
*10 |
DLC3 |
| *11 |
Multiplex Tilt and Telescopic ECU |
*12 |
Stabilizer Control ECU |
| *13 |
Position Control ECU Assembly |
*14 |
Center Airbag Sensor Assembly |
| *15 |
Air Conditioning Amplifier Assembly |
*16 |
Power Steering ECU Assembly |
| *17 |
Terematics Transceiver |
*18 |
ECM |
| *19 |
Parking Assist ECU |
*20 |
Clearance Warning ECU Assembly |
| *21 |
4WD Control ECU |
- |
- |
| *a |
Refer to the Service Bulletin for the installation of the part. |
- |
- |
