EMISSION CONTROL SYSTEM

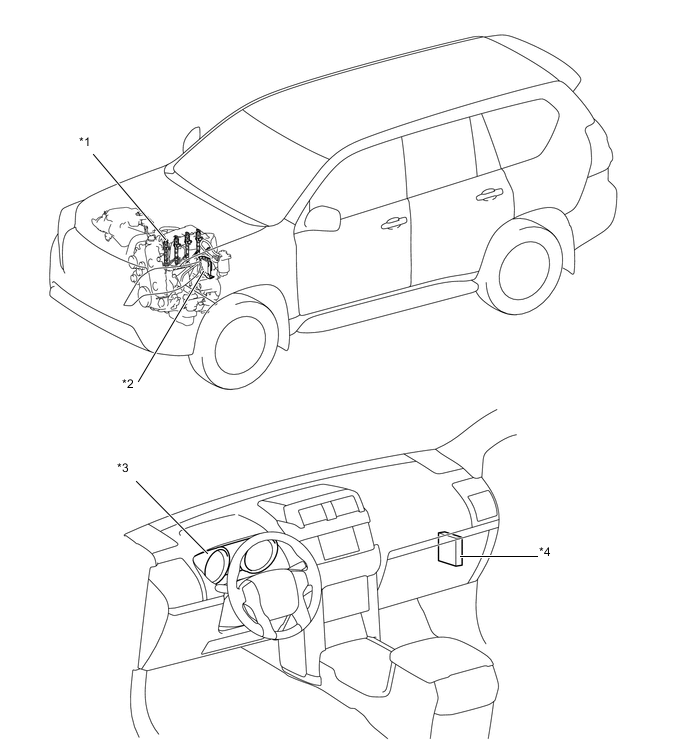

| *1 | Injector Assembly | *2 | Injector Driver |
| *3 | Combination Meter Assembly | *4 | ECM |

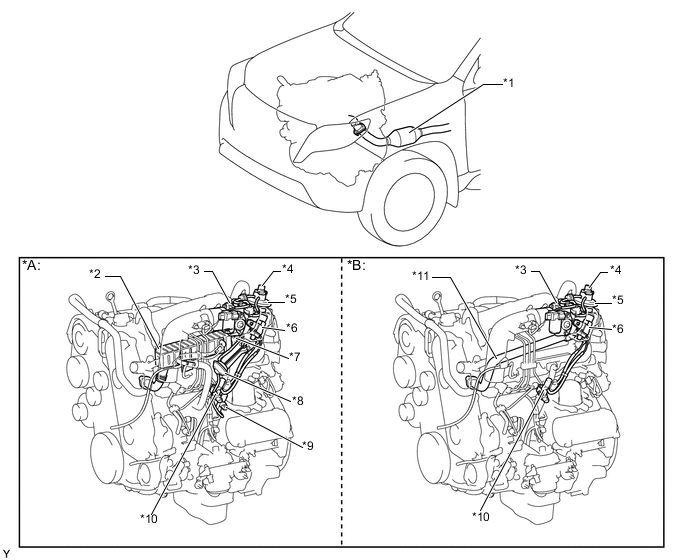

| *A | Models Compliant with EURO 4 Emission Regulations | *B | Models Compliant with EURO 2 and EURO 3 Emission Regulations |
| *1 | Oxidation Catalyst | *2 | EGR Pipe Sub-assembly - EGR Cooler |
| *3 | Diesel Throttle Body Assembly - Throttle Position Sensor - Throttle Control Motor |
*4 | EGR Valve Position Sensor |
| *5 | Electric EGR Control Valve Assembly | *6 | E-VRV (for EGR Valve Control) |
| *7 | No. 2 EGR Valve - EGR Cooler Bypass Switching Valve |
*8 | Actuator for EGR Cooler Bypass Switching Valve |
| *9 | VSV (for EGR Cooler Bypass Switching Valve) | *10 | VSV (for EGR Valve Close) |
| *11 | EGR Pipe Sub-assembly | - | - |
