DYNAMIC RADAR CRUISE CONTROL SYSTEM

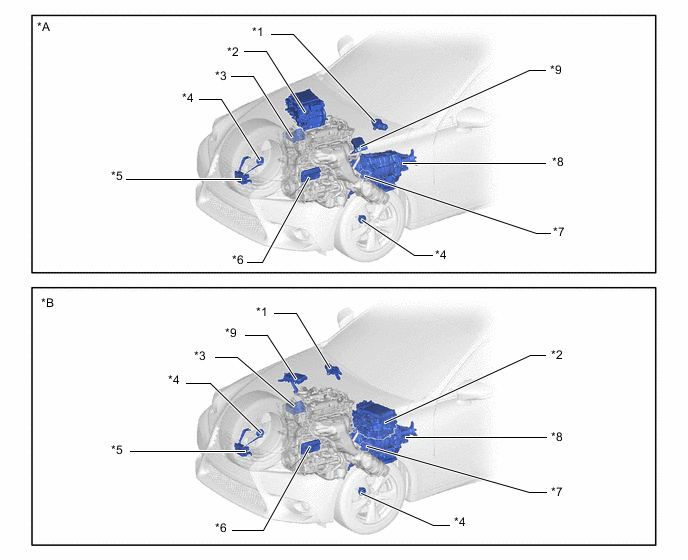

| *A | LHD Models | *B | RHD Models |
| *1 | WINDSHIELD WIPER MOTOR ASSEMBLY | *2 | INVERTER WITH CONVERTER ASSEMBLY
|
| *3 | THROTTLE BODY WITH MOTOR ASSEMBLY
|
*4 | SPEED SENSOR |
| *5 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *6 | ECM |
| *7 | SHIFT LEVER POSITION SENSOR | *8 | HYBRID VEHICLE TRANSMISSION ASSEMBLY
|
| *9 | SKID CONTROL ECU ASSEMBLY | - | - |

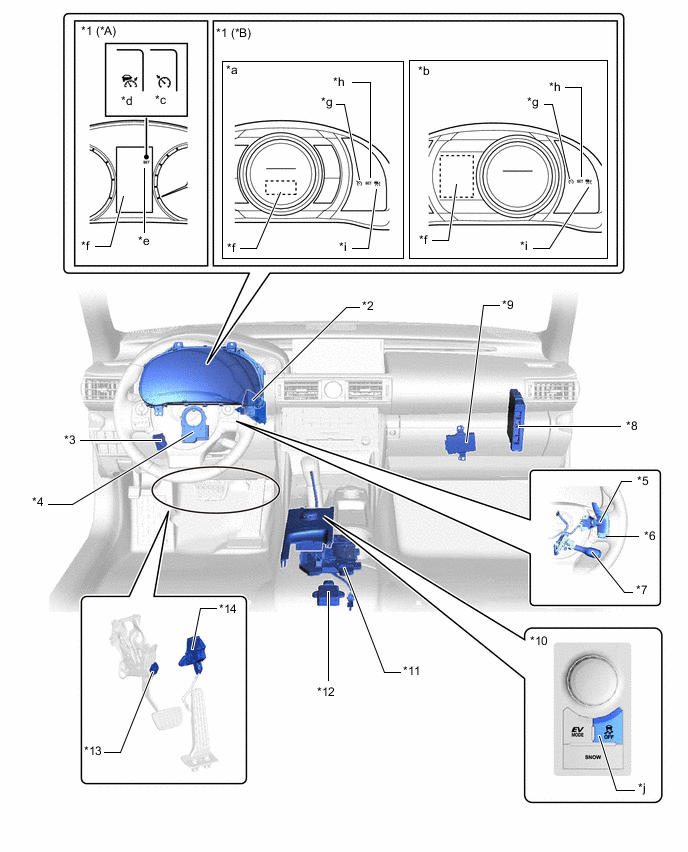

Figure 1. LHD Models
| *A | Except F SPORT | *B | F SPORT |
| *1 | COMBINATION METER ASSEMBLY | *2 | DRIVING SUPPORT ECU ASSEMBLY |
| *3 | SKID CONTROL BUZZER ASSEMBLY | *4 | STEERING SENSOR |
| *5 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) | *6 | STEERING PAD SWITCH ASSEMBLY
|
| *7 | CRUISE CONTROL SWITCH | *8 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *9 | NETWORK GATEWAY ECU | *10 | COMBINATION SWITCH ASSEMBLY |
| *11 | TRANSMISSION FLOOR SHIFT ASSEMBLY
|
*12 | YAWRATE SENSOR |
| *13 | STOP LIGHT SWITCH ASSEMBLY | *14 | ACCELERATOR PEDAL SENSOR ASSEMBLY |
| *a | Normal Mode | *b | Menu Mode |
| *c | Cruise Control Indicator (Constant Speed Control Mode) |
*d | Radar Cruise Control Indicator (Vehicle-to-vehicle Distance Control Mode) |
| *e | Cruise Control SET Indicator | *f | Multi-information Display |
| *g | Cruise Control Indicator Light (Constant Speed Control Mode) |
*h | Cruise Control SET Indicator Light |
| *i | Radar Cruise Control Indicator Light (Vehicle-to-vehicle Distance Control Mode) |
*j | VSC OFF (TRC OFF) Switch |

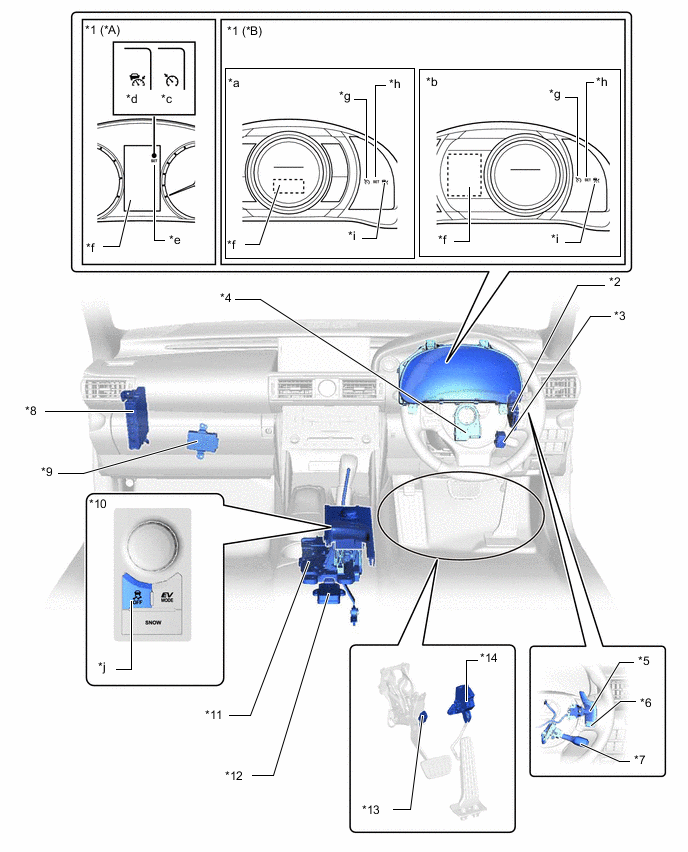

Figure 2. RHD Models
| *A | Except F SPORT | *B | F SPORT |
| *1 | COMBINATION METER ASSEMBLY | *2 | DRIVING SUPPORT ECU ASSEMBLY |
| *3 | SKID CONTROL BUZZER ASSEMBLY | *4 | STEERING SENSOR |
| *5 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) | *6 | STEERING PAD SWITCH ASSEMBLY
|
| *7 | CRUISE CONTROL SWITCH | *8 | HYBRID VEHICLE COMTROL ECU ASSEMBLY |
| *9 | NETWORK GATEWAY ECU | *10 | COMBINATION SWITCH ASSEMBLY |
| *11 | TRANSMISSION FLOOR SHIFT ASSEMBLY
|
*12 | YAWRATE SENSOR |
| *13 | STOP LIGHT SWITCH ASSEMBLY | *14 | ACCELERATOR PEDAL SENSOR ASSEMBLY |
| *a | Normal Mode | *b | Menu Mode |
| *c | Cruise Control Indicator (Constant Speed Control Mode) |
*d | Radar Cruise Control Indicator (Vehicle-to-vehicle Distance Control Mode) |
| *e | Cruise Control SET Indicator | *f | Multi-information Display |
| *g | Cruise Control Indicator Light (Constant Speed Control Mode) |
*h | Cruise Control SET Indicator Light |
| *i | Radar Cruise Control Indicator Light (Vehicle-to-vehicle Distance Control Mode) |
*j | VSC OFF (TRC OFF) Switch |
