DYNAMIC RADAR CRUISE CONTROL SYSTEM
| *A | LHD Models | *B | RHD Models |
| *1 | WINDSHIELD WIPER MOTOR ASSEMBLY | *2 | INVERTER WITH CONVERTER ASSEMBLY - MG ECU |
| *3 | THROTTLE BODY WITH MOTOR ASSEMBLY - THROTTLE POSITION SENSOR - THROTTLE CONTROL MOTOR |
*4 | SPEED SENSOR |
| *5 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *6 | ECM |
| *7 | SHIFT LEVER POSITION SENSOR | *8 | HYBRID VEHICLE TRANSMISSION ASSEMBLY - MG2 |
| *9 | SKID CONTROL ECU ASSEMBLY | - | - |
Figure 1. LHD Models
| *A | Except F SPORT | *B | F SPORT |
| *1 | COMBINATION METER ASSEMBLY | *2 | CRUISE CONTROL INDICATOR LIGHT (CONSTANT SPEED CONTROL MODE) |
| *3 | RADAR CRUISE CONTROL INDICATOR LIGHT (VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE) |
*4 | CRUISE CONTROL SET INDICATOR LIGHT |
| *5 | MULTI-INFORMATION DISPLAY | *6 | STEERING SENSOR |
| *7 | SKID CONTROL BUZZER ASSEMBLY | *8 | DRIVING SUPPORT ECU ASSEMBLY |
| *9 | NETWORK GATEWAY ECU | *10 | POWER MANAGEMENT CONTROL ECU |
| *11 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
*12 | STEERING PAD SWITCH ASSEMBLY - DISTANCE CONTROL SWITCH |
| *13 | CRUISE CONTROL SWITCH - ON-OFF BUTTON - +RES SWITCH - -SET SWITCH - CANCEL SWITCH - MODE SWITCH |
*14 | TRANSMISSION FLOOR SHIFT ASSEMBLY - TRANSMISSION CONTROL SWITCH |
| *15 | COMBINATION SWITCH ASSEMBLY | *16 | VSC OFF SWITCH |
| *17 | YAWRATE SENSOR | *18 | ACCELERATOR PEDAL SENSOR ASSEMBLY |
| *19 | STOP LIGHT SWITCH ASSEMBLY | *20 | DLC3 |
| *a | Normal Mode | *b | Menu Mode |

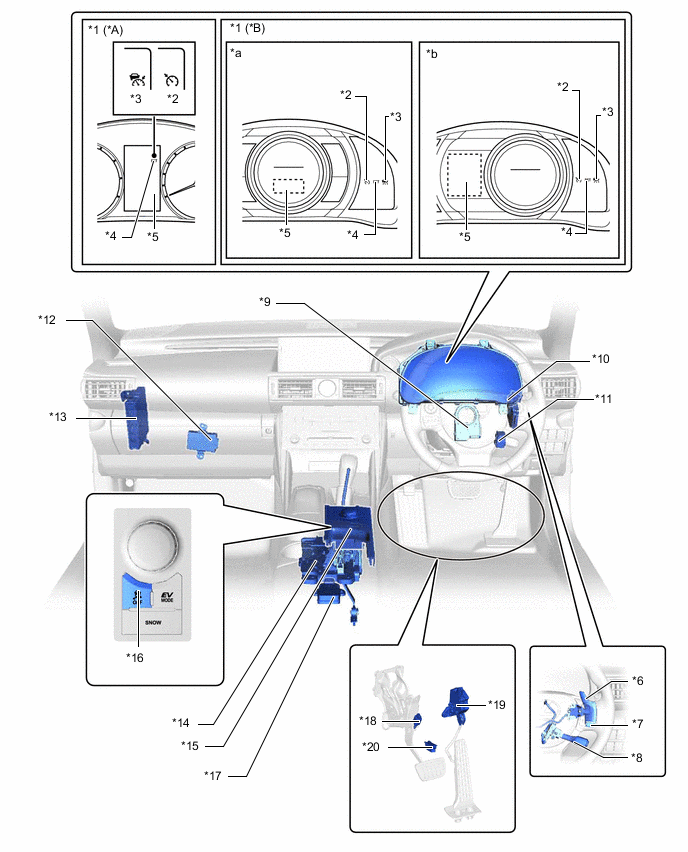

Figure 2. RHD Models
| *A | Except F SPORT | *B | F SPORT |
| *1 | COMBINATION METER ASSEMBLY | *2 | CRUISE CONTROL INDICATOR LIGHT (CONSTANT SPEED CONTROL MODE) |
| *3 | RADAR CRUISE CONTROL INDICATOR LIGHT (VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE) |
*4 | CRUISE CONTROL SET INDICATOR LIGHT |
| *5 | MULTI-INFORMATION DISPLAY | *6 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *7 | STEERING PAD SWITCH ASSEMBLY - DISTANCE CONTROL SWITCH |
*8 | CRUISE CONTROL SWITCH - ON-OFF BUTTON - +RES SWITCH - -SET SWITCH - CANCEL SWITCH - MODE SWITCH |
| *9 | STEERING SENSOR | *10 | DRIVING SUPPORT ECU ASSEMBLY |
| *11 | SKID CONTROL BUZZER ASSEMBLY | *12 | NETWORK GATEWAY ECU |
| *13 | POWER MANAGEMENT CONTROL ECU | *14 | TRANSMISSION FLOOR SHIFT ASSEMBLY - TRANSMISSION CONTROL SWITCH |
| *15 | COMBINATION SWITCH ASSEMBLY | *16 | VSC OFF SWITCH |
| *17 | YAWRATE SENSOR | *18 | STOP LIGHT SWITCH ASSEMBLY |
| *19 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *20 | DLC3 |
| *a | Normal Mode | *b | Menu Mode |
