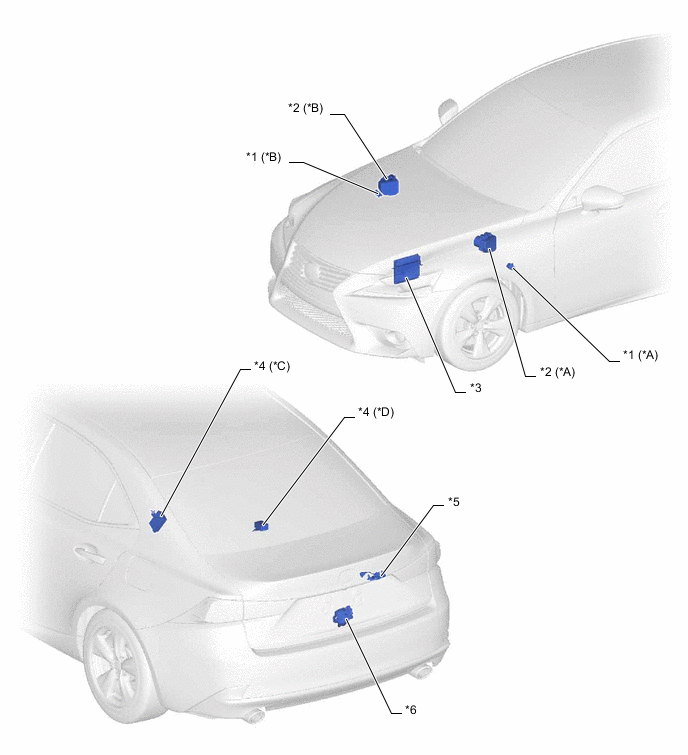

LUGGAGE COMPARTMENT DOOR OPENER SYSTEM
| *A | LHD Models | *B | RHD Models |
| *C | Models with Door Control Receiver in Quarter Pillar | *D | Models with Door Control Receiver under Package Tray Trim Panel |
| *1 | WIRELESS DOOR LOCK BUZZER | *2 | BRAKE ACTUATOR ASSEMBLY
|
| *3 | ECM | *4 | DOOR CONTROL RECEIVER |
| *5 | LUGGAGE ELECTRICAL KEY SWITCH | *6 | LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
|

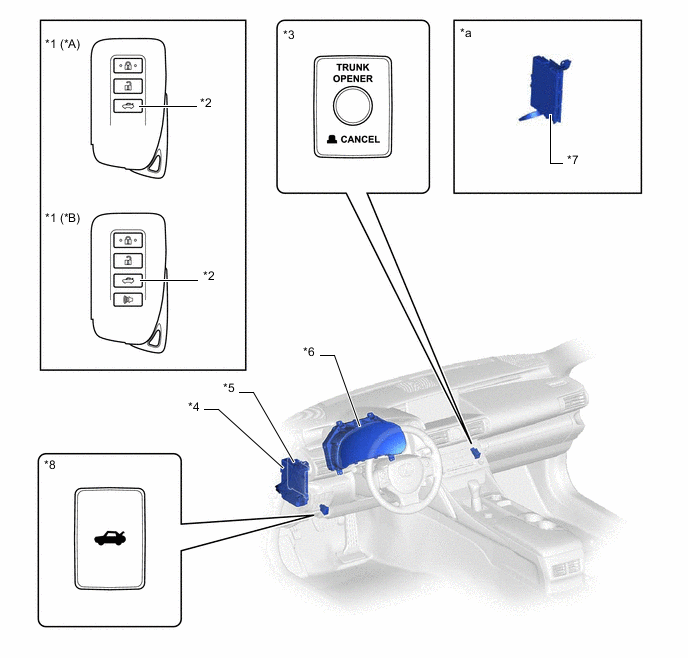

Figure 1. LHD Models
| *A | Models without Panic Switch | *B | Models with Panic Switch |
| *1 | ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY | *2 | LUGGAGE COMPARTMENT DOOR OPENING SWITCH |
| *3 | LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | COMBINATION METER ASSEMBLY |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | LUGGAGE DOOR OPENER SWITCH ASSEMBLY |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

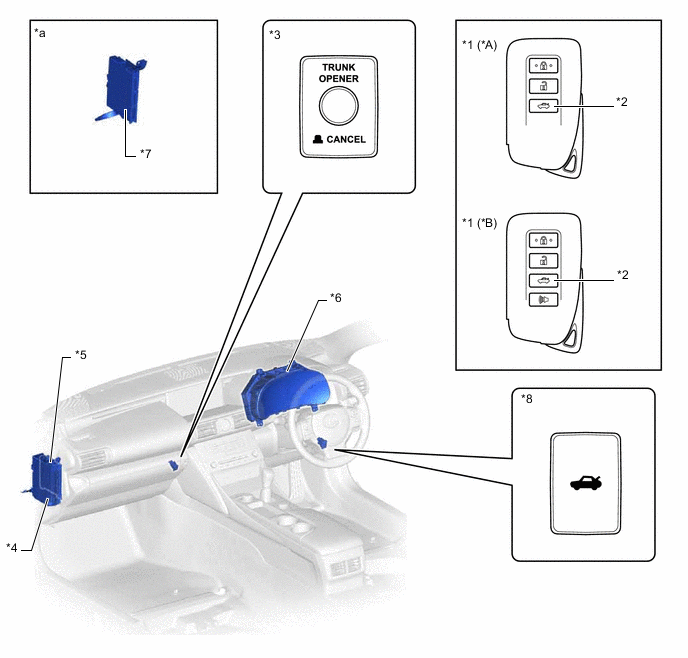

Figure 2. RHD Models
| *A | Models without Panic Switch | *B | Models with Panic Switch |
| *1 | ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY | *2 | LUGGAGE COMPARTMENT DOOR OPENING SWITCH |
| *3 | LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | COMBINATION METER ASSEMBLY |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | LUGGAGE DOOR OPENER SWITCH ASSEMBLY |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
