AIR CONDITIONING SYSTEM

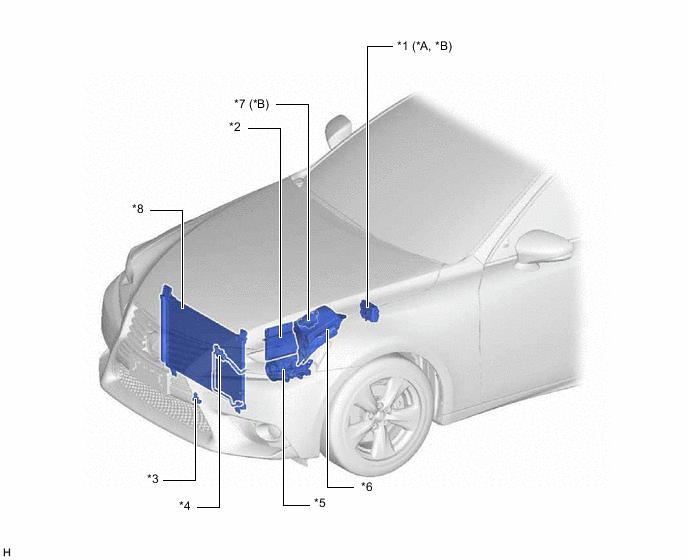

Figure 1. LHD Models

A001HATC01
*A Models with PTC Heater *B Models with Stop and Start System
*1

NO. 3 ENGINE ROOM RELAY BLOCK


  • NO. 1 PTC HTR RELAY (Models with PTC Heater)

  • NO. 2 PTC HTR RELAY (Models with PTC Heater)

  • A/C W/PMD RELAY (Models with Stop and Start System)

 *2 ECM
*3 AMBIENT TEMPERATURE SENSOR (THERMISTOR ASSEMBLY) *4 AIR CONDITIONER PRESSURE SENSOR
*5 COOLER COMPRESSOR ASSEMBLY *6

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY

- INTEGRATION RELAY
*7

HEATER WATER PUMP ASSEMBLY

(HEATER ACCESSORY ASSEMBLY)

 *8 HEATER CONDENSOR ASSEMBLY

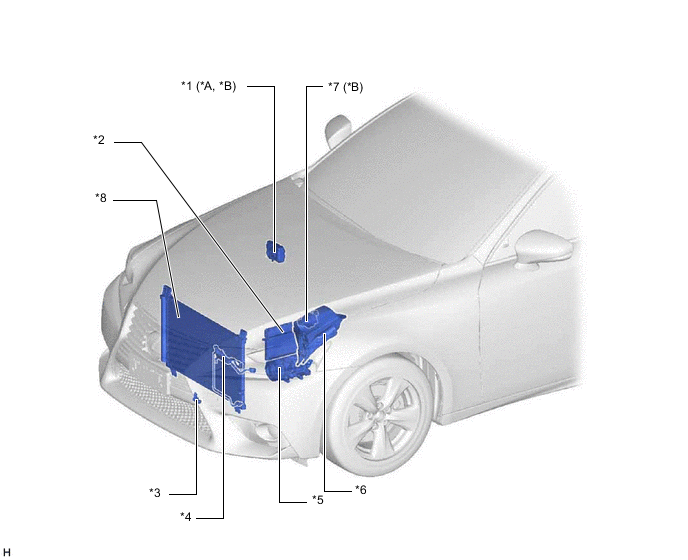

Figure 2. RHD Models

A001HGPC01
*A Models with PTC Heater *B Models with Stop and Start System
*1

NO. 3 ENGINE ROOM RELAY BLOCK


  • NO. 1 PTC HTR RELAY (Models with PTC Heater)

  • NO. 2 PTC HTR RELAY (Models with PTC Heater)

  • A/C W/PMD RELAY (Models with Stop and Start System)

 *2 ECM
*3 AMBIENT TEMPERATURE SENSOR (THERMISTOR ASSEMBLY) *4 AIR CONDITIONER PRESSURE SENSOR
*5 COOLER COMPRESSOR ASSEMBLY *6

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY

- INTEGRATION RELAY
*7

HEATER WATER PUMP ASSEMBLY

(HEATER ACCESSORY ASSEMBLY)

 *8 HEATER CONDENSOR ASSEMBLY

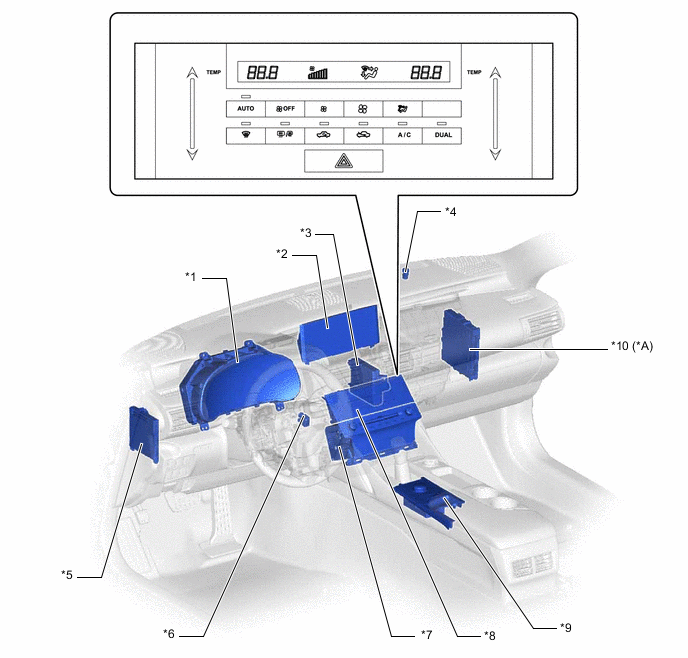

Figure 3. LHD Models

A001H4NC01
*A Models with Stop and Start System - -
*1 COMBINATION METER ASSEMBLY *2 MULTI-DISPLAY ASSEMBLY
*3 AIR CONDITIONING AMPLIFIER ASSEMBLY *4 SOLAR SENSOR (AUTOMATIC LIGHT CONTROL SENSOR)
*5 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *6 ROOM TEMPERATURE SENSOR (COOLER THERMISTOR)
*7 RADIO RECEIVER ASSEMBLY *8 AIR CONDITIONING CONTROL ASSEMBLY
*9 COMBINATION SWITCH ASSEMBLY (DRIVE MODE SELECT) *10 ENGINE STOP AND START ECU

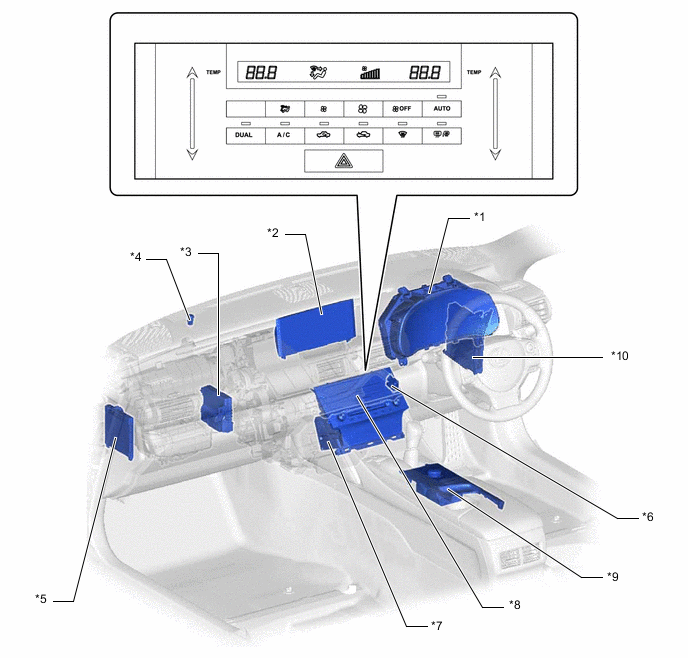

Figure 4. RHD Models

A001H5CC01
*A Models with Stop and Start System - -
*1 COMBINATION METER ASSEMBLY *2 MULTI-DISPLAY ASSEMBLY
*3 AIR CONDITIONING AMPLIFIER ASSEMBLY *4 SOLAR SENSOR (AUTOMATIC LIGHT CONTROL SENSOR)
*5 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *6 ROOM TEMPERATURE SENSOR (COOLER THERMISTOR)
*7 RADIO RECEIVER ASSEMBLY *8 AIR CONDITIONING CONTROL ASSEMBLY
*9 COMBINATION SWITCH ASSEMBLY (DRIVE MODE SELECT) *10 ENGINE STOP AND START ECU

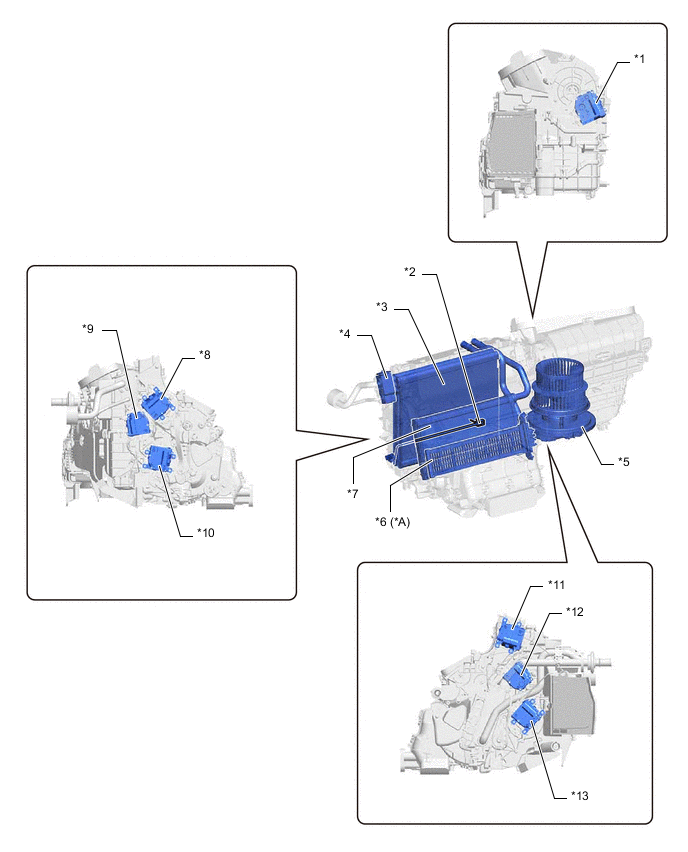

Figure 5. LHD Models

A001H60C01
*A Models with PTC Heater - -
*1 BLOWER DAMPER SERVO SUB-ASSEMBLY *2 EVAPORATOR TEMPERATURE SENSOR (NO. 1 COOLER THERMISTOR)
*3 NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY *4 COOLER EXPANSION VALVE
*5 BLOWER WITH FAN MOTOR SUB-ASSEMBLY *6 QUICK HEATER ASSEMBLY
*7 NO. 1 HEATER RADIATOR UNIT SUB-ASSEMBLY *8 NO. 5 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR MODE DOOR)
*9 NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR DRIVER SIDE UPPER AIR MIX DOOR) *10 NO. 3 AIR CONDITIONING RADIATOR DAMPER SUB-ASSEMBLY (FOR DRIVER SIDE LOWER AIR MIX DOOR)
*11 NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR DEF DOOR) *12 NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR PASSENGER SIDE UPPER AIR MIX DOOR)
*13 NO. 4 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR PASSENGER SIDE LOWER AIR MIX DOOR) - -

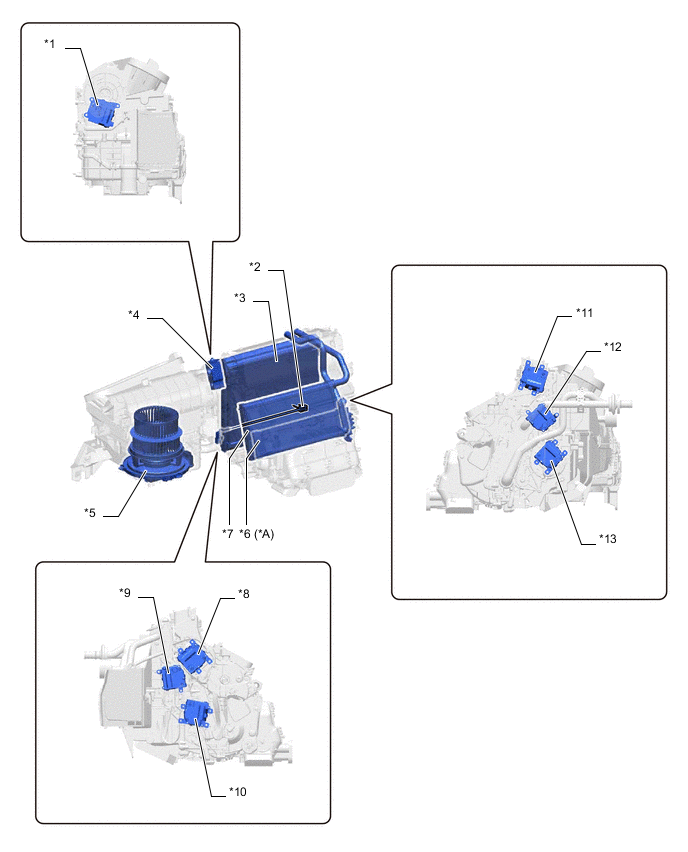

Figure 6. RHD Models

A001H5HC02
*A Models with PTC Heater - -
*1 BLOWER DAMPER SERVO SUB-ASSEMBLY *2 EVAPORATOR TEMPERATURE SENSOR (NO. 1 COOLER THERMISTOR)
*3 NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY *4 COOLER EXPANSION VALVE
*5 BLOWER WITH FAN MOTOR SUB-ASSEMBLY *6 QUICK HEATER ASSEMBLY
*7 NO. 1 HEATER RADIATOR UNIT SUB-ASSEMBLY *8 NO. 5 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR MODE DOOR)
*9 NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR DRIVER SIDE UPPER AIR MIX DOOR) *10 NO. 3 AIR CONDITIONING RADIATOR DAMPER SUB-ASSEMBLY (FOR DRIVER SIDE LOWER AIR MIX DOOR)
*11 NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR DEF DOOR) *12 NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR PASSENGER SIDE UPPER AIR MIX DOOR)
*13 NO. 4 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (FOR PASSENGER SIDE LOWER AIR MIX DOOR) - -
