LIN COMMUNICATION SYSTEM
| *A | Models with Rain Sensing Function | *B | Models with Sliding Roof System |
| *1 | RAIN SENSOR | *2 | SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY) |
| *3 | POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Front RH Door) | *4 | POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Rear RH Door) |
| *5 | POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (for Front LH Door) | *6 | POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (for Rear LH Door) |

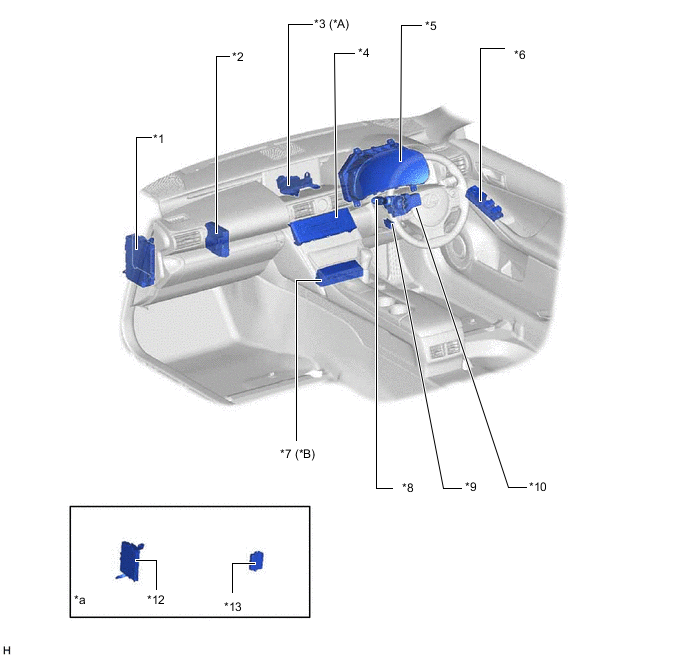

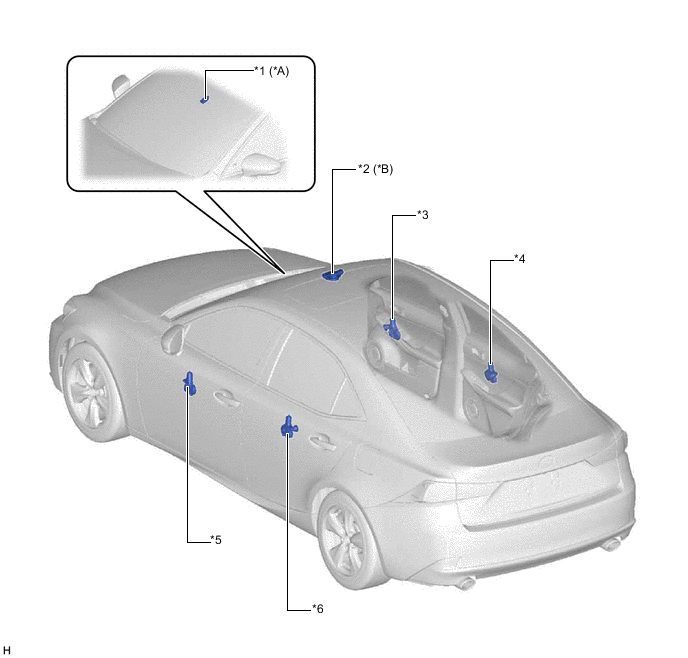

Figure 1. LHD Models
| *A | Models with Double Locking System | *B | Models with Seat Heater Function |
| *1 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *6 | REFRESHING SEAT SWITCH |
| *7 | AIR CONDITIONING CONTROL ASSEMBLY | *8 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *9 | STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) | *10 | DLC3 |
| *11 | ID CODE BOX (IMMOBILISER CODE ECU) | *12 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *a | Refer to Service Bulletin for the installation position of the parts. | - | - |

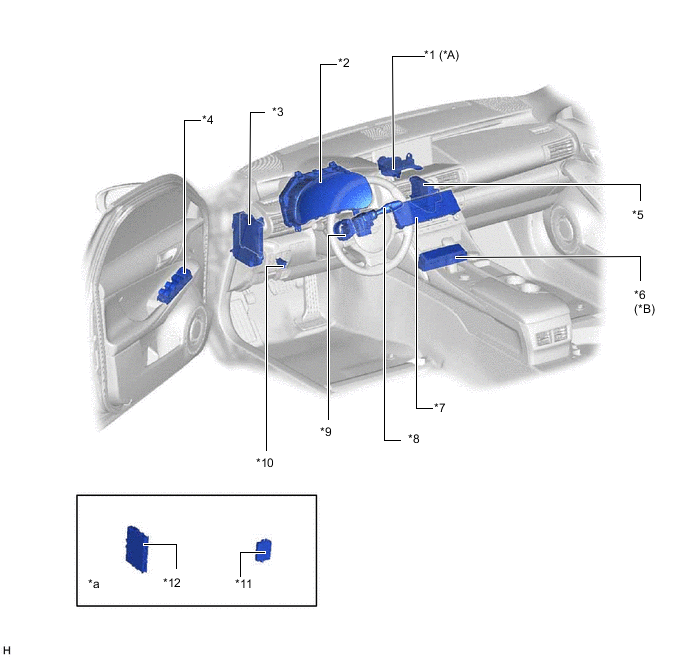

Figure 2. RHD Models
| *A | Models with Double Locking System | *B | Models with Seat Heater Function |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *3 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY | *4 | AIR CONDITIONING CONTROL ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY |
| *7 | REFRESHING SEAT SWITCH | *8 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *9 | DLC3 | *10 | STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) |
| *11 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *12 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *a | Refer to Service Bulletin for the installation position of the parts. | - | - |
