VARIABLE GEAR RATIO STEERING SYSTEM


  1. FUNCTION


    1. When a system malfunction is detected, the system illuminates the master warning light, sounds a multi buzzer and displays a warning message on the multi-information display to warn the driver.

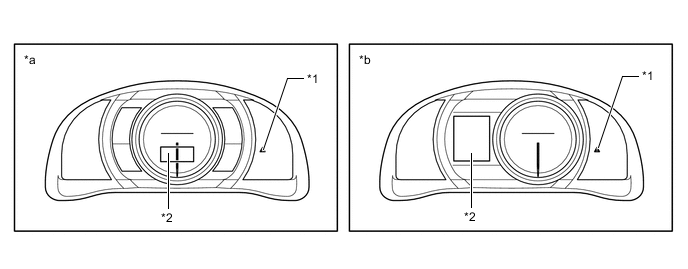

      A0120A0C01
      *1 Master Warning Light *2 Multi-information Display
      *a Normal Mode *b Menu Mode
      Detail Multi-information Display Master Warning Light Multi Buzzer
      Abnormality detected in the VGRS system

      Check

      VGRS System

      		 Illuminates Sounds once*

      *: The multi buzzer does not sound if it is not a system malfunction.
