VARIABLE GEAR RATIO STEERING SYSTEM

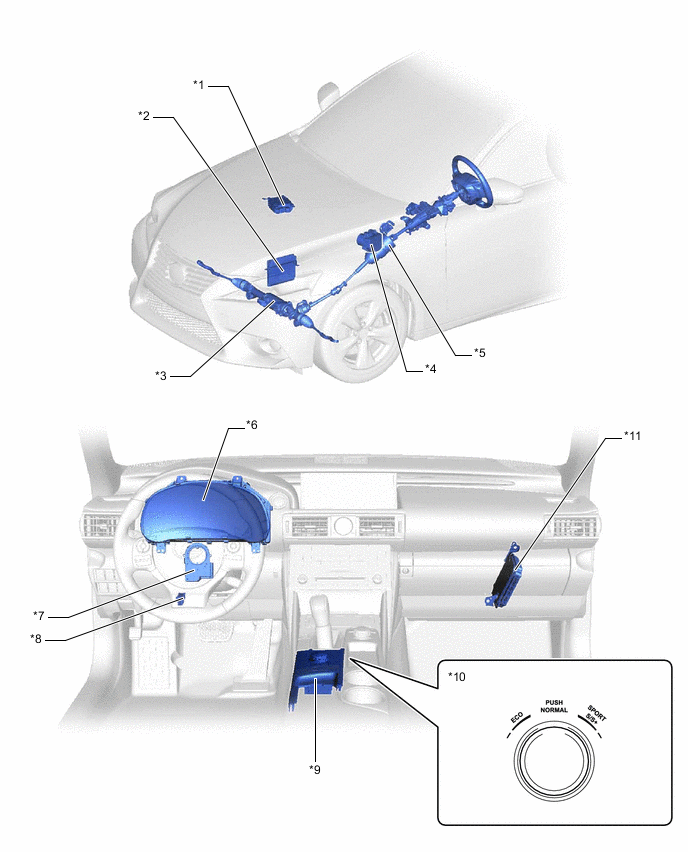

Figure 1. LHD Modeks
| *1 | POWER STEERING ECU ASSEMBLY | *2 | ECM |
| *3 | POWER STEERING LINK ASSEMBLY | *4 | BRAKE ACTUATOR ASSEMBLY
|
| *5 | STEERING ACTUATOR ASSEMBLY | *6 | COMBINATION METER ASSEMBLY
|
| *7 | STEERING SENSOR | *8 | DLC3 |
| *9 | COMBINATION SWITCH ASSEMBLY | *10 | DRIVE MODE SELECT |
| *11 | FRONT STEERING CONTROL ECU | - | - |
Figure 2. RHD Models
| *1 | BRAKE ACTUATOR ASSEMBLY
|
*2 | ECM |
| *3 | POWER STEERING LINK ASSEMBLY | *4 | POWER STEERING ECU ASSEMBLY |
| *5 | STEERING ACTUATOR ASSEMBLY | *6 | FRONT STEERING CONTROL ECU |
| *7 | COMBINATION SWITCH ASSEMBLY | *8 | DRIVE MODE SELECT |
| *9 | STEERING SENSOR | *10 | DLC3 |
| *11 | COMBINATION METER ASSEMBLY
|
- | - |
