FUEL SYSTEM


  1. CONSTRUCTION


    1. A compact fuel pump assembly (for low pressure) is used. Its basic components are a fuel pump, a fuel filter assembly, a fuel main valve assembly, a pressure regulator assembly and a fuel sender gauge assembly.

    2. The fuel pump assembly (for low pressure) is located in the fuel tank assembly. This fuel pump pressurizes the fuel from the fuel tank assembly and sends the fuel to the high-pressure and low-pressure fuel systems.

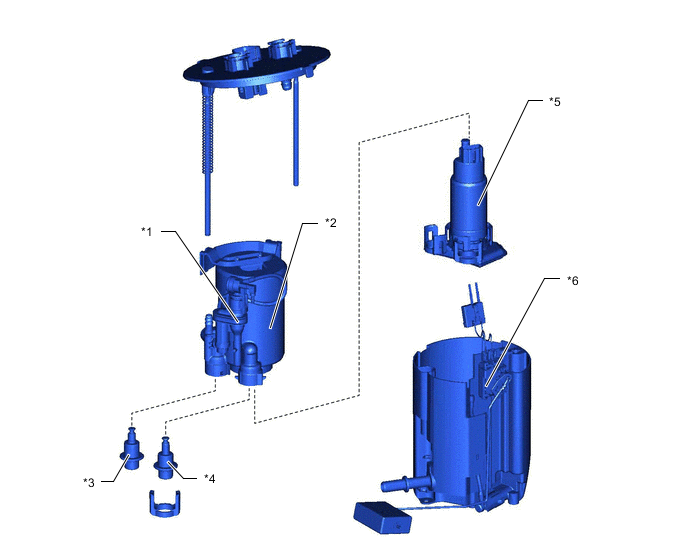

      A0120MKC01
      *1 Jet Pump *2 Fuel Filter Assembly
      *3 Fuel Main Valve Assembly *4 Fuel Pressure Regulator Assembly
      *5 Fuel Pump Assembly (for Low Pressure) *6 Fuel Sender Gauge Assembly
