СИСТЕМА SFI

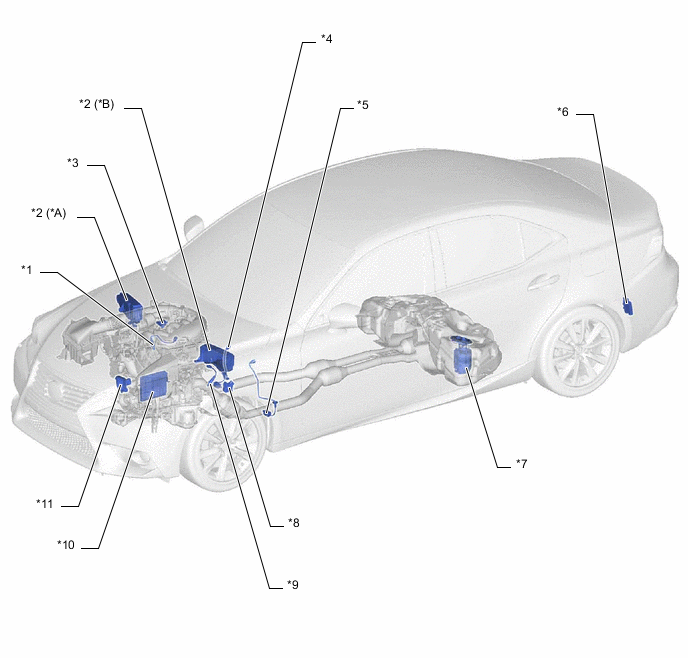

| *A | LHD Models | *B | RHD Models |
| *1 | AIR FUEL RATIO SENSOR (Bank 1 Sensor 1) | *2 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
|
| *3 | PURGE VSV | *4 | OXYGEN SENSOR (Bank 1 Sensor 2) |
| *5 | OXYGEN SENSOR (Bank 2 Sensor 2) | *6 | FUEL PUMP CONTROL ECU |
| *7 | FUEL PUMP ASSEMBLY (for Low Pressure) | *8 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *9 | AIR FUEL RATIO SENSOR (Bank 2 Sensor 1) | *10 | ECM |
| *11 | COOLING FAN ECU | - | - |

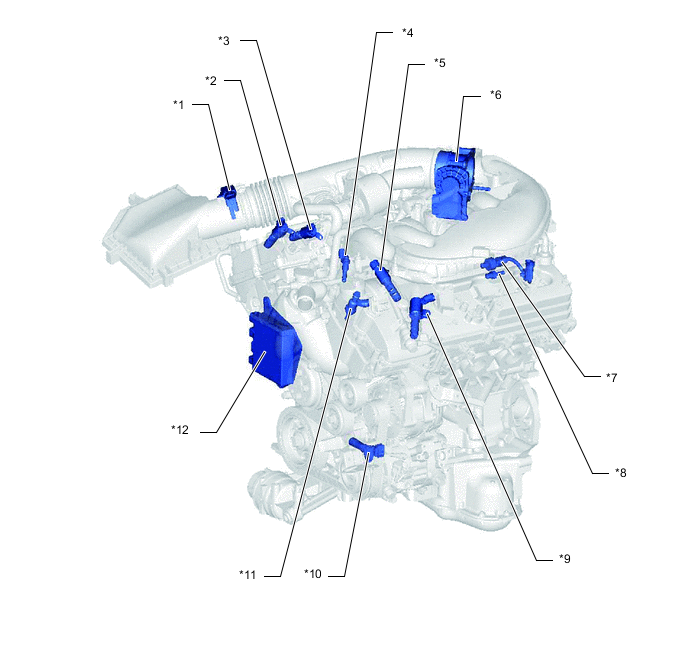

| *1 | MASS AIR FLOW METER SUB-ASSEMBLY
|
*2 | CAM TIMING OIL CONTROL VALVE ASSEMBLY (Bank 1 Exhaust Side) |
| *3 | CAM TIMING OIL CONTROL VALVE ASSEMBLY (Bank 1 Intake Side) | *4 | FUEL INJECTOR ASSEMBLY (for Port Injection) |
| *5 | CAM TIMING OIL CONTROL VALVE ASSEMBLY (Bank 2 Intake Side) | *6 | THROTTLE BODY WITH MOTOR ASSEMBLY
|
| *7 | FUEL PRESSURE SENSOR | *8 | FUEL RELIEF VALVE |
| *9 | CAM TIMING OIL CONTROL VALVE ASSEMBLY (Bank 2 Exhaust Side) | *10 | CRANKSHAFT POSITION SENSOR |
| *11 | FUEL INJECTOR ASSEMBLY (for Direct Injection) | *12 | EDU (INJECTOR DRIVER) |

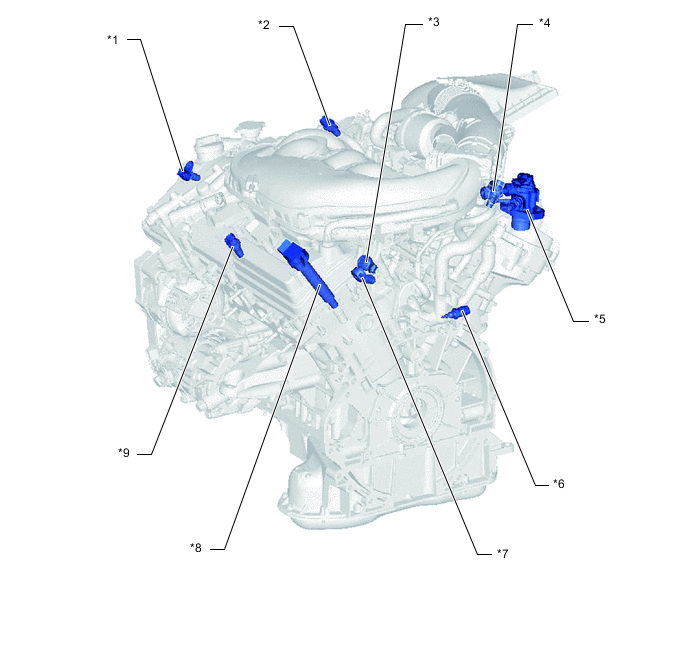

| *1 | VVT SENSOR (Bank 2 Intake) | *2 | VVT SENSOR (Bank 1 Intake) |
| *3 | KNOCK CONTROL SENSOR (Bank 1) | *4 | VVT SENSOR (Bank 1 Exhaust) |
| *5 | FUEL PUMP ASSEMBLY (for High Pressure) | *6 | ENGINE COOLANT TEMPERATURE SENSOR |
| *7 | KNOCK CONTROL SENSOR (Bank 2) | *8 | IGNITION COIL ASSEMBLY |
| *9 | VVT SENSOR (Bank 2 Exhaust) | - | - |

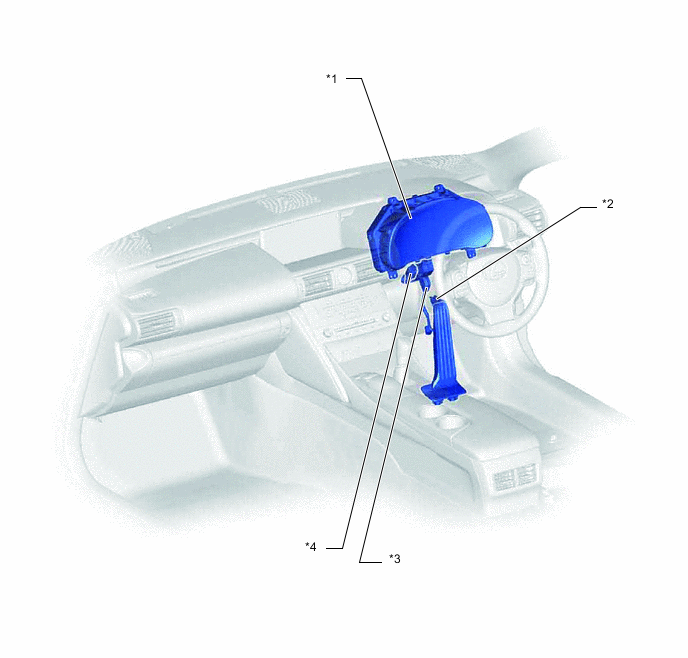

Figure 1. LHD Models
| *1 | COMBINATION METER ASSEMBLY
|
*2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | DLC3 | *4 | ACCELERATOR PEDAL SENSOR ASSEMBLY
|
Figure 2. RHD Models
| *1 | COMBINATION METER ASSEMBLY
|
*2 | DLC3 |
| *3 | ACCELERATOR PEDAL SENSOR ASSEMBLY
|
*4 | STOP LIGHT SWITCH ASSEMBLY |
