СИСТЕМА ВПУСКА


  1. CONSTRUCTION


    1. Air Cleaner Assembly


      1. A paper type air cleaner filter element is used.

      2. An intake air resonator has been provided to reduce air intake noise, improving the quietness further.

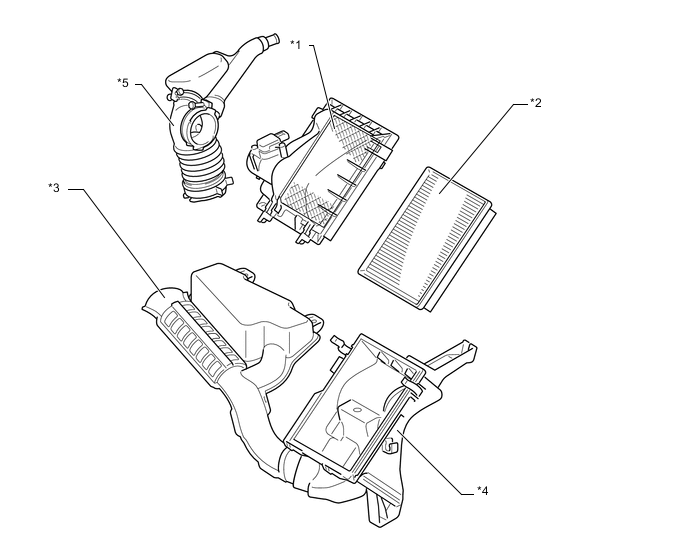

        A004VAYE03
        Text in Illustration
        *1 Air Cleaner Cap Sub-assembly *2 Air Cleaner Filter Element
        *3

        No.1 Air Cleaner Inlet

        -Intake Air Resonator

        		 *4 Air Cleaner Case Sub-assembly
        *5 Air Cleaner Hose - -

    2. Throttle Body Assembly


      1. A cableless type throttle body in which the throttle position sensor and the throttle control motor are integrated is used. It realizes excellent throttle valve control.

      2. The throttle control motor is a DC motor with excellent response and minimal power consumption. The ECM performs duty ratio control of the direction and the amperage of the current that flows to the throttle control motor in order to regulate the throttle valve angle.

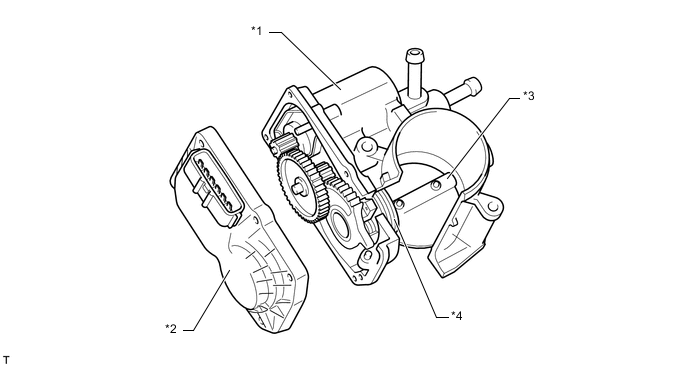

        B0022PZE09
        Text in Illustration
        *1 Throttle Control Motor *2 Throttle Position Sensor
        *3 Throttle Valve *4 Return Spring

    3. Intake Manifold


      1. The intake manifold is made of plastic to reduce the weight and the amount of heat transferred from the cylinder head sub-assembly. As a result, the intake air temperature is reduced and the volumetric efficiency is improved.

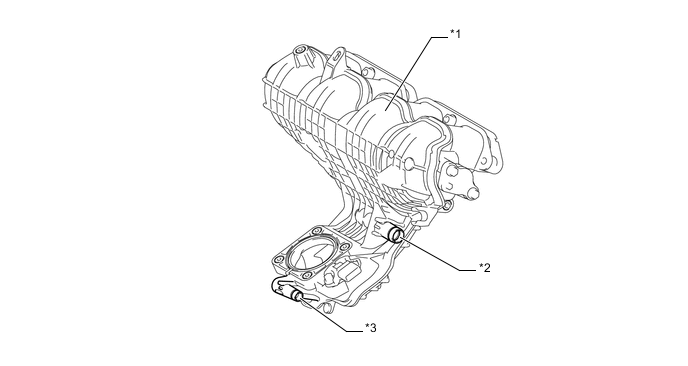

        A004UWWE02
        Text in Illustration
        *1 Intake Manifold *2 PCV Port
        *3 Purge Port - -
