СИСТЕМА SFI

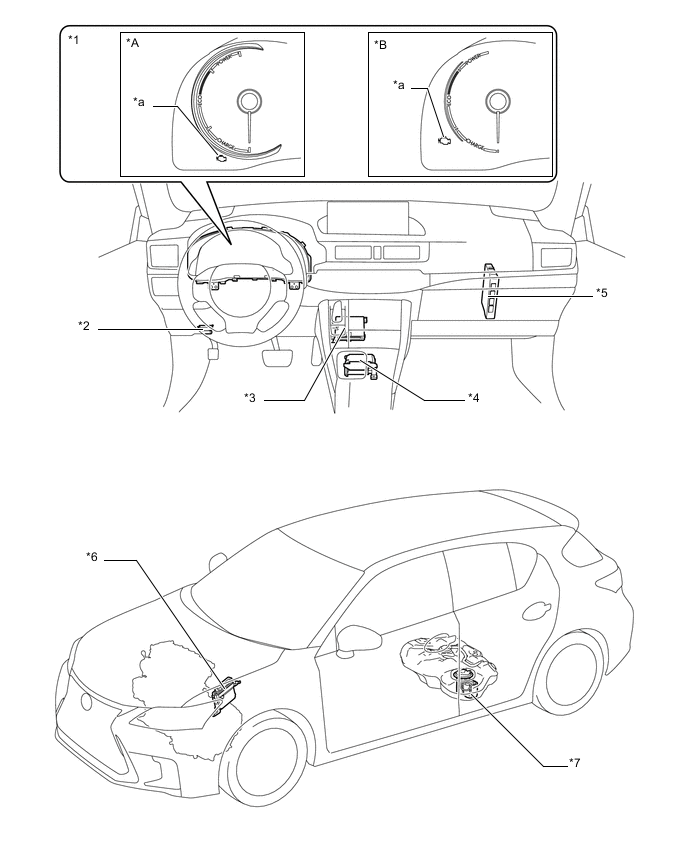

| *A | Models with Monochrome Type Multi-information Display | *B | Models with Color Type Multi-information Display |
| *1 | Combination Meter Assembly | *2 | DLC3 |
| *3 | Air Conditioning Amplifier Assembly | *4 | Airbag Sensor Assembly |
| *5 | Power Management Control ECU | *6 | ECM |
| *7 | Fuel Suction with Pump and Gauge Tube Assembly | - | - |
| *a | Malfunction Indicator Lamp | - | - |

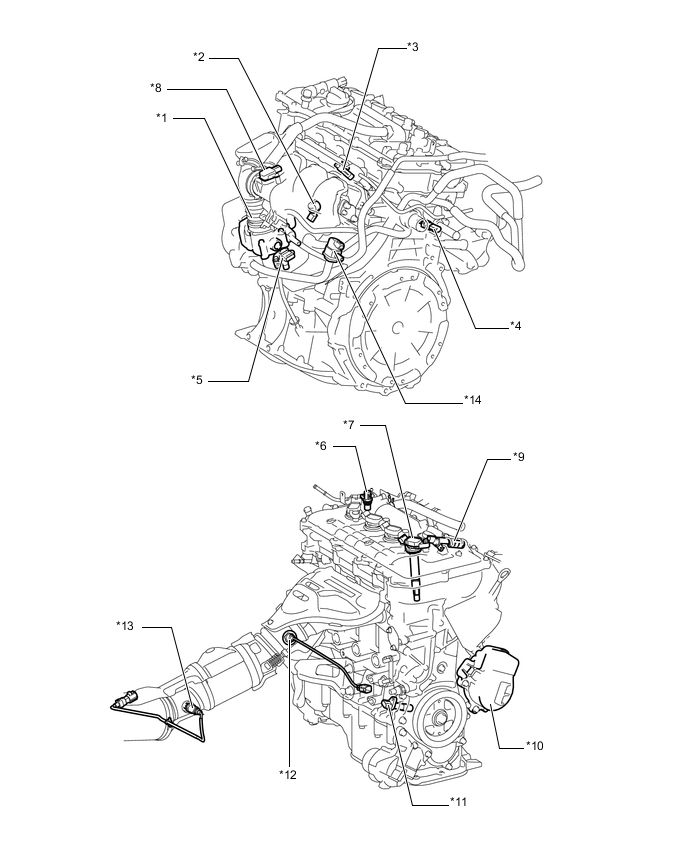

| *1 | Throttle Body Assembly
|
*2 | Knock Control Sensor |
| *3 | Fuel Injector Assembly | *4 | Engine Coolant Temperature Sensor |
| *5 | Manifold Absolute Pressure Sensor | *6 | Camshaft Position Sensor |
| *7 | Ignition Coil Assembly | *8 | Mass Air Flow Meter
|
| *9 | Camshaft Timing Oil Control Valve | *10 | Engine Water Pump Assembly |
| *11 | Crankshaft Position Sensor | *12 | Air Fuel Ratio Sensor |
| *13 | Heated Oxygen Sensor | *14 | Purge VSV |
