LIGHTING SYSTEM

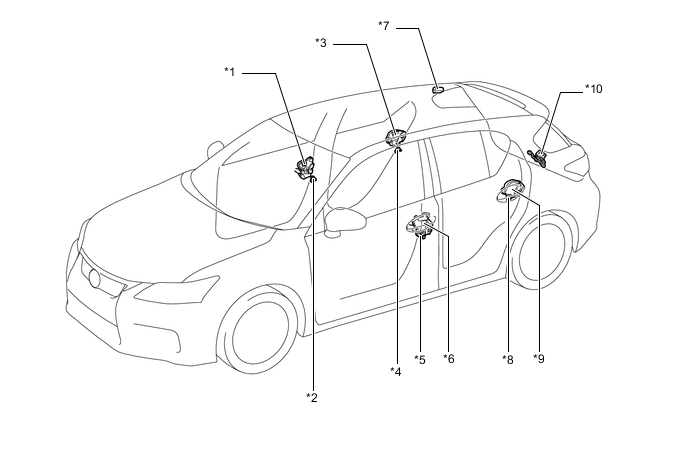

| *1 | Front Door Lock Assembly RH - Door Unlock Detection Switch |
*2 | Courtesy Switch (Front RH) |
| *3 | Rear Door Lock Assembly RH - Door Unlock Detection Switch |
*4 | Courtesy Switch (Rear RH) |
| *5 | Courtesy Switch (Front LH) | *6 | Front Door Lock Assembly LH - Door Unlock Detection Switch |
| *7 | Door Control Receiver | *8 | Courtesy Switch (Rear LH) |
| *9 | Rear Door Lock Assembly LH - Door Unlock Detection Switch |
*10 | Back Door Lock Assembly - Courtesy Switch (Back Door) |

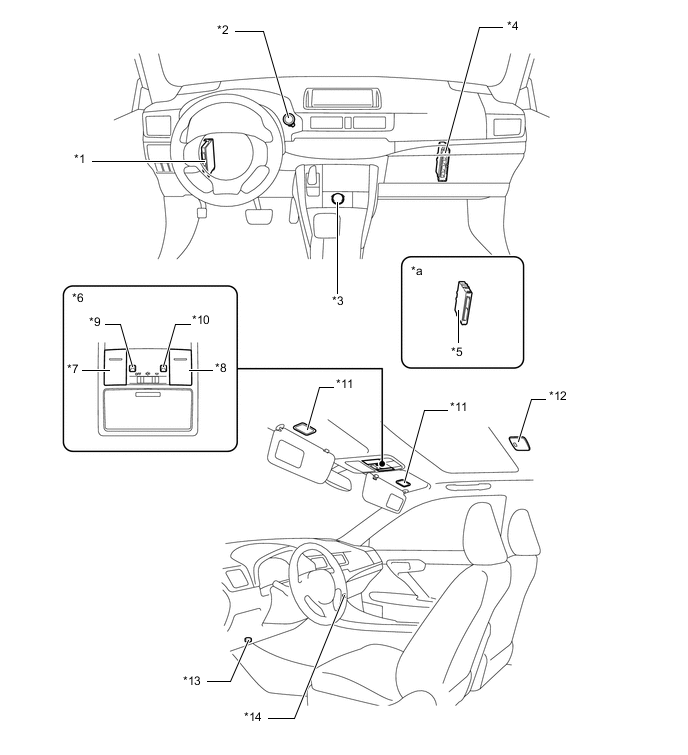

| *1 | Main Body ECU (Multiplex Network Body ECU) | *2 | Power Switch - Power Switch Illumination |
| *3 | Drive Mode Select | *4 | Power Management Control ECU |
| *5 | Certification ECU (Smart Key ECU Assembly) | *6 | Map Light Assembly |
| *7 | Front Interior Light LH | *8 | Front Interior Light RH |
| *9 | Center Console Spot Light (Red) | *10 | Center Console Spot Light (Blue) |
| *11 | Vanity Light | *12 | Rear Interior Light |
| *13 | Footwell Light RH | *14 | Footwell Light LH |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |

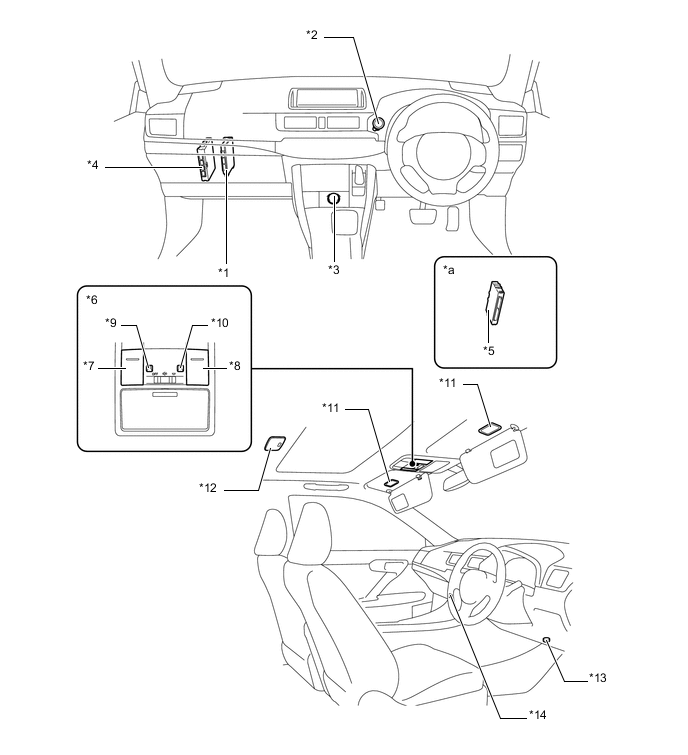

| *1 | Main Body ECU (Multiplex Network Body ECU) | *2 | Power Switch - Power Switch Illumination |
| *3 | Drive Mode Select | *4 | Power Management Control ECU |
| *5 | Certification ECU (Smart Key ECU Assembly) | *6 | Map Light Assembly |
| *7 | Front Interior Light LH | *8 | Front Interior Light LH |
| *9 | Center Console Spot Light (Red) | *10 | Center Console Spot Light (Blue) |
| *11 | Vanity Light | *12 | Rear Interior Light |
| *13 | Footwell Light RH | *14 | Footwell Light LH |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
