PARKING ASSIST MONITOR SYSTEM
| *A | LHD Models | *B | RHD Models |

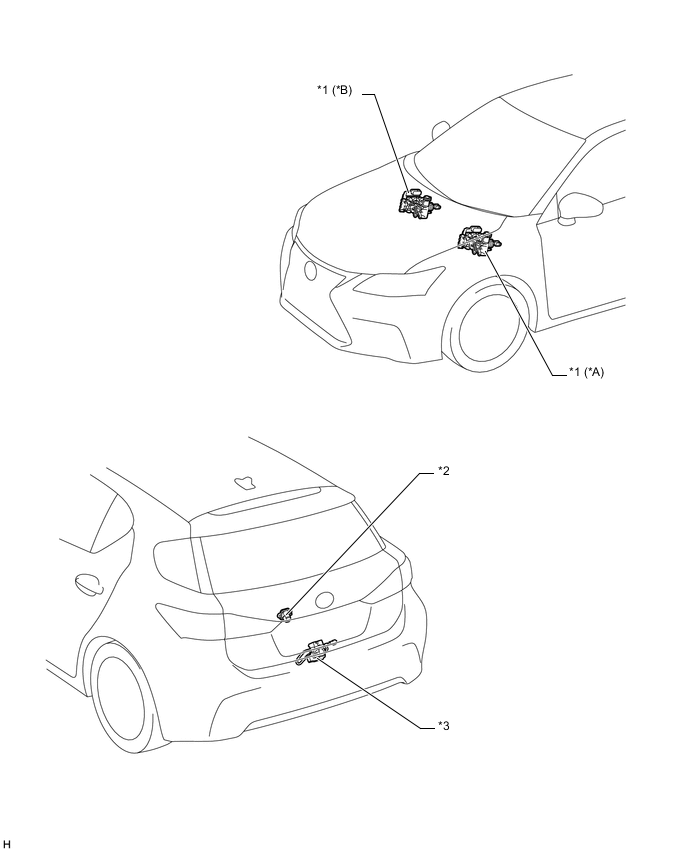

| *1 | Brake Booster with Master Cylinder Assembly
|
*2 | Rear Television Camera Assembly |
| *3 | Back Door Lock Assembly | - | - |
Figure 1. LHD Models

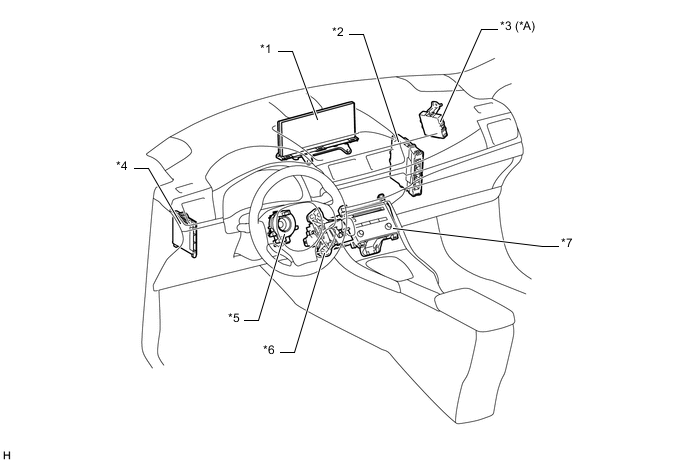

| *A | Models with LEXUS Parking Assist-sensor System | - | - |
| *1 | Multi-display Assembly | *2 | Power Management Control ECU |
| *3 | Clearance Warning ECU Assembly | *4 | Main Body ECU (Multiplex Network Body ECU) |
| *5 | Spiral Cable with Sensor Sub-assembly
|
*6 | Transmission Instrument Panel Shift Assembly |
| *7 | Radio Receiver Assembly | - | - |
Figure 2. RHD Models

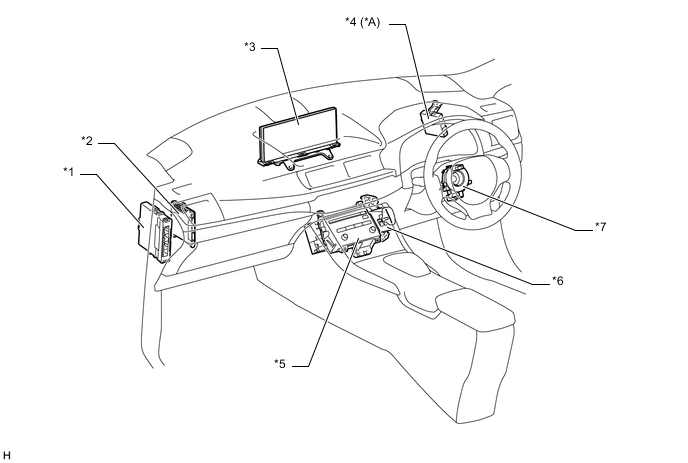

| *A | Models with LEXUS Parking Assist-sensor System | - | - |
| *1 | Power Management Control ECU | *2 | Main Body ECU (Multiplex Network Body ECU) |
| *3 | Multi-display Assembly | *4 | Clearance Warning ECU Assembly |
| *5 | Radio Receiver Assembly | *6 | Transmission Instrument Panel Shift Assembly |
| *7 | Spiral Cable with Sensor Sub-assembly
|
- | - |
