PARKING ASSIST MONITOR SYSTEM
| *A | LHD Models | *B | RHD Models |
| *1 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
*2 | Rear Television Camera Assembly |
| *3 | Back Door Lock Assembly | - | - |

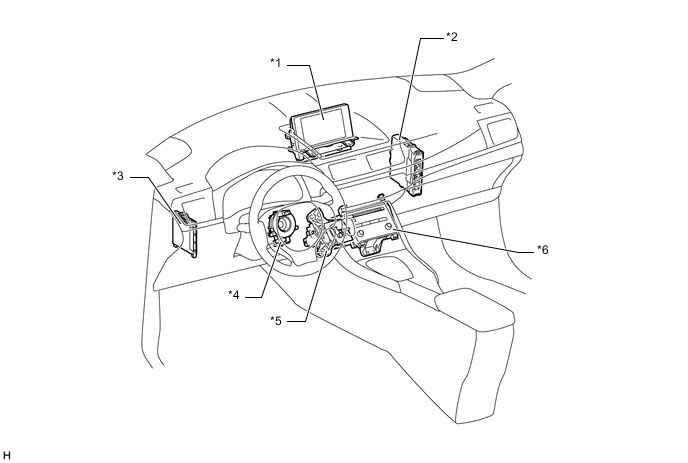

| *1 | Multi-display | *2 | Power Management Control ECU |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Spiral Cable with Sensor Sub-assembly - Steering Angle Sensor |
| *5 | Transmission Instrument Panel Shift Assembly | *6 | Radio Receiver Assembly |
| *1 | Power Management Control ECU | *2 | Main Body ECU (Multiplex Network Body ECU) |
| *3 | Multi-display | *4 | Radio Receiver Assembly |
| *5 | Transmission Instrument Panel Shift Assembly | *6 | Spiral Cable with Sensor Sub-assembly - Steering Angle Sensor |
