AUDIO AND VISUAL SYSTEM

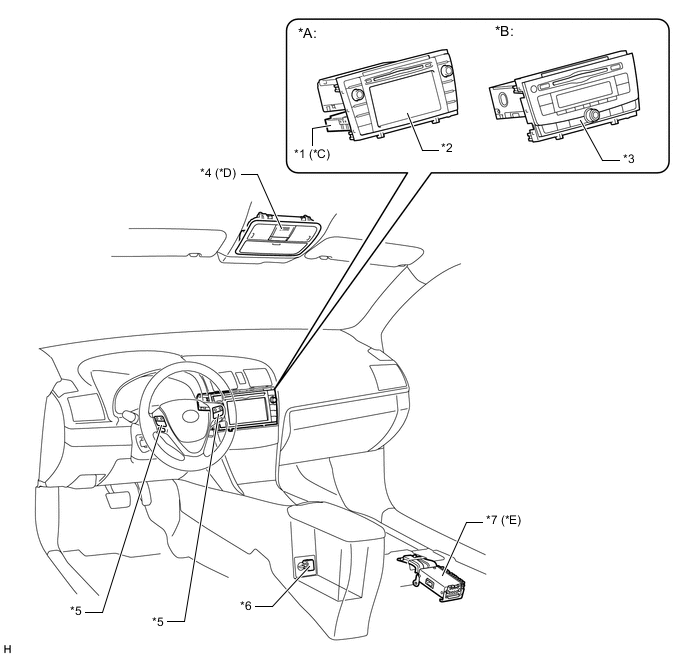

| *A | Models with Display Audio System or Navigation System | *B | Models with Base Audio System |
| *C | Models with Extension Box (Navigation ECU) | *D | Models with Bluetooth Hands-free System |
| *E | Models with 11-speaker System | - | - |
| *1 | Extension Box (Navigation ECU) | *2 | Radio and Display Receiver Assembly |
| *3 | Radio Receiver Assembly | *4 | Map Light Assembly - Telephone Microphone Assembly |
| *5 | Steering Pad Switch Assembly | *6 | No. 1 Stereo Jack Adapter Assembly |
| *7 | Stereo Component Amplifier Assembly | - | - |

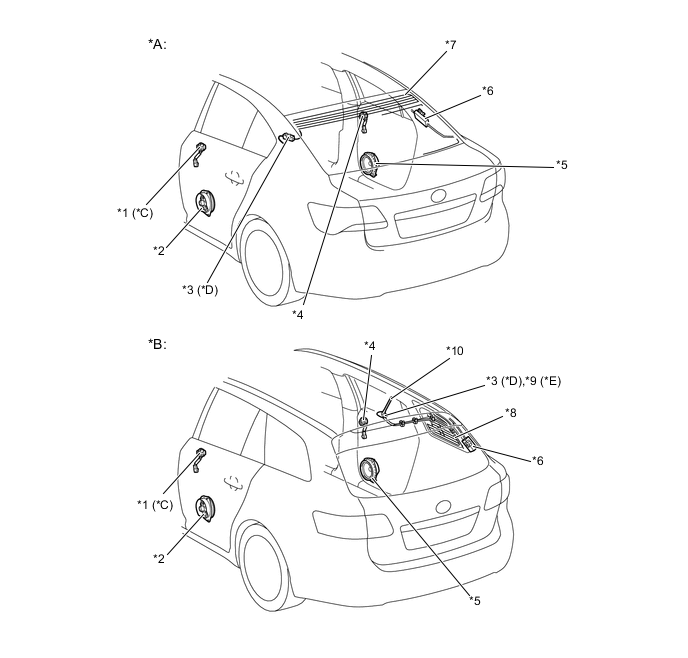

| *A | Sedan Models | *B | Wagon Models |
| *C | Models with 11-speaker System | *D | Models with Digital Audio Broadcast (DAB) |
| *E | Models without Digital Audio Broadcast (DAB) | - | - |
| *1 | Rear No. 2 Speaker Assembly LH | *2 | Rear No. 1 Speaker Assembly LH |
| *3 | Digital Audio Broadcasting Antenna Assembly | *4 | Rear No. 2 Speaker Assembly RH |
| *5 | Rear No. 1 Speaker Assembly RH | *6 | No. 1 Amplifier Antenna Assembly |
| *7 | Back Window Glass (Window Glass Antenna Wire) | *8 | Quarter Window Assembly RH (Window Glass Antenna Wire) |
| *9 | No. 2 Amplifier Antenna Assembly | *10 | Roof Antenna Pole Sub-assembly |

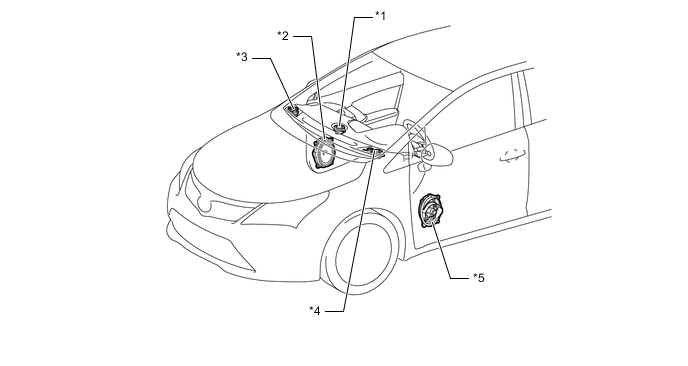

| *1 | Front No. 3 Speaker Assembly | *2 | Front No. 1 Speaker Assembly RH |
| *3 | Front No. 2 Speaker Assembly RH | *4 | Front No. 2 Speaker Assembly LH |
| *5 | Front No. 1 Speaker Assembly LH | - | - |

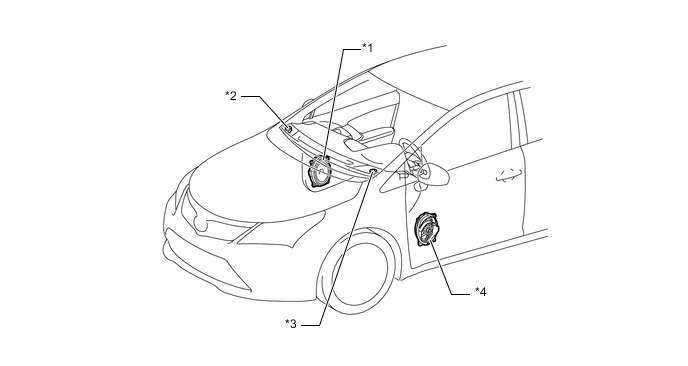

| *1 | Front No. 1 Speaker Assembly RH | *2 | Front No. 2 Speaker Assembly RH |
| *3 | Front No. 2 Speaker Assembly LH | *4 | Front No. 1 Speaker Assembly LH |
