MONITOR SYSTEM


  1. FUNCTION OF MAIN COMPONENTS

    Component Function
    Rear Television Camera Assembly Captures the view behind the vehicle and transmits the image to the radio and display receiver assembly.
    Radio and Display Receiver Assembly

    • Receives signals from the park/neutral position switch assembly*1 or back-up light switch assembly*2 and turns the rear television camera assembly on and off.

    • Displays the image transmitted by the rear television camera assembly on the screen.
    Park/Neutral Position Switch Assembly*1 Transmits the R position signal to the radio and display receiver assembly.
    Back-up Light Switch Assembly*2 Transmits the on/off signal of the back-up light switch assembly to the radio and display receiver assembly.

    • *1: Models with automatic transaxle or CVT

    • *2: Models with manual transaxle

  2. OPERATING CONDITION


    1. This system operates when both the following conditions have been met:


      • The ignition switch is ON.

      • The shift lever is moved to R.

  3. FUNCTION

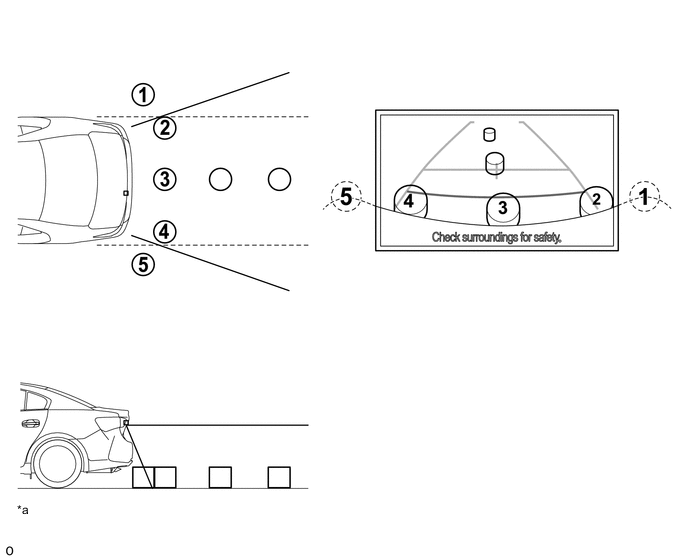

    1. Area Displayed on Screen


      1. Objects on the right of the vehicle appear on the right side of the display panel, and objects on the left of the vehicle appear on the left side of the display panel.

      2. The rear television camera assembly uses a wide-angle lens. The perceived distance from images that appear on the screen differs from the actual distance.

        A0051H4E02
        Text in Illustration
        *a The illustrations shown are examples only. The illustrations may differ from the actual vehicle screens. - -

        Tech Tips


        • The area displayed on the screen may vary in accordance with vehicle status or road conditions.

        • The area covered by the rear television camera assembly is limited. The rear television camera assembly does not show objects close to either corner of the bumper or show the area under the bumper.

    2. Warning Message


      1. A warning message appears at the bottom of the screen under the following condition.

        Message Appearing at Bottom of Screen
        Warning Message Condition
        Check surroundings for safety. This message always appears during system operation.

  4. CONSTRUCTION

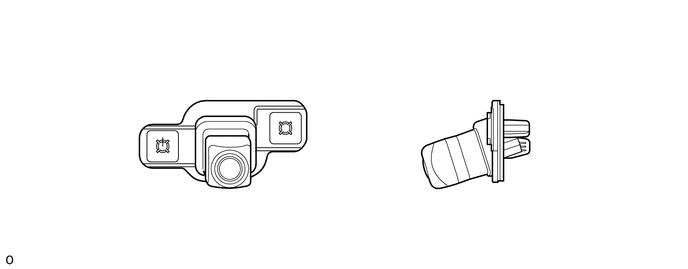

    1. Rear Television Camera Assembly


      1. The rear television camera assembly consists of a wide-angle lens and a Complementary Metal Oxide Semiconductor (CMOS).

      2. An image captured by the rear view television camera lens is converted into electrical signals in accordance with the light intensity by using the CMOS image element, and the signals are then output to the radio and display receiver assembly.

      3. The image output from the rear television camera assembly is reversed to match the rear view seen from the inside rear view mirror. Therefore, the view actually seen is displayed on the screen in the horizontal reverse.

        A0051OG

  5. FAIL-SAFE


    1. The table below indicates fail-safe operation when a malfunction is detected:

      Malfunctioning Part Detection Item Function
      Rear Television Camera Assembly Rear television camera assembly malfunction signal is detected. System stops signal reception and displays a dark screen.
