DRIVE SHAFT SYSTEM GENERAL


  1. OUTLINE


    1. The front drive shaft assembly for all models uses a tripod type Constant Velocity (CV) joint on the differential side, and a Rzeppa type CV joint on the wheel side.

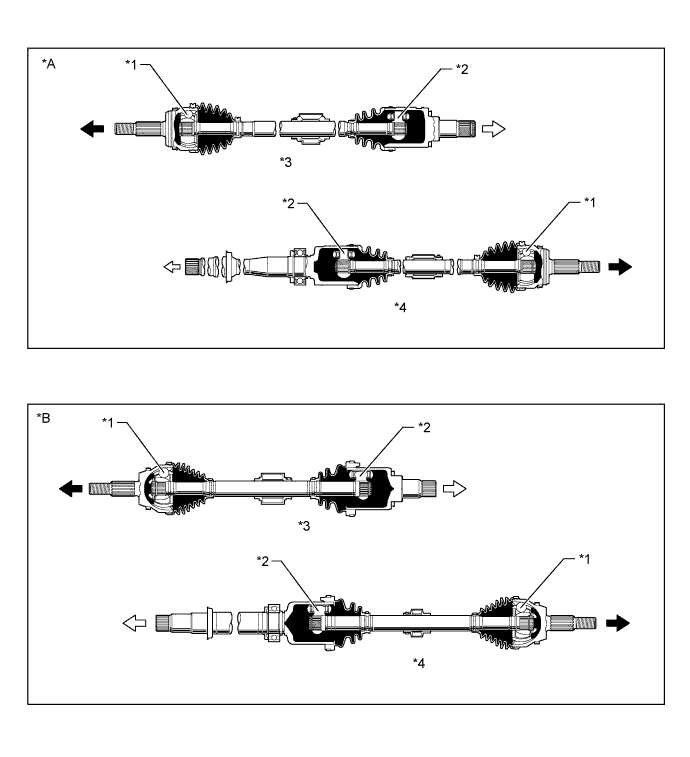

      A01HLVHE01
      Text in Illustration
      *A Models with 2AR-FE Engine *B Models with 2GR-FE Engine
      *1 Rzeppa Type CV Joint *2 Tripod Type CV Joint
      *3 Front Drive Shaft Assembly LH *4 Front Drive Shaft Assembly RH
      A01HM7O Wheel Side A01HLRL Differential Side
