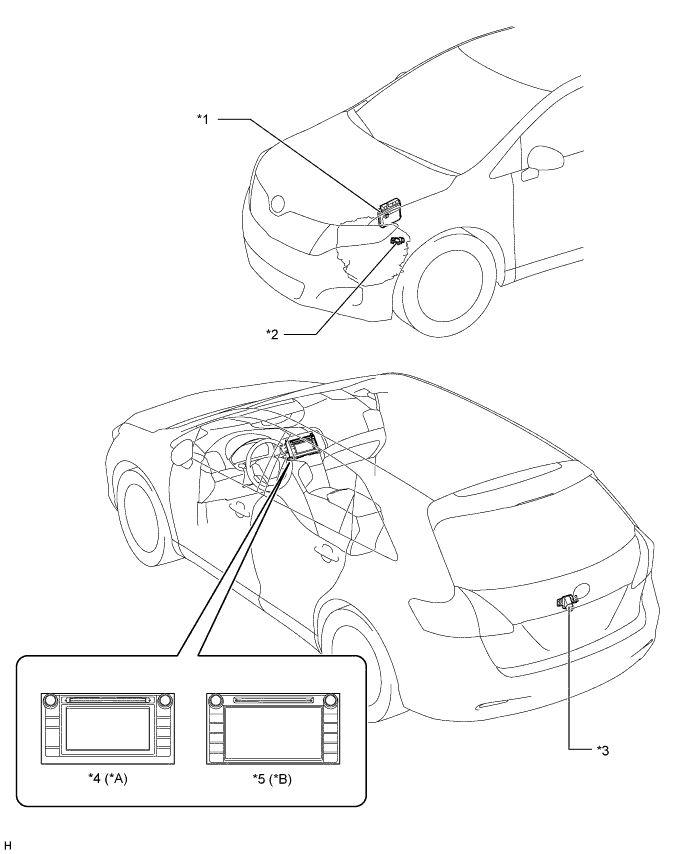

MONITOR SYSTEM PARTS LOCATION
| *A | Models with Touch Screen System or Display Audio System | *B | Models with Navigation System |
| *1 | ECM | *2 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *3 | REAR TELEVISION CAMERA ASSEMBLY | *4 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *5 | NAVIGATION RECEIVER ASSEMBLY | - | - |
