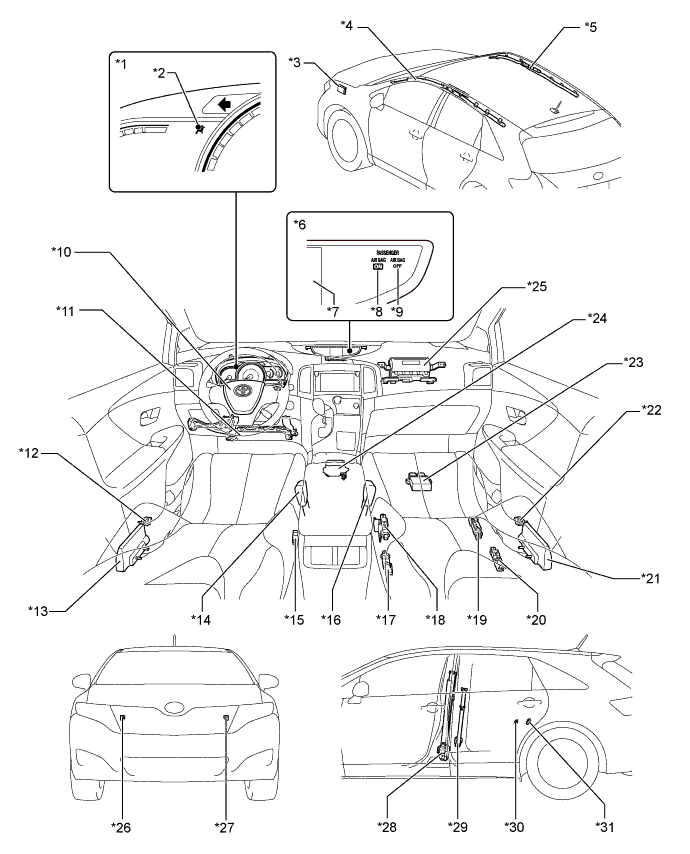

AIRBAG SYSTEM PARTS LOCATION
| *1 | COMBINATION METER ASSEMBLY | *2 | SRS WARNING LIGHT |
| *3 | ECM | *4 | CURTAIN SHIELD AIRBAG ASSEMBLY LH - CURTAIN SHIELD SQUIB LH |
| *5 | CURTAIN SHIELD AIRBAG ASSEMBLY RH - CURTAIN SHIELD SQUIB RH |
*6 | ACCESSORY METER ASSEMBLY |
| *7 | MULTI-INFORMATION DISPLAY | *8 | AIRBAG ON INDICATOR LIGHT |
| *9 | AIRBAG OFF INDICATOR LIGHT | *10 | HORN BUTTON ASSEMBLY - DRIVER SIDE SQUIB |
| *11 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY - DRIVER KNEE AIRBAG SQUIB |
*12 | SIDE DOOR AIRBAG SENSOR LH |
| *13 | FRONT SEAT AIRBAG ASSEMBLY LH - FRONT SIDE AIRBAG SQUIB LH |
*14 | DRIVER SEAT BELT BUCKLE SWITCH (FRONT SEAT INNER BELT ASSEMBLY LH) |
| *15 | SEAT POSITION AIRBAG SENSOR | *16 | FRONT PASSENGER SEAT BELT BUCKLE SWITCH (FRONT SEAT INNER BELT ASSEMBLY RH) |
| *17 | OCCUPANT DETECTION SENSOR (REAR LH) | *18 | OCCUPANT DETECTION SENSOR (FRONT LH) |
| *19 | OCCUPANT DETECTION SENSOR (FRONT RH) | *20 | OCCUPANT DETECTION SENSOR (REAR RH) |
| *21 | FRONT SEAT AIRBAG ASSEMBLY RH - FRONT SIDE AIRBAG SQUIB RH |
*22 | SIDE DOOR AIRBAG SENSOR RH |
| *23 | OCCUPANT DETECTION ECU | *24 | AIRBAG SENSOR ASSEMBLY |
| *25 | INSTRUMENT PANEL PASSENGER AIRBAG WITHOUT DOOR ASSEMBLY - FRONT PASSENGER SIDE SQUIB - VARIABLE VENT HOLE SQUIB |
*26 | FRONT AIRBAG SENSOR RH |
| *27 | FRONT AIRBAG SENSOR LH | *28 | FRONT SEAT OUTER BELT ASSEMBLY LH - FRONT PRETENSIONER SQUIB LH |
| *29 | FRONT SEAT OUTER BELT ASSEMBLY RH - FRONT PRETENSIONER SQUIB RH |
*30 | SIDE NO. 2 AIRBAG SENSOR ASSEMBLY LH |
| *31 | SIDE NO. 2 AIRBAG SENSOR ASSEMBLY RH | - | - |
