REAR SUNSHADE SYSTEM PARTS LOCATION

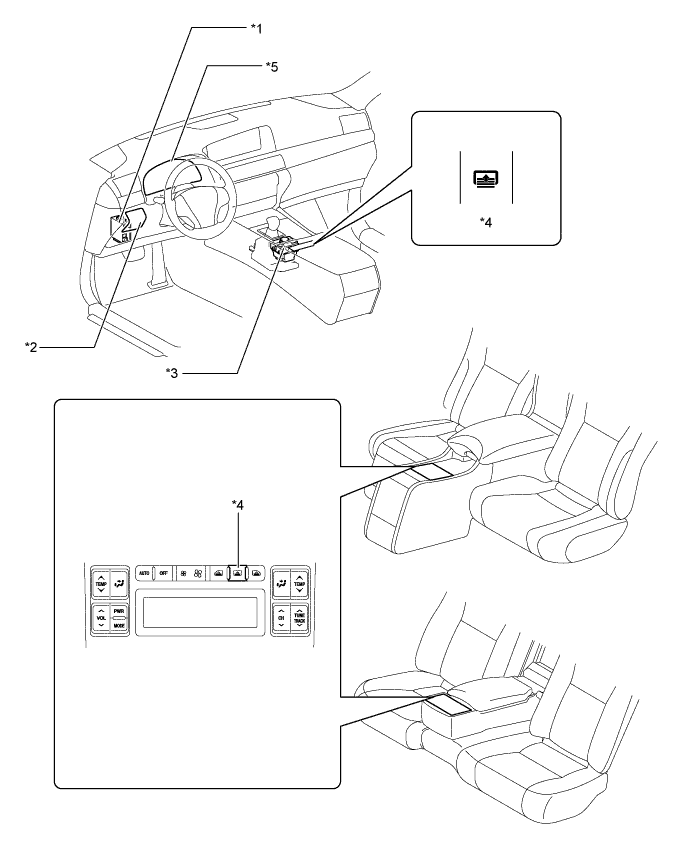

| *1 | Main Body ECU (Driver Side Junction Block) | *2 | Outer Mirror Switch Assembly |
| *3 | Combination Switch Assembly | *4 | Rear Sunshade Switch |
| *5 | Combination Meter Assembly | - | - |

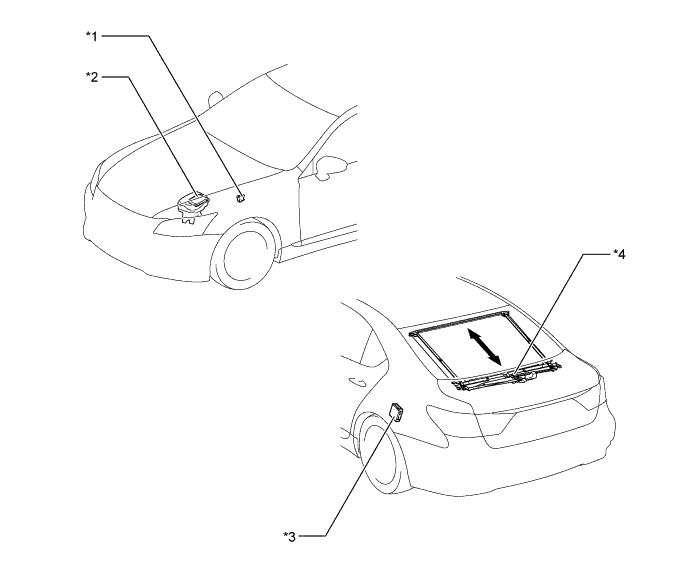

| *1 | Shift Lever Position Sensor | *2 | Hybrid Vehicle Control ECU |
| *3 | Rear J/B ECU (Luggage Room Junction Block Assembly) | *4 | Rear Sunshade - Rear Sunshade Motor - Limit Switch |
