PRE-CRASH SAFETY SYSTEM (w/ Driver Monitor Camera) PARTS LOCATION

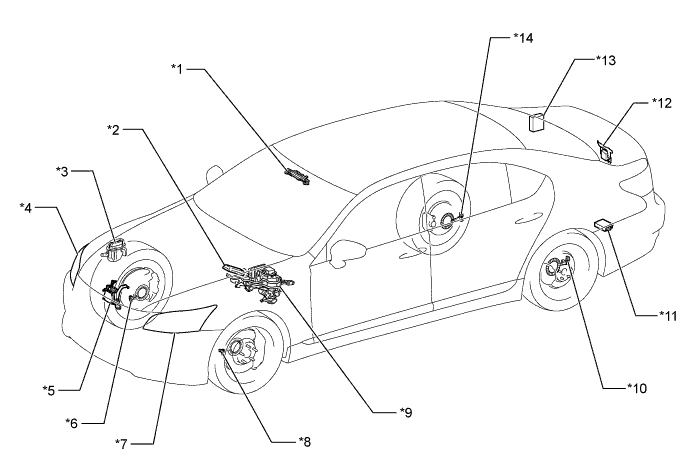

| *1 | Object Recognition Camera | *2 | Skid Control ECU Assembly |
| *3 | Front Controller (Multiplex Network Front Light ECU) | *4 | Headlight Assembly RH - Near-infrared Projector |
| *5 | Millimeter Wave Radar Sensor Assembly | *6 | Front Speed Sensor RH |
| *7 | Headlight Assembly LH - Near-infrared Projector |
*8 | Front Speed Sensor LH |
| *9 | Brake Actuator Assembly | *10 | Rear Speed Sensor LH |
| *11 | Seat Belt Control ECU | *12 | Rear Millimeter Wave Radar Sensor Assembly |
| *13 | Object Recognition ECU | *14 | Rear Speed Sensor RH |

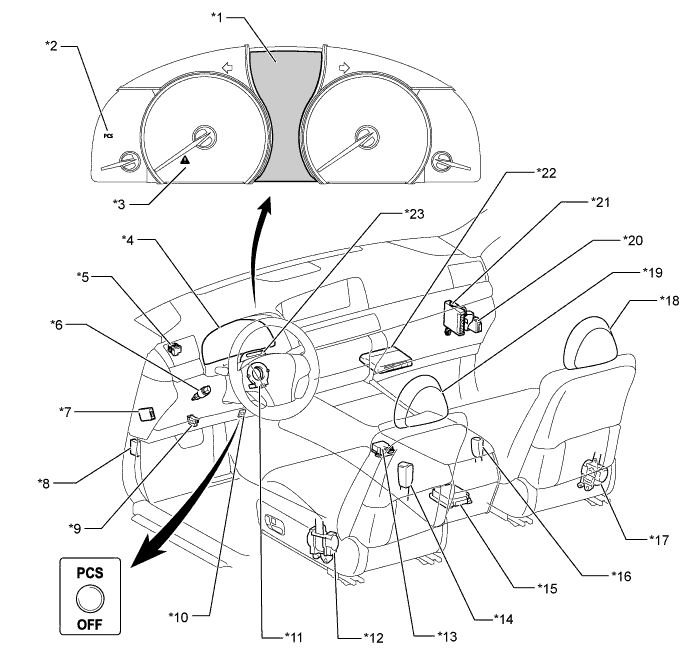

| *1 | Multi-information Display | *2 | PCS Warning Light |
| *3 | Master Warning Light | *4 | Combination Meter Assembly |
| *5 | Skid Control Buzzer Assembly | *6 | Stop Light Switch Assembly |
| *7 | Driver Monitor ECU Assembly | *8 | Driving Support ECU Assembly |
| *9 | DLC3 | *10 | Precrash System Cancel Switch Assembly |
| *11 | Steering Sensor | *12 | Front Seat Outer Belt Assembly LH - Seat Belt Motor |
| *13 | Yawrate Sensor | *14 | Front Seat Inner Belt Assembly LH - Buckle Switch |
| *15 | Center Airbag Sensor Assembly | *16 | Front Seat Inner Belt Assembly RH - Buckle Switch |
| *17 | Front Seat Outer Belt Assembly RH - Seat Belt Motor |
*18 | Pre-crash Intelligent Headrest RH - Pre-crash Intelligent Headrest ECU - Motor - Head Position Detection Sensor |
| *19 | Pre-crash Intelligent Headrest LH - Pre-crash Intelligent Headrest ECU - Motor - Head Position Detection Sensor |
*20 | Network Gateway ECU |
| *21 | Suspension Control ECU | *22 | Steering Control ECU |
| *23 | Driver Monitor Camera | - | - |
