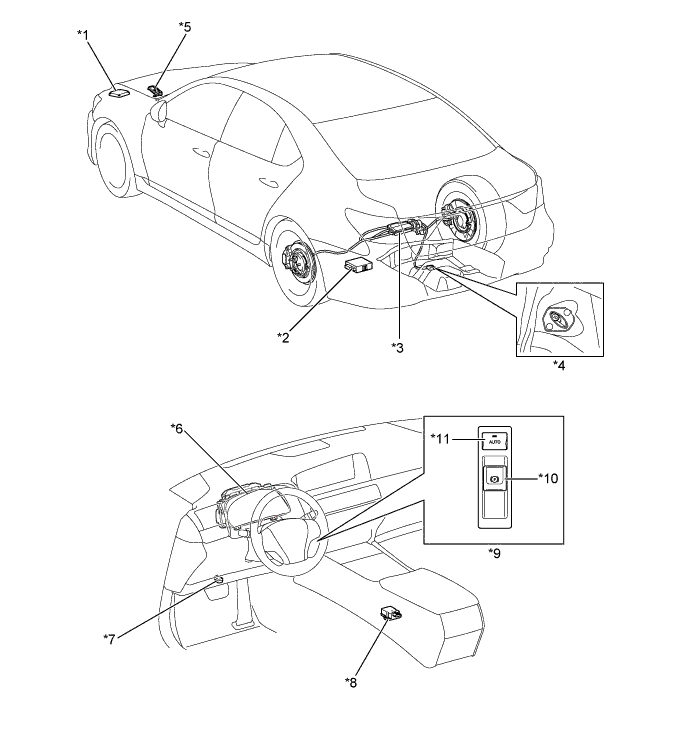

ELECTRIC PARKING BRAKE SYSTEM PARTS LOCATION
| *1 | Hybrid Vehicle Control ECU | *2 | parking Brake ECU Assembly |
| *3 | Parking Brake with Bracket Actuator Assembly | *4 | Emergency Release Cable |
| *5 | Skid Control ECU Assembly | *6 | Combination Meter Assembly |
| *7 | DLC3 | *8 | Yawrate Sensor (with Built-in Deceleration Sensor) |
| *9 | Electric Parking Brake Switch Assembly | *10 | Manual Switch |
| *11 | Auto Switch - Indicator Light |
- | - |
