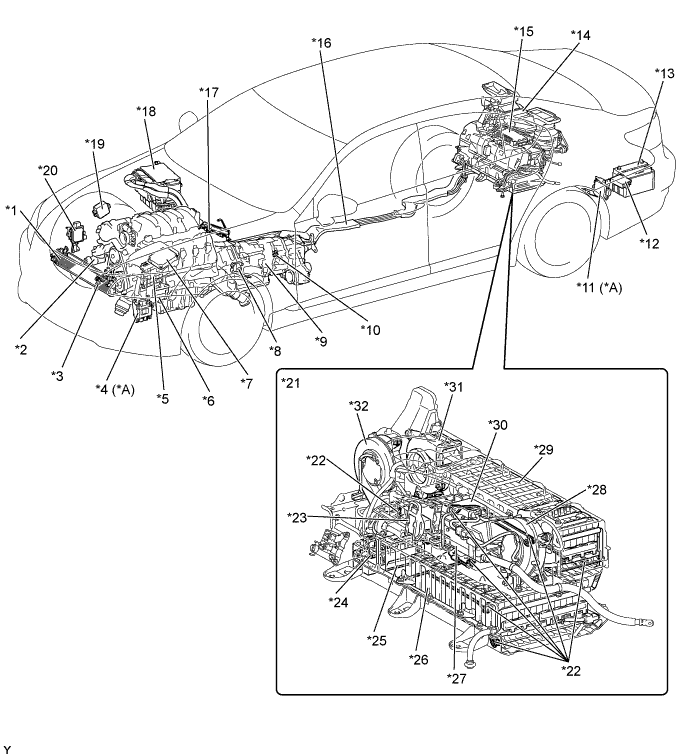

HYBRID CONTROL SYSTEM PARTS LOCATION
| *A | Models with Active Stabilizer Suspension System | - | - |
| *1 | Inverter Radiator | *2 | Heater Water Pump Assembly |
| *3 | Inverter Water Pump with Motor Assembly | *4 | Front Active Stabilizer Control ECU |
| *5 | ECM | *6 | Compressor with Motor Assembly |
| *7 | Hybrid Vehicle Control ECU | *8 | Shift Lever Position Sensor |
| *9 | L110F Hybrid Transmission (Hybrid Vehicle Transmission Assembly) - Motor Generator 1 (MG1) - Motor Generator 2 (MG2) - Compound Gear Unit - Valve Body Unit |
*10 | Transmission Revolution Sensor |
| *11 | Rear Active Stabilizer Control ECU | *12 | Rear J/B ECU (Luggage Room Junction Block Assembly) |
| *13 | Auxiliary Battery - Auxiliary Battery Temperature Sensor |
*14 | Rear Cooling Unit Assembly |
| *15 | Power Steering Converter Assembly | *16 | Power Cable |
| *17 | Skid Control ECU Assembly | *18 | Inverter with Converter Assembly - Inverter - Boost Converter - Motor Generator ECU (MG ECU) - Inverter Current Sensors - Inverter Temperature Sensors - Atmospheric Pressure Sensor |
| *19 | Power Steering ECU Assembly | *20 | Oil Pump Motor Controller |
| *21 | HV Battery Assembly | *22 | Hybrid Battery Thermistor |
| *23 | Service Plug Grip | *24 | Hybrid Battery Junction Block Assembly - SMRB - SMRG - HV Battery Current Sensor |
| *25 | Battery Voltage Sensor | *26 | Lower Battery Module Group |
| *27 | Hybrid Vehicle Converter - SMRP - Precharge Resistor |
*28 | Converter Cooling Blower |
| *29 | Upper Battery Module Group | *30 | Converter Cooling Blower Controller |
| *31 | Battery Cooling Blower Assembly (for Upper Side) | *32 | Battery Cooling Blower Assembly (for Lower Side) |

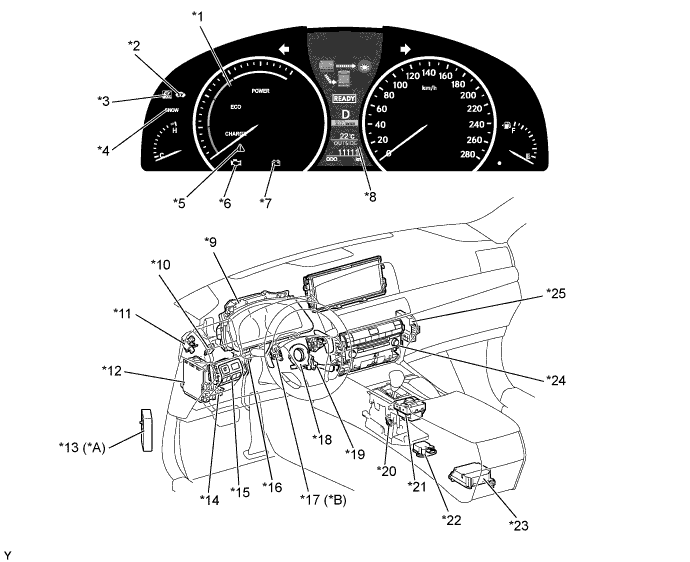

| *A | Models with Dynamic Radar Cruise Control System | *B | Models with Shift Paddle |
| *1 | Hybrid System Indicator | *2 | EV Drive Indicator Light |
| *3 | EV Drive Mode Indicator Light | *4 | SNOW Mode Indicator Light |
| *5 | Master Warning Light | *6 | MIL |
| *7 | Charge Warning Light | *8 | Multi-information Display |
| *9 | Combination Meter Assembly - Meter Panel Illumination - Multi Buzzer |
*10 | Stop Light Switch Assembly |
| *11 | Brake Pedal Stroke Sensor Assembly | *12 | Main Body ECU (Driver Side Junction Block) |
| *13 | Driving Support ECU Assembly | *14 | DLC3 |
| *15 | Driver Side Switch Module (Outer Mirror Switch Assembly) | *16 | Accelerator Pedal Position Sensor |
| *17 | Shift Paddle Switch (Transmission Shift Switch Assembly) | *18 | Steering Sensor |
| *19 | Cruise Control Main Switch | *20 | Transmission Control Switch |
| *21 | Combination Switch Assembly - EV Drive Mode Switch - Drive Mode Select - SNOW Mode Switch |
*22 | Yawrate Sensor |
| *23 | Center Airbag Sensor Assembly | *24 | Multi-media Module Receiver Assembly |
| *25 | Air Conditioning Amplifier Assembly | - | - |
