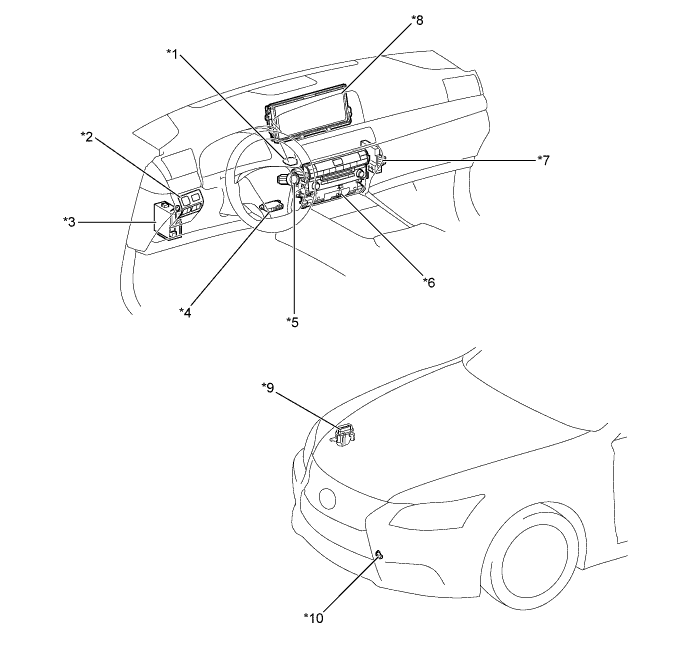

HEATED STEERING WHEEL SYSTEM PARTS LOCATION
| *1 | Cooler (Room Temp. Sensor) Thermistor | *2 | Driver Side Switch Module (Outer Mirror Switch Assembly) - Steering Heater Switch |
| *3 | Main Body ECU (Driver Side Junction Block) | *4 | Steering Wheel Heater Control Assembly |
| *5 | Engine Switch (Push Start Switch) | *6 | Multi-media Module Receiver Assembly |
| *7 | Air Conditioning Amplifier Assembly | *8 | Multi Display (Accessory Meter Assembly) |
| *9 | Front Controller (Multiplex Front Light ECU) | *10 | Cooler (Ambient Temp. Sensor) Thermistor |
