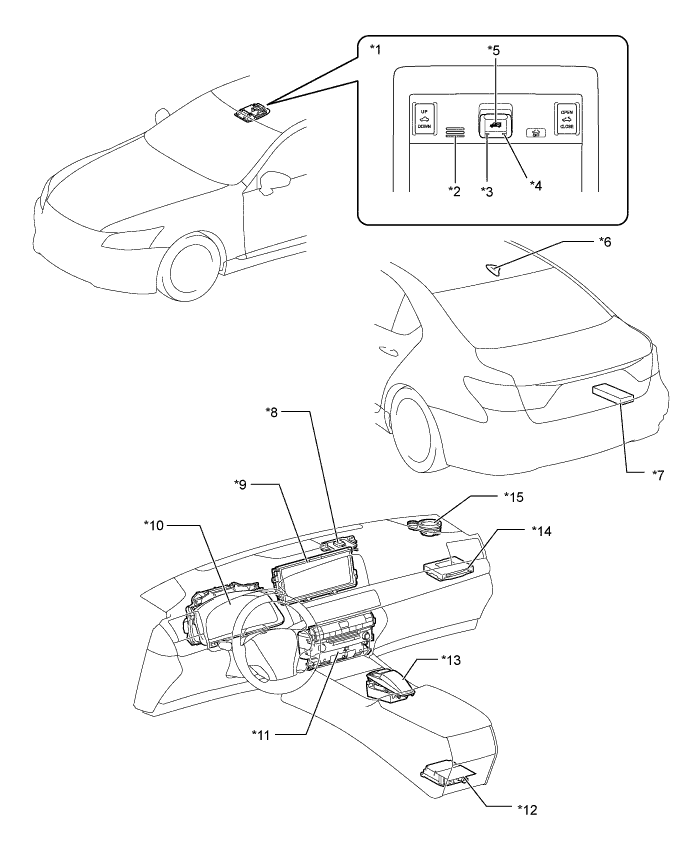

TELEMATICS SYSTEM PARTS LOCATION
| *1 | Map Light Assembly | *2 | Telephone Microphone Assembly |
| *3 | Indicator Light (Green) | *4 | Indicator Light (Red) |
| *5 | Telephone Switch Assembly | *6 | Telephone Antenna Assembly |
| *7 | Stereo Component Amplifier Assembly | *8 | Navigation Antenna Assembly |
| *9 | Multi-display (Accessory Meter Assembly) | *10 | Combination Meter Assembly |
| *11 | Multi-media Module Receiver Assembly | *12 | Center Airbag Sensor Assembly |
| *13 | Remote Touch | *14 | Telematics Transceiver (DCM) |
| *15 | Front No. 2 Speaker Assembly RH | - | - |
