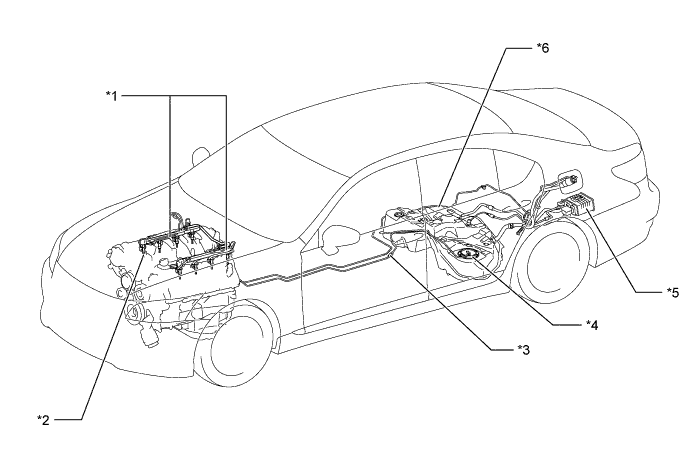

FUEL SYSTEM PARTS LOCATION
| *1 | Fuel Delivery Pipe Sub-assembly | *2 | Fuel Injector Assembly |
| *3 | Quick Connector | *4 | Fuel Pump |
| *5 | Charcoal Canister Assembly | *6 | Fuel Tank Assembly |
| *1 | Fuel Delivery Pipe Sub-assembly | *2 | Fuel Injector Assembly |
| *3 | Quick Connector | *4 | Fuel Pump |
| *5 | Charcoal Canister Assembly | *6 | Fuel Tank Assembly |
