SEAT ASSEMBLY DETAILS

  1. FUNCTION

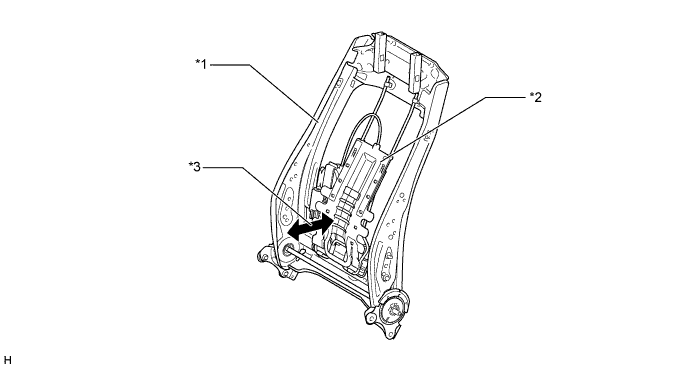

    1. Power Lumbar Support

      1. The driver seat uses a 2-way adjustable lumbar support. This support includes a plastic basket that is located near the lumbar area of the occupant, and which pushes the seatback forward, thus providing uniform support from the upper back down to the pelvis for a better fit.

        A011ZIYE01
        Text in Illustration
        *1 Seatback Frame *2 Plastic Basket
        *3 Front-back Adjustment - -

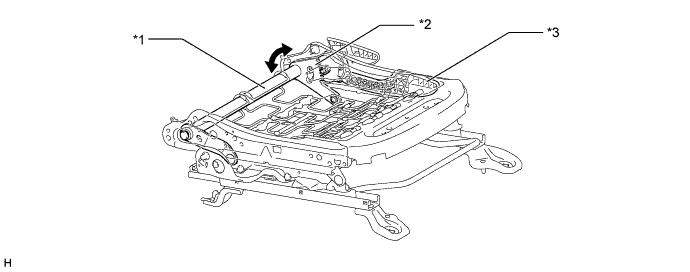

    2. Manual lifter

      1. The manual lifter consists of a pump type lifter knob, lifter gear and lifter rod, thus accommodating various body types.

        A011ZMHE01
        Text in Illustration
        *1 Lifter Rod *2 Lifter Gear
        *3 Lifter Knob - -

  2. CONSTRUCTION

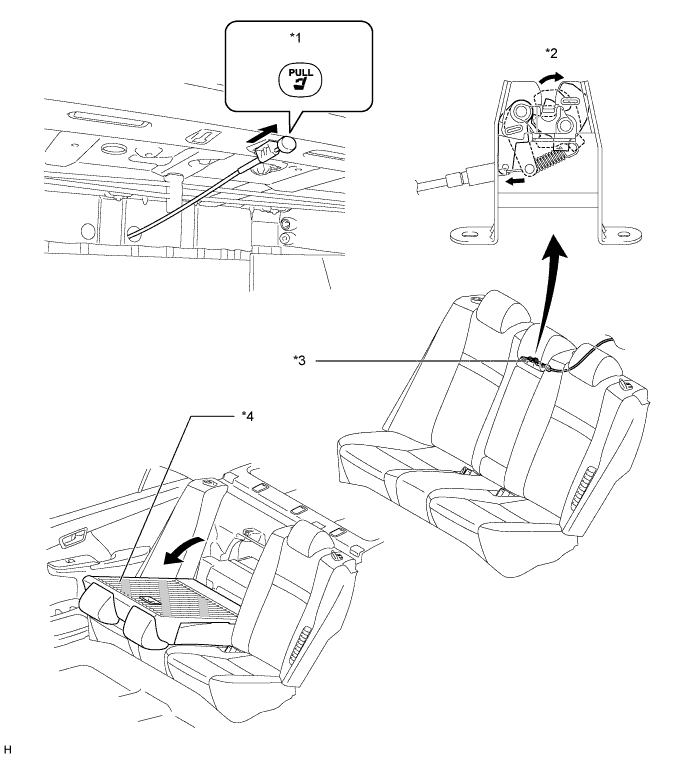

    1. Rear Seat

      1. Foldable 60/40 separate type seats are provided as the rear seats. Folding the seatback forward allows access to the luggage compartment, increasing storage space.

      2. Pulling the knob (rear seat back lock sub-assembly) in the luggage compartment releases the lock (rear seat back lock sub-assembly) that secures the rear seat back. This makes it possible for the rear seat back to be folded forward from inside the cabin, allowing access to the luggage compartment.

        A011ZEEE01
        Text in Illustration
        *1 Knob (Rear Seat Back Lock Sub-assembly RH) *2 Rear Seat Back Lock Sub-assembly RH Unlock Operation
        *3 Rear Seat Back Lock Sub-assembly RH *4 Rear Seat Back RH (Folded Position)

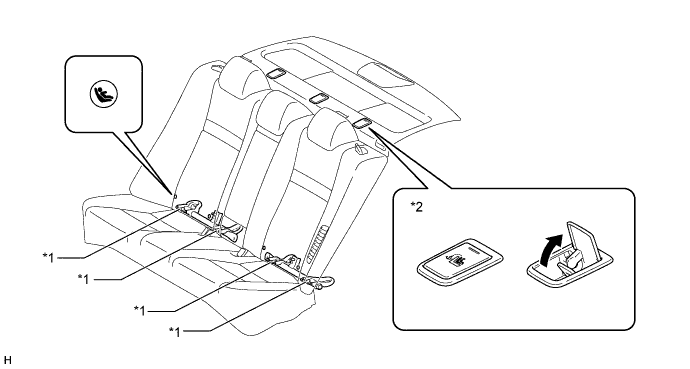

    2. Child Restraint System

      1. ISO-FIX bars for securing child seats have been provided behind the seat cushion of the rear seat.

      2. CRS anchor brackets for securing a child seat have been provided on the package tray trim panel assembly.

        A011Z7OE01
        Text in Illustration
        *1 ISO-FIX Bars *2 CRS Top Tether Anchor Bracket
