LIGHTING SYSTEM PARTS LOCATION

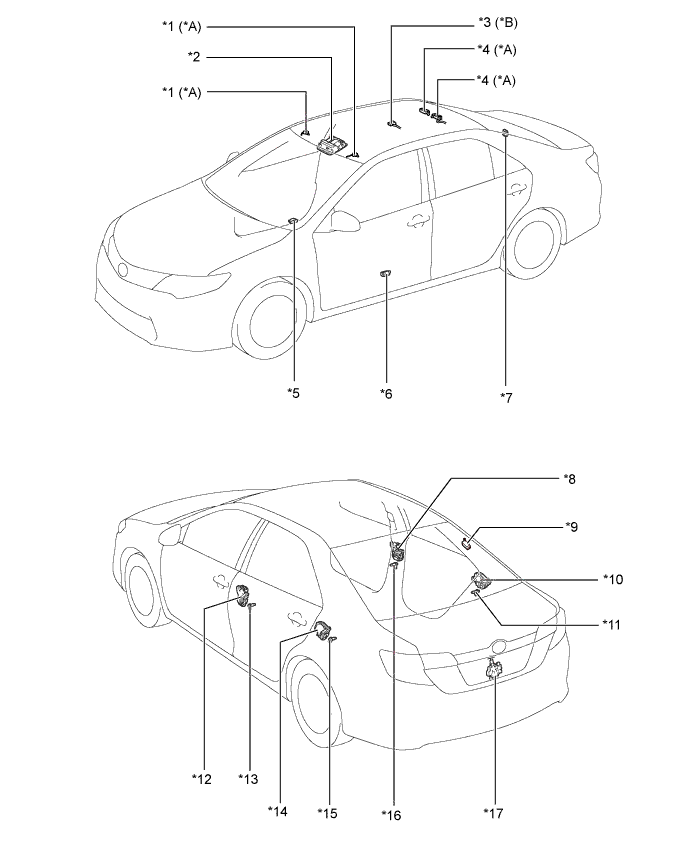

| *A | Models with Sliding Roof System | *B | Models without Sliding Roof System |
| *1 | Vanity Light Assembly | *2 | Roof Console Box Assembly - Personal Light |
| *3 | No. 1 Room Light Assembly - Rear Interior Light |
*4 | Spot Light Assembly (LH, RH) - Rear Interior Light |
| *5 | Courtesy Light Assembly (RH) | *6 | Courtesy Light Assembly (LH) |
| *7 | No. 1 Luggage Compartment Light Assembly | *8 | Front Door Lock with Motor Assembly (RH) - Door Unlock Detection Switch |
| *9 | Door Control Receiver | *10 | Rear Door Lock with Motor Assembly (RH) - Door Unlock Detection Switch |
| *11 | Rear Door Courtesy Light Switch Assembly (RH) | *12 | Front Door Lock with Motor Assembly (LH) - Door Unlock Detection Switch |
| *13 | Front Door Courtesy Light Switch Assembly (LH) | *14 | Rear Door Lock with Motor Assembly (LH) - Door Unlock Detection Switch |
| *15 | Rear Door Courtesy Light Switch Assembly (LH) | *16 | Front Door Courtesy Light Switch Assembly (RH) |
| *17 | Luggage Compartment Door Lock Assembly | - | - |

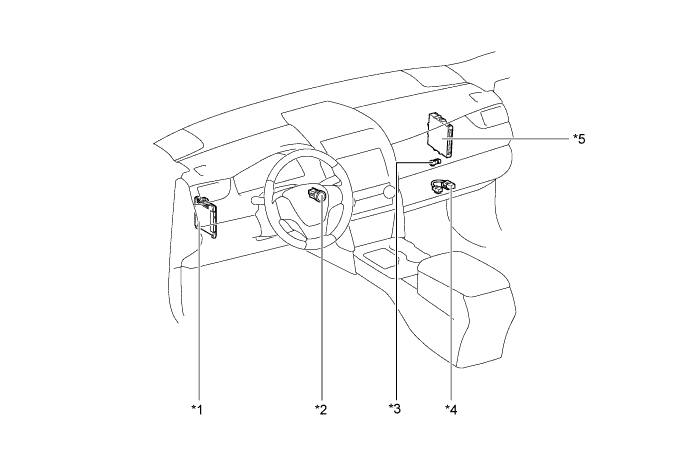

| *1 | Main Body ECU (Multiplex Network Body ECU) | *2 | Power Switch |
| *3 | Glove Box Light | *4 | Light Cut Relay |
| *5 | Certification ECU (Smart Key ECU Assembly) | - | - |
