DRIVE SHAFT SYSTEM GENERAL

  1. OUTLINE

    1. The front drive shaft assembly for all models uses a tripod type Constant Velocity (CV) joint on the differential side, and a Rzeppa type CV joint on the wheel side.

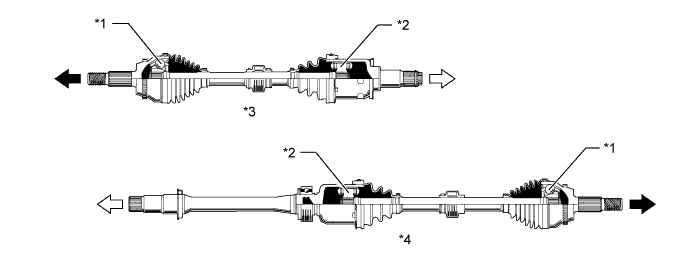

      A011ZKXE01
      Text in Illustration
      *1 Rzeppa Type CV Joint *2 Tripod Type CV Joint
      *3 Front Drive Shaft Assembly LH *4 Front Drive Shaft Assembly RH
      A011ZI5 Wheel Side A011Z8T Differential Side
