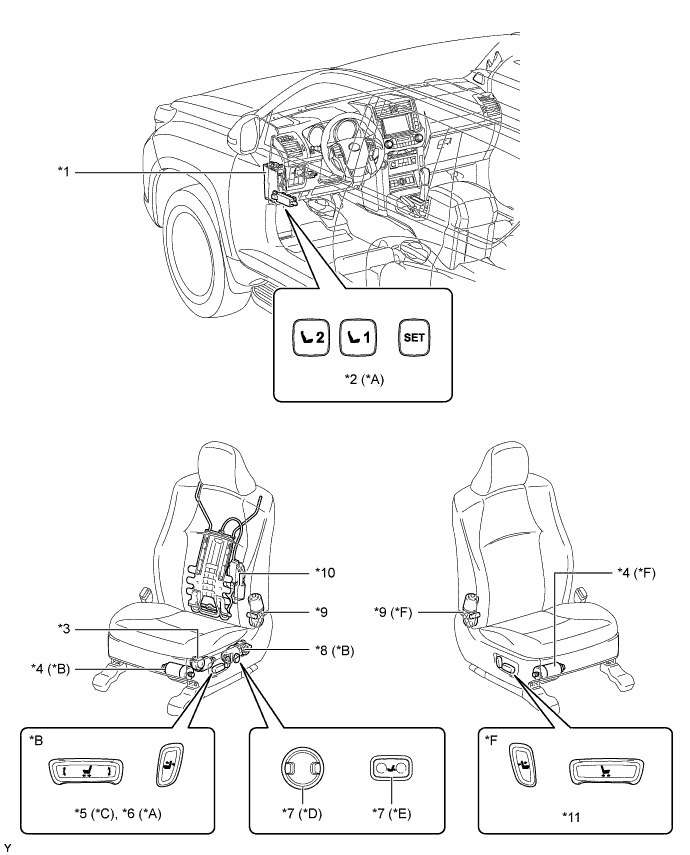

POWER SEAT CONTROL SYSTEM PARTS LOCATION
| *A | Models with Memory Function | *B | For Driver Seat |
| *C | Models without Memory Function | *D | Models with Front Power Seat |
| *E | Models without Front Power Seat | *F | For Front Passenger Seat |
| *1 | Main Body ECU (Driver Side Junction Block Assembly) | *2 | Seat Memory Switch |
| *3 | Front Vertical Motor | *4 | Slide Motor |
| *5 | Front Power Seat Switch | *6 | Front Power Seat Switch - Position Control ECU - Buzzer |
| *7 | Lumbar Support Switch | *8 | Seat Lifter Motor |
| *9 | Reclining Motor | *10 | Lumbar Support Motor |
| *11 | Front Power Seat Switch | - | - |

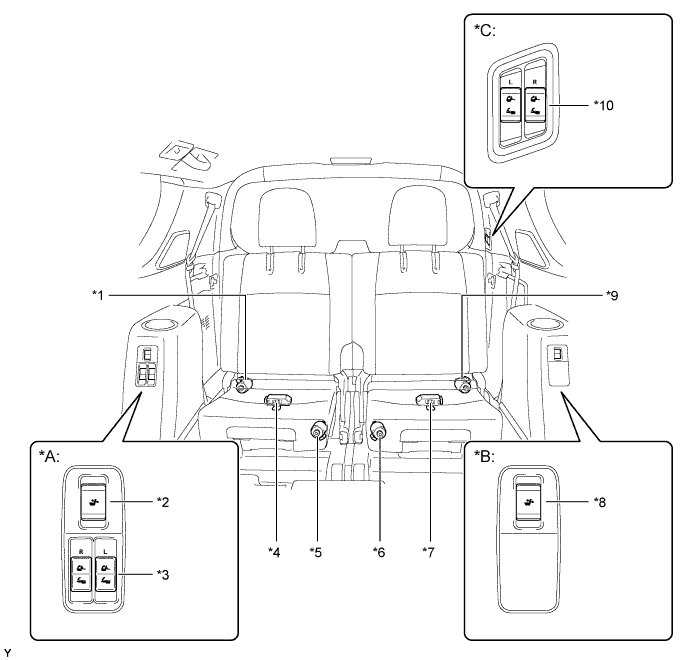

| *A | For Front Passenger Side | *B | For Driver Side |
| *C | For Luggage Compartment | - | - |
| *1 | Reclining Motor RH | *2 | Reclining Switch |
| *3 | Fold Seat Switch | *4 | Fold Seat Control ECU RH |
| *5 | Cushion Motor RH | *6 | Cushion Motor LH |
| *7 | Fold Seat Control ECU LH | *8 | Cushion Motor LH |
| *9 | Reclining Motor LH | *10 | Fold Seat Switch |
