COOLING SYSTEM DETAILS

  1. CONSTRUCTION

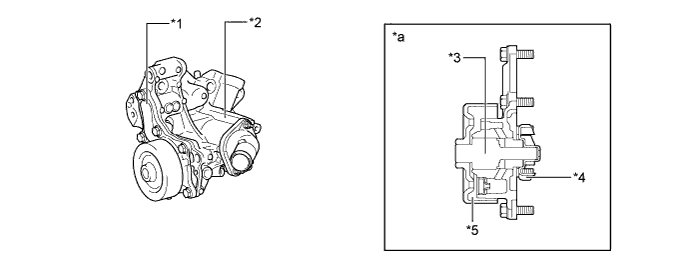

    1. Engine Water Pump Assembly

      1. For enhanced corrosion resistance, the engine water pump assembly uses a stainless steel rotor.

        A011LWKE01
        Text in Illustration
        *1 Engine Water Pump Assembly *2 Water Inlet Housing
        *3 Bearing *4 Stainless Steel Rotor
        *5 Water Pump Pulley - -
        *a Water Pump Cross Section - -

    2. Radiator Assembly

      1. A downflow radiator is used.

      2. The radiator assembly and cooler condenser assembly have been integrated, achieving a compact design.

        A011LN2E01
        Text in Illustration
        *1 Upper Radiator Tank *2 Lower Radiator Tank
        *3 Radiator Assembly *4 Cooler Condenser Assembly
        A011LLP Front - -
