LIGHTING SYSTEM GENERAL


  1. OUTLINE


    1. Exterior Lights


      1. The exterior lights consist of the following:

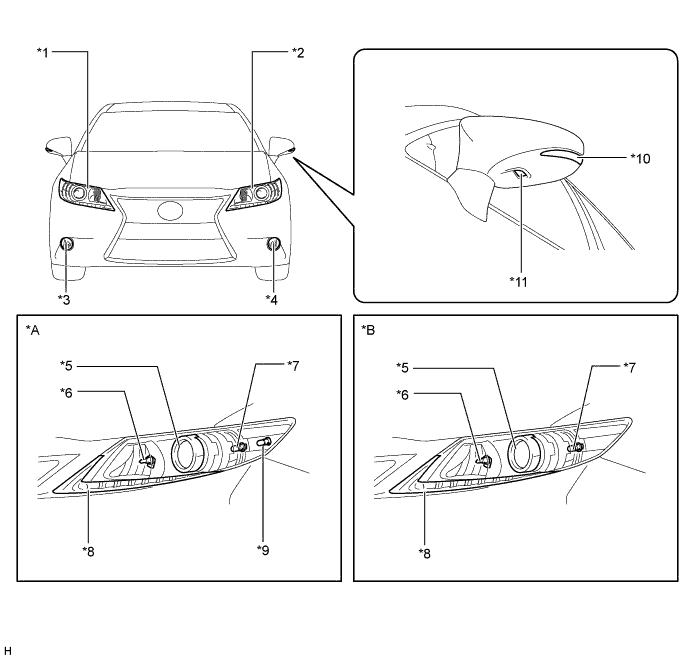

        A01GVRNE01
        Text in Illustration
        *A Models for G.C.C. Countries *B Except Models for G.C.C. Countries
        *1 Headlight Assembly RH *2 Headlight Assembly LH
        *3 Fog Light Assembly RH *4 Fog Light Assembly LH
        *5 Low Beam *6 High Beam
        *7 Front Turn Signal Light *8 Daytime Running Light/Clearance Light
        *9 Front Side Marker Light *10 Side Turn Signal Light
        *11 Door Mirror Foot Light - -

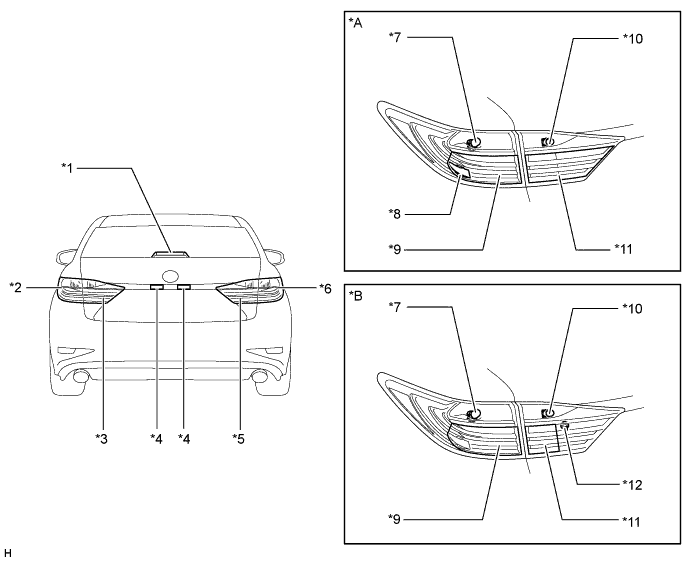

        A01GVYQE01
        Text in Illustration
        *A Models for G.C.C. Countries *B Except Models for G.C.C. Countries
        *1 High Mounted Stop Light (Center Stop Light Set) *2 Rear Combination Light Assembly LH
        *3 Rear Light Assembly LH *4 License Plate Light
        *5 Rear Light Assembly RH *6 Rear Combination Light Assembly RH
        *7 Turn Signal Light *8 Rear Side Marker Light
        *9 Taillight and Stop Light *10 Backup Light
        *11 Taillight *12 Rear Fog Light (Oncoming Lane Side Only)

    2. Daytime Running Light System


      1. The daytime running light system is designed to automatically illuminate the daytime running lights during the daytime to keep the vehicle highly visible to other vehicles.

    3. High Intensity Discharge (HID) Headlight System


      1. The HID headlight system uses a metal halide bulb as the light source for each low beam. Discharge bulbs are superior to halogen bulbs.

    4. Automatic Headlight Beam Level Control System (Models with HID Headlights)


      1. When the headlights are on, the automatic headlight beam level control system operates the headlight leveling motors in accordance with movement of the vehicle.

    5. Manual Headlight Beam Level Control System (Models with Halogen Headlights)


      1. When the vehicle posture changes in accordance with the number (weight) of passengers and volume of luggage, this system makes it possible to adjust the low beam level (11-steps) manually to the appropriate level. The low beam level is adjusted using the headlight leveling switch.

    6. Automatic High Beam System


      1. The automatic high beam system detects lights in front of the vehicle and automatically changes between high beams and low beams to support the driver during night driving.

    7. Automatic Light Control System (Models with HID Headlights)


      1. When the dimmer switch is in the AUTO position, the light control sensor detects the ambient light level and automatically turns the headlights, taillights, clearance lights, side marker lights* and license plate lights on or off accordingly.

        *: Models for G.C.C. countries

      2. This system is controlled by the main body ECU (multiplex network body ECU).

    8. Light Auto Turn-off System


      1. The light auto turn-off system is used to prevent the driver from leaving the vehicle with the headlights, front fog lights, clearance lights, side marker lights*, taillights or license plate lights on.

        *: Models for G.C.C. countries

    9. Door Mirror Foot Light System


      1. The door mirror foot light system operates the door mirror foot lights to ensure visibility when approaching or leaving the vehicle at night.

    10. Illumination System


      1. When passengers are approaching the vehicle at night, the illumination system operates the clearance lights, side marker lights*, taillights and license plate lights to ensure the visibility of the passengers.

        *: Models for G.C.C. countries

    11. Follow Me Home System


      1. The follow me home system turns on the headlights (low beams), clearance lights and taillights when the vehicle is parked in order to ensure visibility at night.

  2. MAJOR DIFFERENCE


    1. The new models have been modified from the previous models as shown below:


      1. RHD models have been added.

      2. LED type fog light assemblies have been added.

  3. SPECIFICATION

    Light Type Wattage
    Headlight Assembly Halogen Headlight High Beams Halogen Bulb (HB3) 60
    Low Beams Halogen Bulb (H11) 55
    Clearance Lights/Daytime Running Lights LED x 9 0.6/8.3
    Front Turn Signal Lights

    Bulb (KPR7444NA)*1

    Bulb (WY21W)*2

    28*1

    21*2
    Front Side Marker Lights*1 Bulb (W5W) 5
    HID Headlight High Beams Halogen Bulb (HB3) 60
    Low Beams Discharge Bulb (D4S) 35
    Clearance Lights/Daytime Running Lights LED x 9 0.6/8.3
    Front Turn Signal Lights

    Bulb (KPR7444NA)*1

    Bulb (WY21W)*2

    28*1

    21*2
    Front Side Marker Lights*1 Bulb (W5W) 5
    Side Turn Signal Light Assembly (LH, RH) LED x 4 0.3
    Door Mirror Foot Light Bulb (W5W) 5
    Front Fog Light Assembly Halogen Fog Light Halogen Bulb (H16) 19
    LED Fog Light LED 5.9
    Rear Light Assembly*1 Backup Light Bulb (W16W) 16
    Taillights LED x 9 1.5
    Rear Light Assembly*2 Backup Light Bulb (W16W) 16
    Taillights LED x 3 0.5
    Rear Fog Lights Bulb (W21W) 21
    Rear Combination Light Assembly Taillights/Stop Lights LED x 18 0.2/4.6
    Turn Signal Lights Bulb (WY21W) 21
    Rear Side Marker Lights*1 LED 0.2
    High Mounted Stop Light (Center Stop Light Set) LED x 6 1.5
    License Plate Lights LED 0.6

    *1: Models for G.C.C. countries

    *2: Except models for G.C.C. countries

  4. MAIN FEATURES


    1. High Intensity Discharge (HID) Headlight System


      1. The light emitted by an HID headlight bulb is close in color to sunlight. The light shines ahead over a broader area and farther forward, increasing the area visible to the driver.

      2. Less power is consumed compared to halogen headlights.

  5. PRECAUTION


    1. High Intensity Discharge (HID) Headlight System


      1. When the HID headlights illuminate, a high voltage (approximately 22000 V) is applied momentarily to the bulb sockets. Never connect a tester to the high voltage socket of an HID headlight for measurement, as this may lead to a serious accident due to high voltage.

      2. Whenever inspecting the HID headlight system, make sure that water or rain is not present, the dimmer switch is off, the battery terminal is disconnected, and the light control ECU connector is disconnected in order to prevent electric shock.

      3. Whenever operating the HID headlights, make sure that the headlight assembly is complete and never operate the system without bulbs installed.

      4. Do not operate the HID headlights using a power source other than the vehicle's.

      5. When there is a defect in an HID headlight or any shock has been applied to it, replace the bulb with a new one.

      6. A discharge bulb reaches a high temperature when it is illuminated. For this reason, the life of the bulb could be shortened if any oil comes in contact with the glass portion of the bulb. Do not touch the glass portion of a bulb with bare hands.

    2. The type of door control receiver used on this model differs according to the specifications of the vehicle. The expressions listed in the table below are used in this section.

      Vehicle Specification Part Name in Manual Actual Part Name
      Models with Tire Pressure Warning System Integrated Door Control Receiver and Tire Pressure Warning ECU and Receiver Door Control Receiver Door Control and Tire Pressure Monitoring System Receiver Assembly
      Separate Door Control Receiver and Tire Pressure Warning ECU and Receiver Door Control Receiver Door Control Receiver
      Models without Tire Pressure Warning System Door Control Receiver Door Control Receiver
