SLIDING ROOF SYSTEM PARTS LOCATION

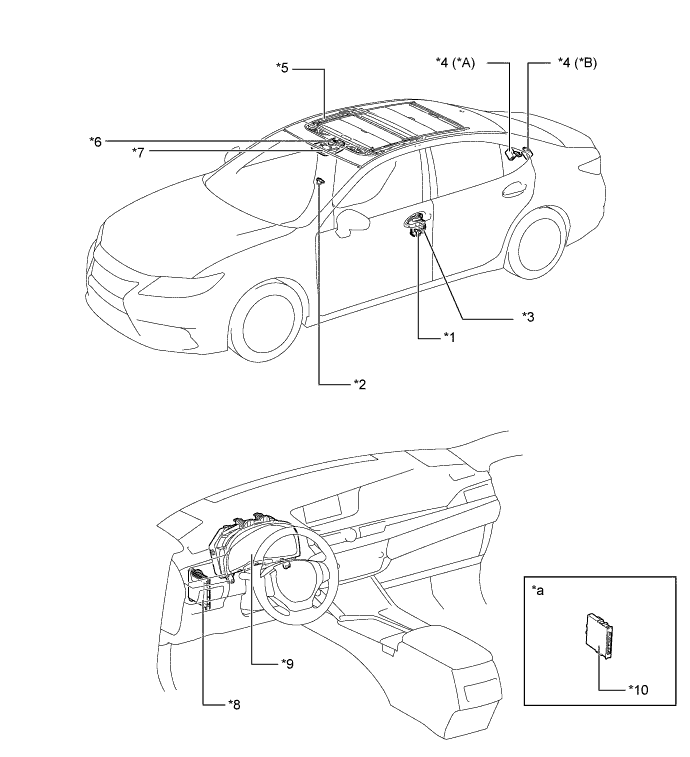

| *A | Models for China and Destination Packages for Taiwan and Brazil | *B | Except Models for China and Destination Packages for Taiwan and Brazil |
| *1 | Front Door Courtesy Light Switch Assembly (LH) | *2 | Front Door Courtesy Light Switch Assembly (RH) |
| *3 | Front Door Lock Assembly LH (Driver) - Door Key Lock and Unlock Switch |
*4 | Door Control Receiver |
| *5 | Sliding Roof Housing Sub-assembly | *6 | Sliding Roof Drive Gear Sub-assembly - Sliding Roof ECU |
| *7 | Roof Console Box Assembly - Open/Close Switch - Tilt Up/Tilt Down Switch |
*8 | Main Body ECU (Multiplex Network Body ECU) |
| *9 | Combination Meter Assembly | *10 | Certification ECU (Smart Key ECU Assembly) |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |

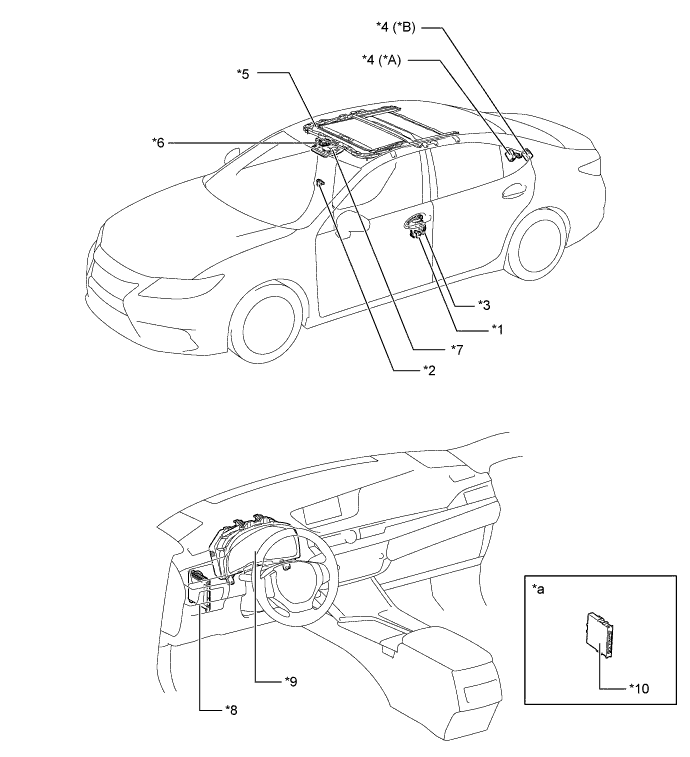

| *A | Models for China and Destination Package for Brazil | *B | Except Models for China and Destination Package for Brazil |
| *1 | Front Door Courtesy Light Switch Assembly (LH) | *2 | Front Door Courtesy Light Switch Assembly (RH) |
| *3 | Front Door Lock Assembly LH (Driver) - Door Key Lock and Unlock Switch |
*4 | Door Control Receiver |
| *5 | Sliding Roof Housing Sub-assembly | *6 | Sliding Roof Drive Gear Sub-assembly - Sliding Roof ECU |
| *7 | Roof Console Box Assembly - Open/Close Switch - Tilt Up/Tilt Down Switch |
*8 | Main Body ECU (Multiplex Network Body ECU) |
| *9 | Combination Meter Assembly | *10 | Certification ECU (Smart Key ECU Assembly) |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
