NAVIGATION SYSTEM / MULTI INFORMATION SYSTEM PARTS LOCATION
| *A | Destination Package for Australia | *B | Models with Rear Seat Heater System |
| *1 | Roof Console Box Assembly | *2 | Telephone Microphone Assembly |
| *3 | Window Glass Antenna Wire - AM - FM Main - FM-sub |
*4 | Amplifier Antenna Assembly - AM - FM Main - FM-sub |
| *5 | Amplifier Antenna Assembly - DAB |
*6 | Window Glass Antenna Wire - DAB |
| *7 | Cooler Control Switch Assembly - Rear Seat Audio Control Panel |
- | - |

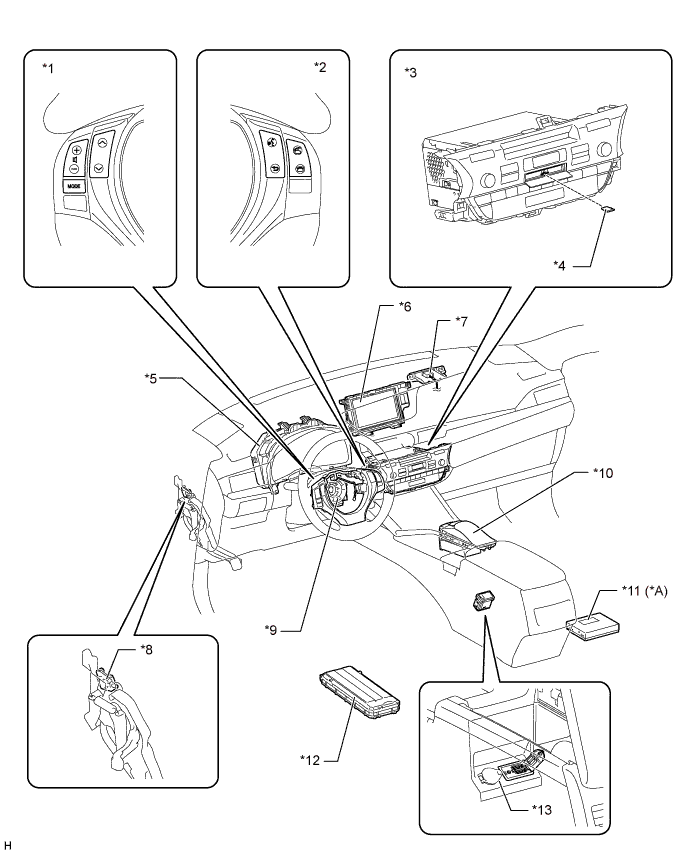

| *A | Models with Telematics Transceiver Connection Type G-BOOK System | - | - |
| *1 | Steering Pad Switch Assembly - Volume - Seek - Mode |
*2 | Steering Pad Switch Assembly - Voice - Voice Return - Telephone |
| *3 | Multi-media Module Receiver Assembly | *4 | microSD Card (Disc Player Disc) |
| *5 | Combination Meter Assembly | *6 | Multi-media Module Display - Multi-display |
| *7 | Navigation Antenna Assembly | *8 | Parking Brake Switch Assembly |
| *9 | Spiral Cable with Sensor Sub-assembly | *10 | Remote Touch |
| *11 | Telematics Transceiver (Data Communication Module) | *12 | Stereo Component Amplifier Assembly |
| *13 | No. 1 Stereo Jack Adapter Assembly | - | - |

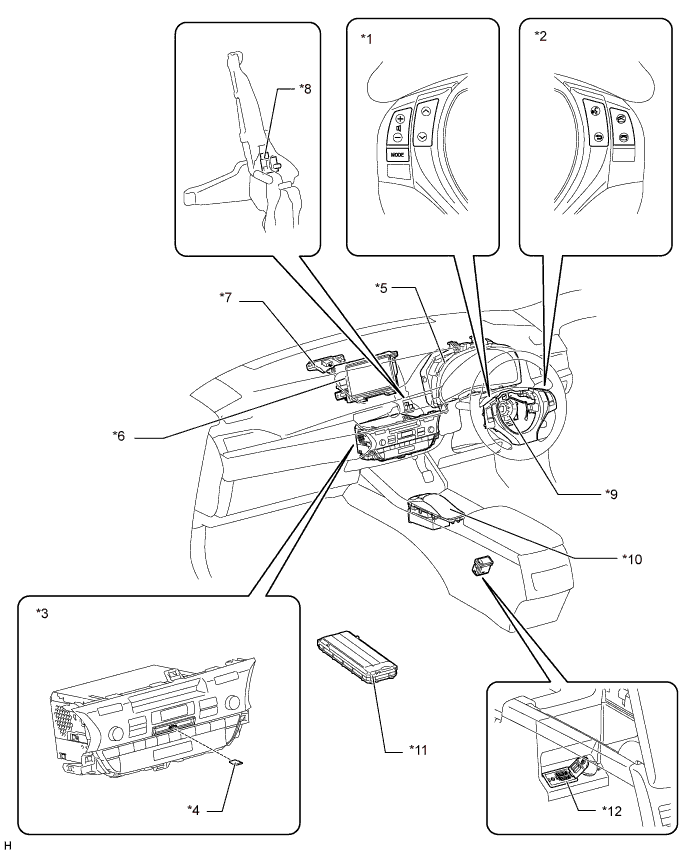

| *1 | Steering Pad Switch Assembly - Volume - Seek - Mode |
*2 | Steering Pad Switch Assembly - Voice - Voice Return - Telephone |
| *3 | Multi-media Module Receiver Assembly | *4 | microSD Card (Disc Player Disc) |
| *5 | Combination Meter Assembly | *6 | Multi-media Module Display - Multi-display |
| *7 | Navigation Antenna Assembly | *8 | Parking Brake Switch Assembly |
| *9 | Spiral Cable with Sensor Sub-assembly | *10 | Remote Touch |
| *11 | Stereo Component Amplifier Assembly | *12 | No. 1 Stereo Jack Adapter Assembly |
