MEMORY SYSTEM


  1. LAYOUT OF MAIN COMPONENTS

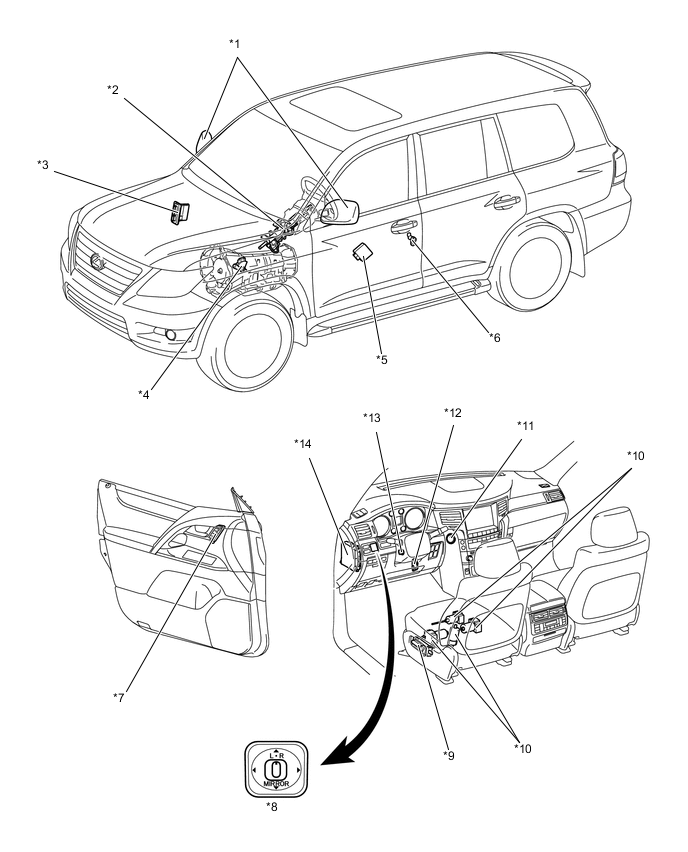

    Figure 1. LHD Models

    A01W7W6C01
    *1

    Outer Rear View Mirror Assembly


    • Mirror Motor

    		 *2

    Steering Column Assembly


    • Tilt and Telescopic Motor
    *3 ECM *4 Park/Neutral Position Switch
    *5 Outer Mirror Control ECU *6 Driver Door Courtesy Switch
    *7 Memory Switch and SET Switch *8 Outer Mirror Switch
    *9 Position Control ECU and Switch *10 Seat Motor
    *11 Engine Switch *12 Tilt and Telescopic ECU
    *13 Tilt and Telescopic Switch *14 Main Body ECU (Multiplex Network Body ECU)
