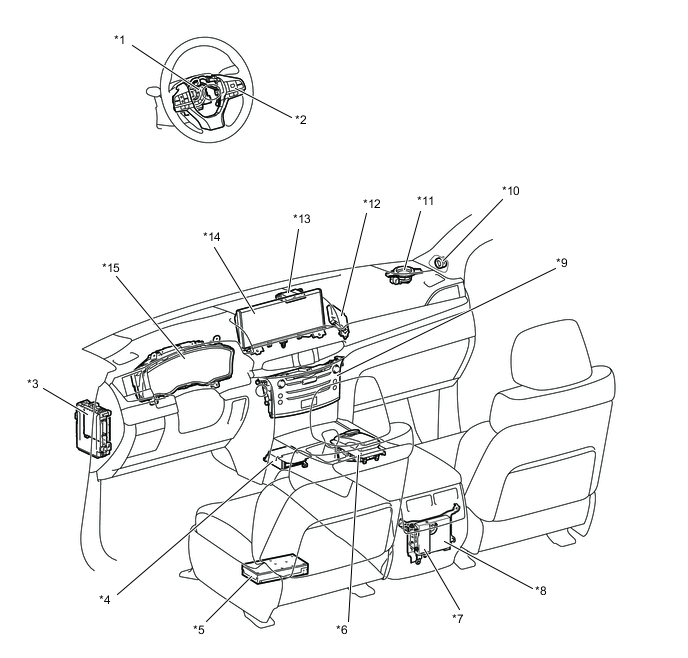

| *1 |
Spiral Cable with Sensor Sub-assembly |
*2 |
Steering Pad Switch Assembly |
| *3 |
Main Body ECU (Multiplex Network Body ECU) |
*4 |
Airbag Sensor Assembly |
| *5 |
Stereo Component Amplifier Assembly |
*6 |
Remote Operation Controller Assembly (Remote Touch) |
| *7 |
Mayday Battery (Back-up Battery) |
*8 |
Telematics Transceiver Assembly (Data Communication Module) |
| *9 |
Multi-media Module Receiver Assembly |
*10 |
Front No. 3 Speaker Assembly RH |
| *11 |
Front No. 2 Speaker Assembly RH |
*12 |
Network Gateway ECU |
| *13 |
Navigation Antenna Assembly (GPS Antenna) |
*14 |
Accessory Meter Assembly |
| *15 |
Combination Meter Assembly |
- |
- |
