ENHANCEMENT OF PRODUCT APPEAL


  1. WINDSHIELD GLASS


    1. A wedge interlayer type headup display has been adopted for the front windshield glass to provide a clear display by controlling the reflection of light to reduce misalignments between the main image shown on the interior side of the glass and the sub image shown on the external side of the glass.

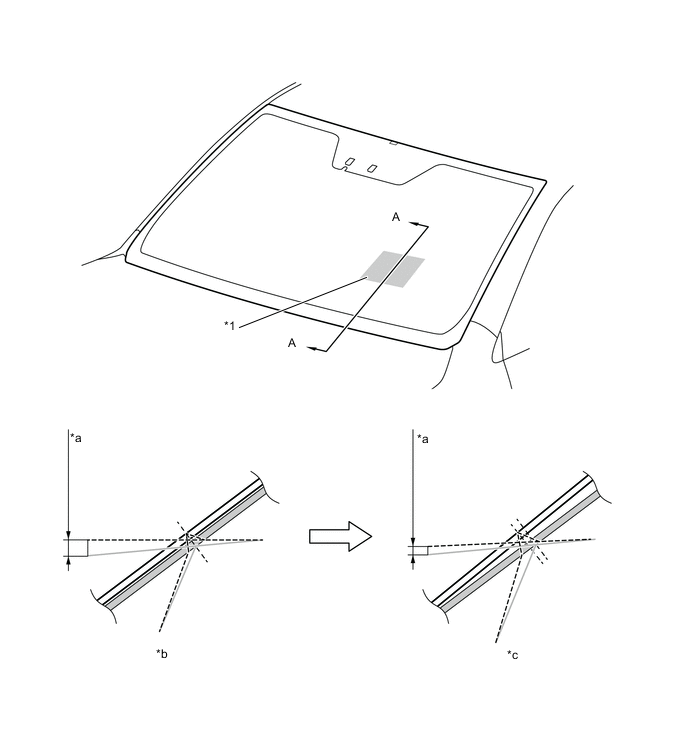

      A01W730C01
      *1 Headup Display - -
      *a The amount of misalignment of image *b A - A Cross Section (Normal Interlayer type)
      *c A - A Cross Section (Wedge Interlayer Type) - -
