AE80F AUTOMATIC TRANSMISSION

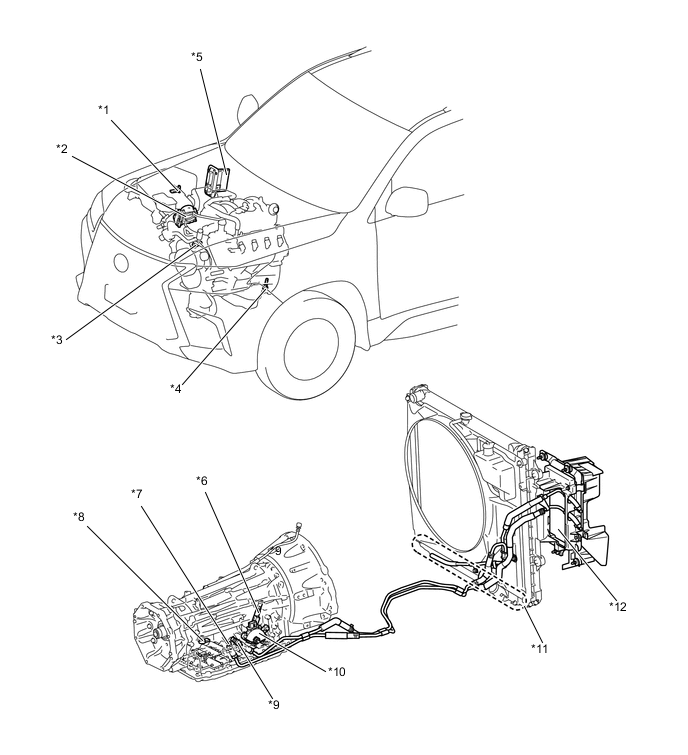

| *1 | Intake Mass Air Flow Meter Sub-Assembly | *2 | Throttle Body with Motor Assembly
|
| *3 | E.F.I. Engine Coolant Temperature Sensor | *4 | Crank Position Sensor |
| *5 | ECM | *6 | Transmission Revolution Sensor (NT) |
| *7 | No. 1 ATF Temperature Sensor (Transmission Wire) | *8 | Transmission Revolution Sensor (SP2) |
| *9 | No. 2 ATF Temperature Sensor | *10 | Park/Neutral Position Switch Assembly |
| *11 | Water Cooled Oil Cooler (Built-In Radiator) | *12 | Air Cooled Oil Cooler (Oil Cooler with Hose Assembly) |

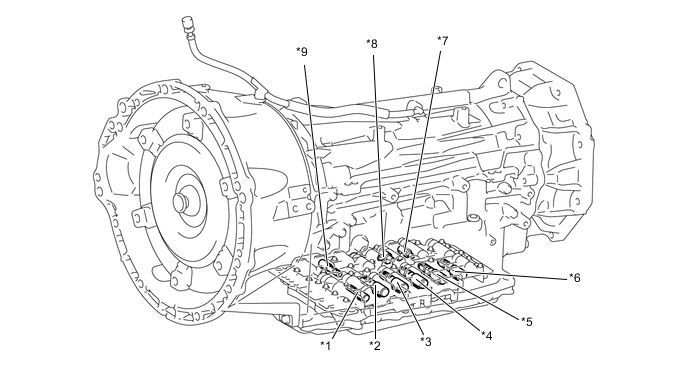

| *1 | Shift Solenoid Valve SLT (Line Pressure Control Solenoid Assembly) | *2 | Shift Solenoid Valve SL1 (Shift Control Solenoid Assembly) |
| *3 | Shift Solenoid Valve SL4 (Shift Control Solenoid Assembly) | *4 | Shift Solenoid Valve SL2 (Shift Control Solenoid Assembly) |
| *5 | Shift Solenoid Valve SL5 (Shift Control Solenoid Assembly) | *6 | Shift Solenoid Valve SL3 (Shift Control Solenoid Assembly) |
| *7 | Shift Solenoid Valve SC1 (Transmission 3-way Solenoid Assembly) | *8 | Shift Solenoid Valve SC2 (Transmission 3-way Solenoid Assembly) |
| *9 | Shift Solenoid Valve SLU (Lock Up Control Solenoid Assembly) | - | - |
| *A | Models with Shift Paddle Switch (Transmission Shift Switch Assembly) | - | - |

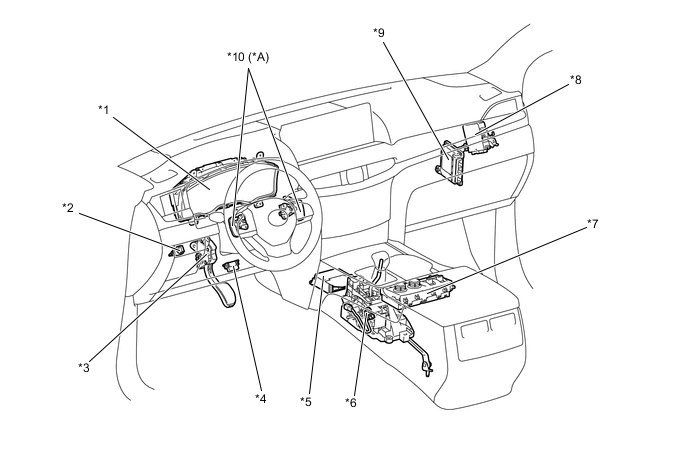

| *1 | Combination Meter Assembly
|
*2 | Stop Light Switch Assembly |
| *3 | Accelerator Pedal Sensor Assembly | *4 | DLC3 |
| *5 | Airbag Sensor Assembly
|
*6 | Transmission Floor Shift Assembly
|
| *7 | Combination Switch Assembly (Integration Control and Panel Assembly)
|
*8 | 4 Wheel Drive Control ECU |
| *9 | TCM | *10 | Shift Paddle Switch (Transmission Shift Switch Assembly) |
