SLIDING ROOF SYSTEM

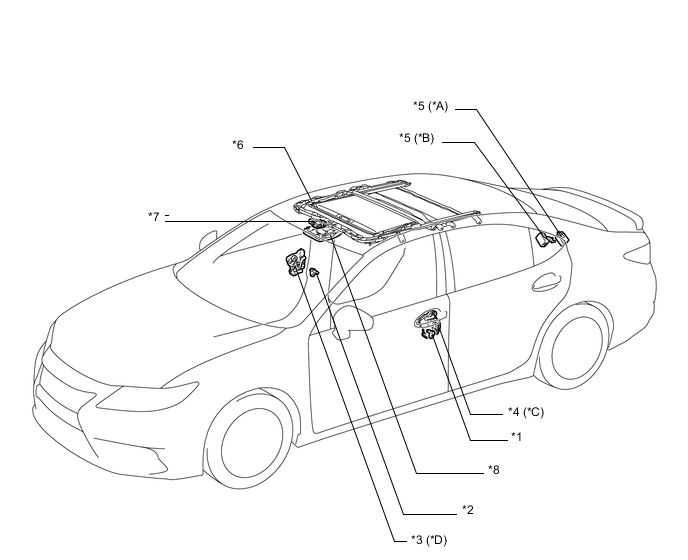

| *A | Models for China and Destination Package for Taiwan and Hong Kong | *B | Except Models for China and Destination Package for Taiwan and Hong Kong |
| *C | LHD Models | *D | RHD Models |
| *1 | Front Door Courtesy Light Switch Assembly (LH) | *2 | Front Door Courtesy Light Switch Assembly (RH) |
| *3 | Front Door Lock Assembly RH - Door Key Lock and Unlock Switch |
*4 | Front Door Lock Assembly LH - Door Key Lock and Unlock Switch |
| *5 | Door Control Receiver | *6 | Sliding Roof Housing Sub-assembly |
| *7 | Sliding Roof Drive Gear Sub-assembly - Sliding Roof ECU |
*8 | Roof Console Box Assembly - Open/Close Switch - Tilt Up/Tilt Down Switch |

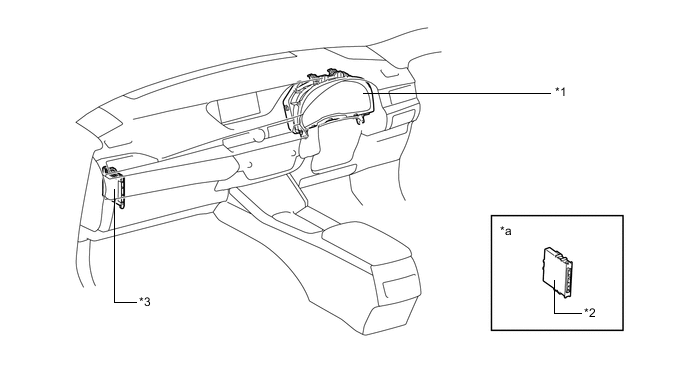

| *1 | Combination Meter Assembly | *2 | Certification ECU (Smart Key ECU Assembly) |
| *3 | Main Body ECU (Multiplex Network Body ECU ) | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
| *1 | Combination Meter Assembly | *2 | Certification ECU (Smart Key ECU Assembly) |
| *3 | Main Body ECU (Multiplex Network Body ECU ) | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
