POWER TRUNK LID SYSTEM

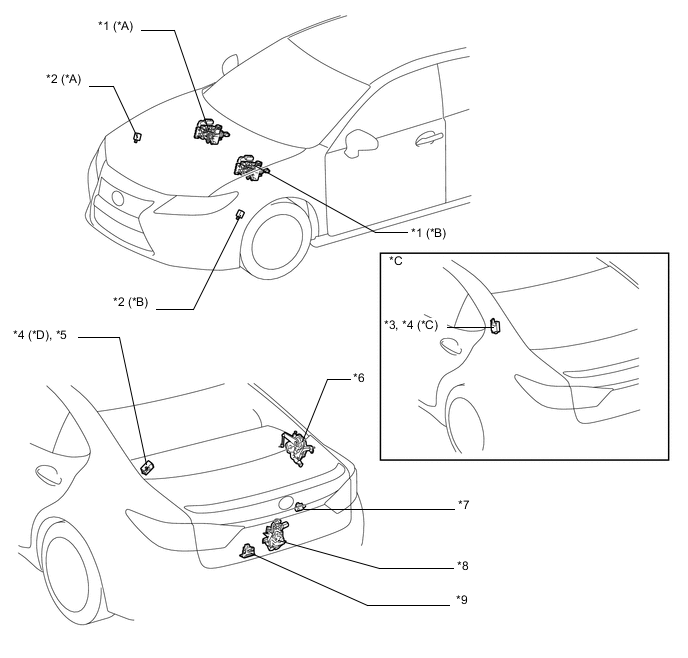

| *A | RHD Models | *B | LHD Models |
| *C | Destination Packages for Brazil, Aruba, Costa Rica, Panama and Nicaragua | *D | Except Destination Packages for Brazil, Aruba, Costa Rica, Panama and Nicaragua |
| *1 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
*2 | Wireless Door Lock Buzzer |
| *3 | Door Control and Tire Pressure Monitoring System Receiver Assembly (Integrated Type) | *4 | Door Control Receiver |
| *5 | Door Control Receiver (Separated Type) | *6 | Luggage Closer Motor Assembly - Multiplex Network Door ECU - Luggage Closer Motor |
| *7 | Luggage Electrical Key Switch | *8 | Luggage Door Closer Assembly - Luggage Door Closer Motor - Luggage Key Unlock Switch |
| *9 | Luggage Door Closer Switch | - | - |

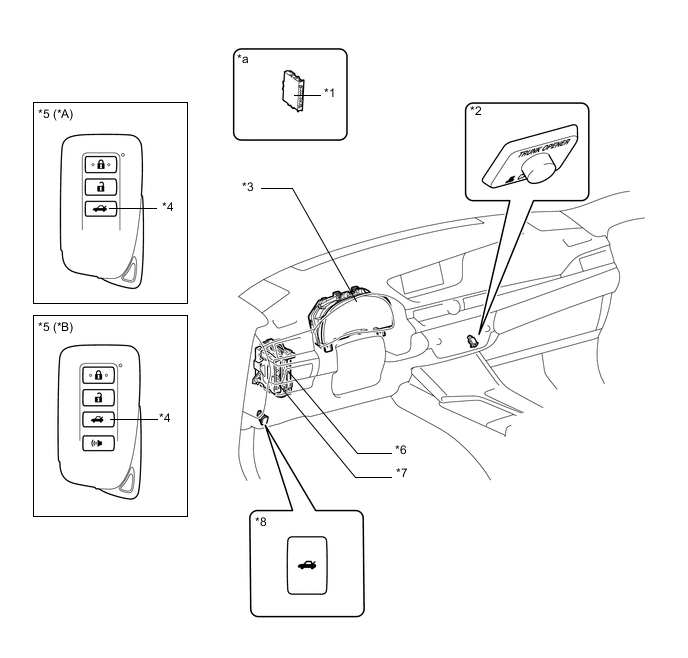

| *A | Models without Panic Switch | *B | Models with Panic Switch |
| *1 | Certification ECU (Smart Key ECU Assembly) | *2 | Luggage Door Opening Cancel Switch Assembly |
| *3 | Combination Meter Assembly | *4 | Luggage Compartment Door Opener Switch |
| *5 | Electrical Key Transmitter Sub-assembly | *6 | Main Body ECU (Multiplex Network Body ECU) |
| *7 | Power Management Control ECU | *8 | Luggage Door Opening Switch Assembly |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

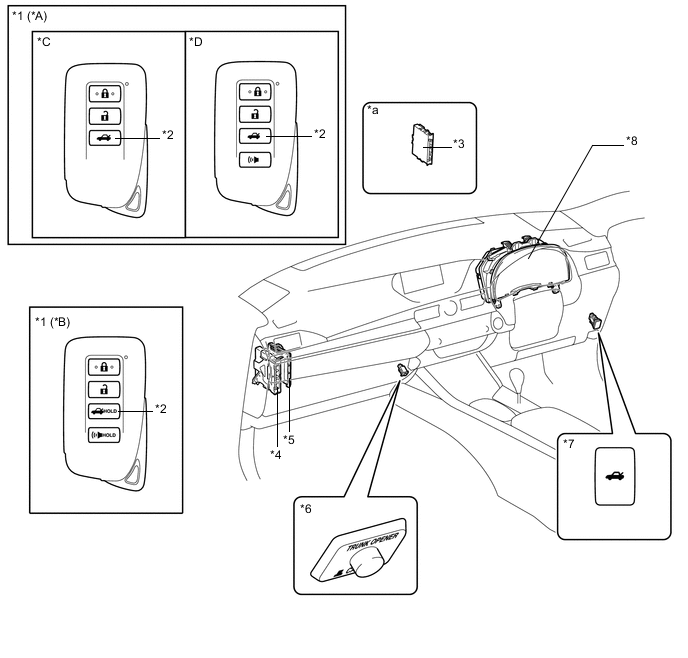

| *A | Except Models for Australia | *B | Models for Australia |
| *C | Models without Panic Switch | *D | Models with Panic Switch |
| *1 | Electrical Key Transmitter Sub-assembly | *2 | Luggage Compartment Door Opener Switch |
| *3 | Certification ECU (Smart Key ECU Assembly) | *4 | Power Management Control ECU |
| *5 | Main Body ECU (Multiplex Network Body ECU) | *6 | Luggage Door Opening Cancel Switch Assembly |
| *7 | Luggage Door Opening Switch Assembly | *8 | Combination Meter Assembly |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
