LIGHTING SYSTEM

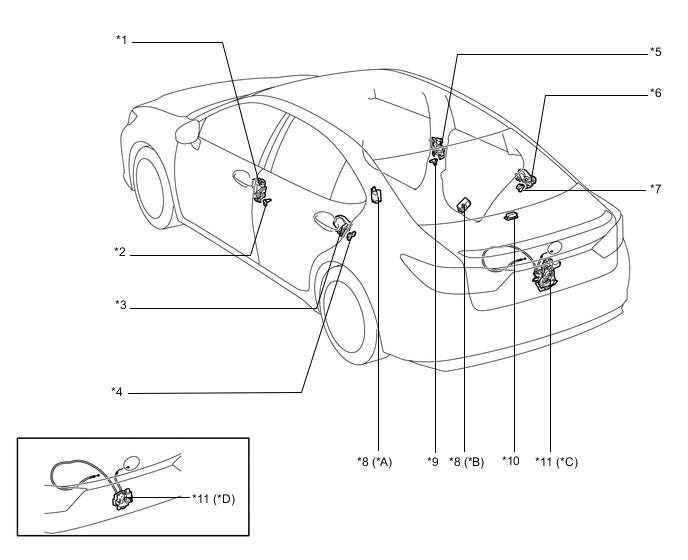

| *A | Models for China and Destination Package for Taiwan and Hong Kong | *B | Except Models for China and Destination Package for Taiwan and Hong Kong |
| *C | Models with Power Trunk Lid System | *D | Models without Power Trunk Lid System |
| *1 | Front Door Lock Assembly (LH) - Door Unlock Detection Switch |
*2 | Front Door Courtesy Light Switch Assembly (LH) |
| *3 | Rear Door Lock Assembly (LH) - Door Unlock Detection Switch |
*4 | Rear Door Courtesy Light Switch Assembly (LH) |
| *5 | Front Door Lock Assembly (RH) - Door Unlock Detection Switch |
*6 | Rear Door Lock Assembly (RH) - Door Unlock Detection Switch |
| *7 | Rear Door Courtesy Light Switch Assembly (RH) | *8 | Door Control Receiver |
| *9 | Front Door Courtesy Light Switch Assembly (RH) | *10 | No. 1 Luggage Compartment Light Assembly |
| *11 | Luggage Compartment Door Lock Assembly | - | - |

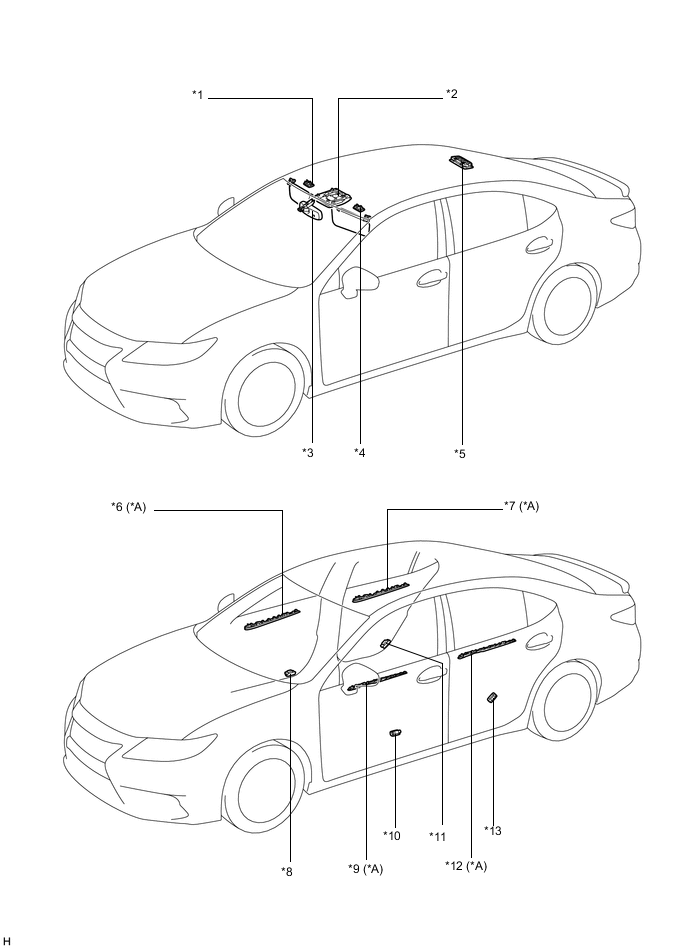

| *A | Models with Ambient Lights | - | - |
| *1 | Vanity Light Assembly (RH) | *2 | Roof Console Box Assembly - Personal Light |
| *3 | Inner Rear View Mirror Assembly - Shift Illumination |
*4 | Vanity Light Assembly (LH) |
| *5 | Spot Light Assembly | *6 | Inside Handle Light (Front RH) |
| *7 | Inside Handle Light (Rear RH) | *8 | Courtesy Light Assembly (Front RH) |
| *9 | Inside Handle Light (Front LH) | *10 | Courtesy Light Assembly (Front RH) |
| *11 | Courtesy Light Assembly (Rear RH) | *12 | Inside Handle Light (Rear LH) |
| *13 | Courtesy Light Assembly (Rear LH) | - | - |

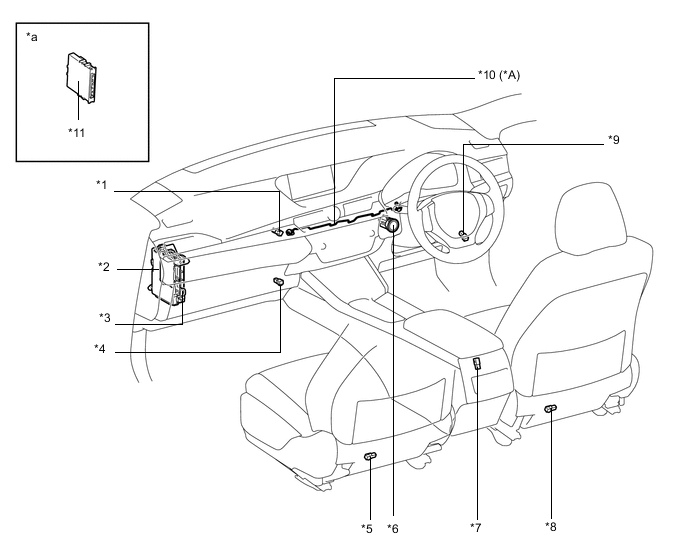

| *A | Models with Ambient Lights | - | - |
| *1 | Ambient Light (Interior Illumination Light Sub-assembly) | *2 | Instrument Panel Junction Block Assembly |
| *3 | Footwell Light (No. 1 Interior Illumination Lamp Assembly (Front LH)) | *4 | Main Body ECU (Multiplex Network Body ECU) |
| *5 | Power Switch | *6 | Footwell Light (No. 1 Interior Illumination Lamp Assembly (Rear LH)) |
| *7 | Footwell Light (No. 1 Interior Illumination Lamp Assembly (Front RH)) | *8 | Console Illumination Light Assembly |
| *9 | Footwell Light (No. 1 Interior Illumination Lamp Assembly (Rear RH)) | *10 | Glove Box Light Assembly |
| *11 | Certification ECU (Smart Key ECU Assembly) | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

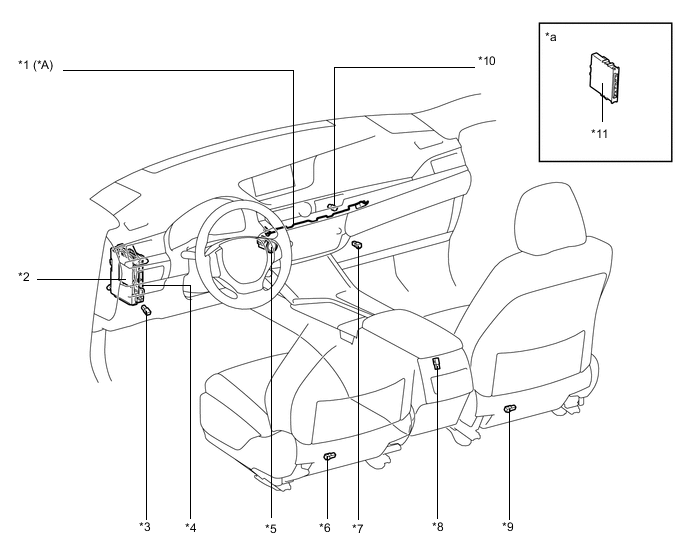

| *A | Models with Ambient Lights | - | - |
| *1 | Glove Box Light Assembly | *2 | Instrument Panel Junction Block Assembly |
| *3 | Main Body ECU (Multiplex Network Body ECU) | *4 | Footwell Light (No. 1 Interior Illumination Lamp Assembly (Front LH)) |
| *5 | Footwell Light (No. 1 Interior Illumination Lamp Assembly (Rear LH)) | *6 | Power Switch |
| *7 | Console Illumination Light Assembly | *8 | Footwell Light (No. 1 Interior Illumination Lamp Assembly (Rear RH)) |
| *9 | Footwell Light (No. 1 Interior Illumination Lamp Assembly (Front RH)) | *10 | Ambient Light (Interior Illumination Light Sub-assembly) |
| *11 | Certification ECU (Smart Key ECU Assembly) | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
