AUDIO AND VISUAL SYSTEM

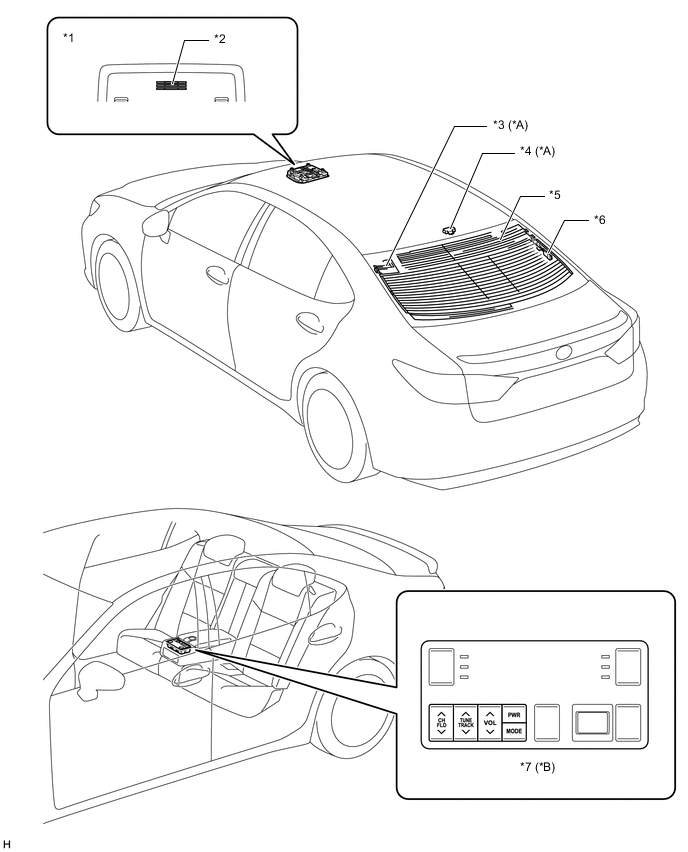

A0002W7C01
*A Models with Digital Audio Broadcast (DAB) Tuner *B Models with 3-zone Control Air Conditioning System
*1 Roof Console Box Assembly *2 Telephone Microphone Assembly
*3

Window Glass Antenna Wire


  • DAB

 *4 Digital Audio Broadcast Antenna Amplifier
*5

Window Glass Antenna Wire


  • AM

  • FM Main

  • FM-sub

 *6 Amplifier Antenna Assembly
*7

Rear Control Switch


  • Rear Seat Audio Control Panel

 - -

Figure 1. LHD Models

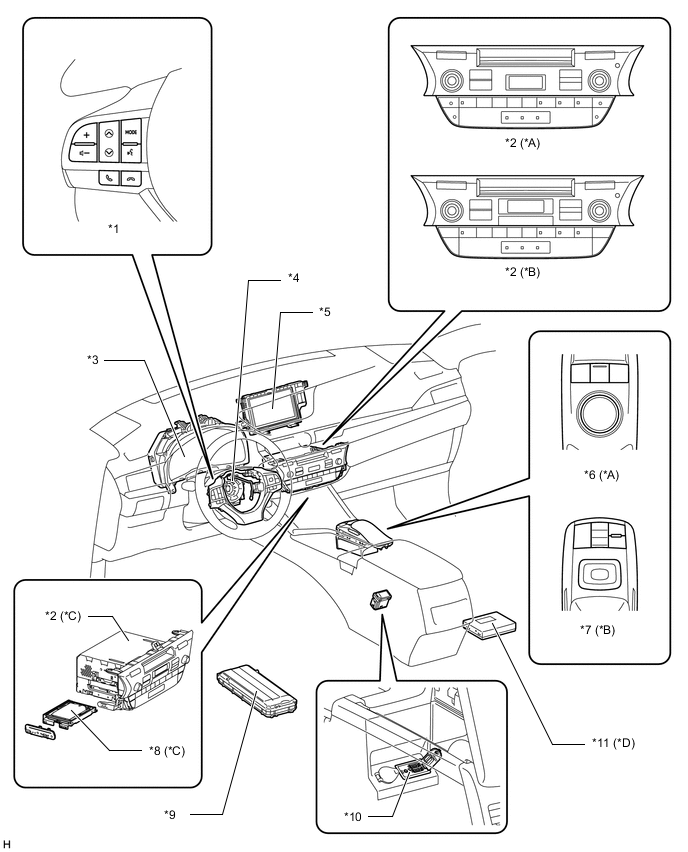

A0002WYC02
*A Models with Lexus Display Audio System *B Models with Navigation System
*C Models for China with Navigation System *D Models for China
*1

Steering Pad Switch Assembly


  • Volume

  • Seek

  • Mode

  • Telephone

  • Voice

 *2 Radio Receiver Assembly
*3 Combination Meter Assembly *4 Spiral Cable with Sensor Sub-assembly
*5

Multi-media Module Display


  • Multi-display

 *6 Lexus Display Audio Controller (Remote Operation Board)
*7 Remote Touch *8 Hard Disc Drive
*9 Stereo Component Amplifier Assembly *10 No. 1 Stereo Jack Adapter Assembly
*11 Telematics Transceiver (Data Communication Module) - -

Figure 2. RHD Models

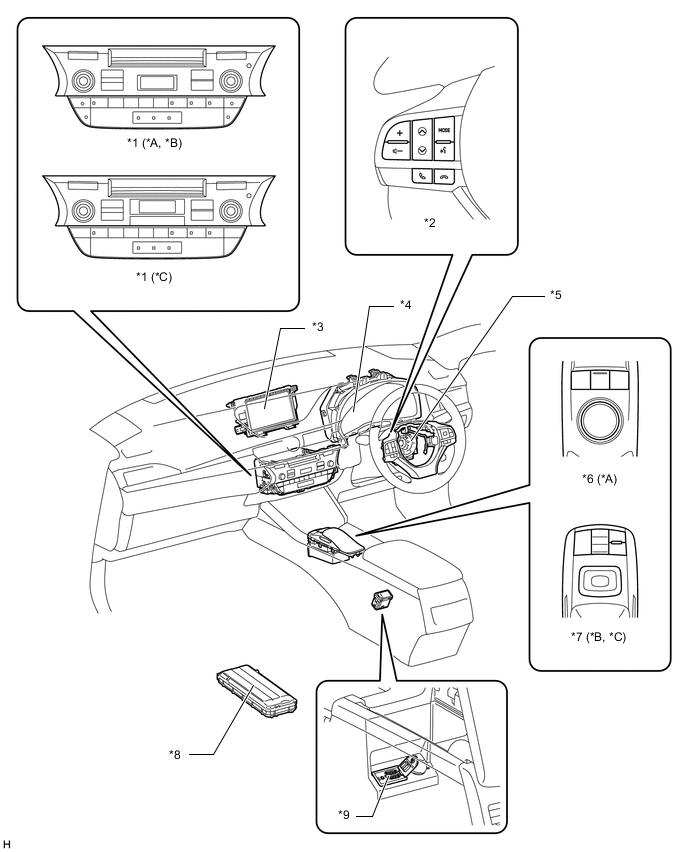

A0002S7C02
*A Models with Lexus Display Audio System *B Models with 15-speaker Surround Sound System
Models with Navigation System - -
*1 Radio Receiver Assembly *2

Steering Pad Switch Assembly


  • Volume

  • Seek

  • Mode

  • Telephone

  • Voice
*3

Multi-media Module Display


  • Multi-display

 *4 Combination Meter Assembly
*5 Spiral Cable with Sensor Sub-assembly *6 Lexus Display Audio Controller (Remote Operation Board)
*7 Remote Touch *8 Stereo Component Amplifier Assembly
*9 No. 1 Stereo Jack Adapter Assembly - -
