AUDIO AND VISUAL SYSTEM

OUTLINE

Audio System

The audio systems shown below are available:

Audio System	Audio Head Unit	Speaker
Lexus Display Audio System	Radio Receiver Assembly	8 Speakers
Navigation System		8 Speakers
Navigation System		15 Speakers

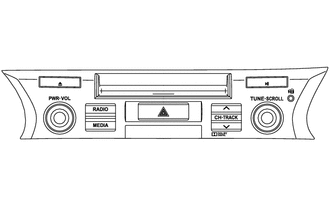

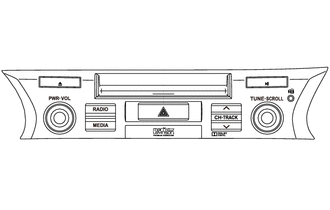

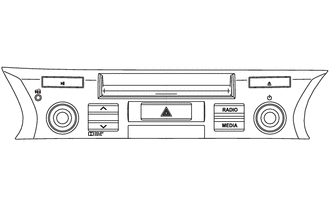

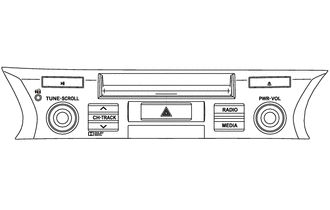

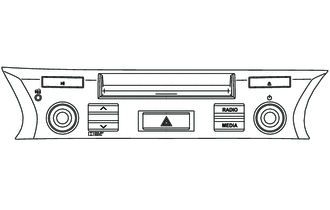

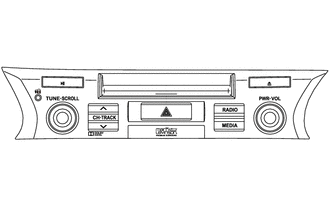

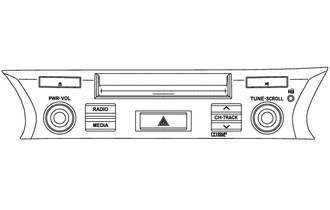

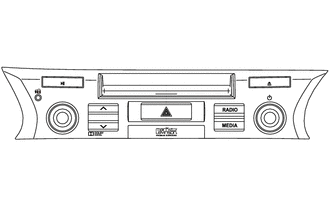

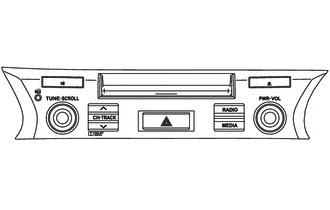

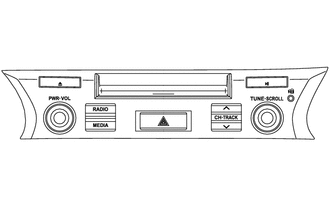

Audio Head Unit

In consideration of the unity with the instrument panel, a uniquely sized audio head unit is provided.
A Thin Film Transistor Liquid Crystal Display (TFT LCD) is used for the multi-display, enabling operation of the audio screen, Bluetooth hands-free screen, vehicle information screen, etc. using the Lexus display audio controller (remote operation board)*1 or remote touch*2.

Tech Tips

For details on the remote touch, refer to the navigation system/multi information system section. Click here
- *1: Models with Lexus display audio system
- *2: Models with navigation system
Due to the change in the multi-display location, the Lexus display audio controller (remote operation board) is used to ensure operability.

The audio source can be switched on the audio source selection screen. The arrangement of the audio sources displayed on the audio source screen can be changed according to the frequency of use.

Audio Source Selection Screen
*1	Navigation System
*2	Lexus Display Audio System
*3	The illustrations shown are examples only. The illustrations may differ from the actual vehicle screens.

The status of the currently selected audio source can be displayed on the multi-information display in the combination meter assembly.
The MirrorLink function is provided. This function enables the user to operate their smartphone using the multi-display by connecting it to the system via a USB cable.*

*: Models with Lexus display audio system
Discs containing MPEG audio layer-3 (MP3) files, Windows Media Audio (WMA) files and Advanced Audio Coding (AAC) files can be played.

Discs with the marks shown below can be played.

Text in Illustration
*A	Destination Package for Southeast Asia	*B	Models with Lexus Display Audio System (Destination Packages for South Africa, Southeast Asia and Taiwan)
*C	Models with Navigation System	-	-

Digital Audio Broadcast (DAB) (Models for Australia and Destination Package for South Africa)
1. Digital Audio Broadcast (DAB) reception is available. This mostly prevents broadcast interference, achieving clear reception with high quality sound.
2. The time shift operation function can be used to play back DAB programs at a later time.

  Tech Tips

  The amount of playback possible depends on the bit rate of the DAB station to be recorded, the amount of DAB unit memory, and the time at which reception of the broadcast began.
Sound Library (Models for China with Navigation System)
1. A sound library function that can compress music sound data using Advanced Audio Coding (AAC) compression technology and record the data to the Hard Disk Drive (HDD) is provided.

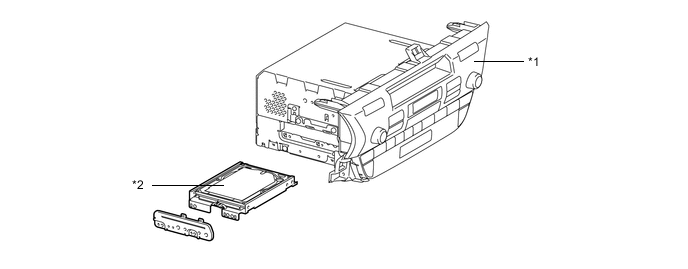

2. A Hard Disk Drive (HDD) is used in the radio receiver assembly. The HDD is available separately, enhancing serviceability. For details, refer to the Repair Manual.

  Text in Illustration

  *1 Radio Receiver Assembly *2 Hard Disk Drive
Automatic Sound Levelizer (ASL)
1. The Automatic Sound Levelizer (ASL) function automatically adjusts the audio system volume level in order to compensate for increased vehicle noise (vehicle noise tends to increase as vehicle speed increases).
2. Vehicle speed signals are received from the combination meter assembly and used for ASL control.
Clari-Fi Music Restoration Technology (Models with Navigation System (with 15-speakers))
1. Files such as an MP3 or AAC have lost the audio details of the original music source during the file compression process. The Clari-Fi technology is used to restore the lost audio details and optimize data.
2. During playback of a compressed music file, the Clari-Fi technology improves the frequency characteristics, dynamic range, low frequency sounds, etc. of the music file in real time, recreating the wide soundstage of the original music source.

Text in Illustration
*1	Radio Receiver Assembly	*2	Hard Disk Drive

USB/AUX Port System

2 USB ports are provided so that up to 2 of the following items can be available at once: USB memory device, portable audio player (USB type), iPhone, iPod classic, iPod, iPod nano or iPod touch.
The USB system enables playback of video data stored on a USB memory device and the display of photo data. (Models with Lexus display audio system or navigation system*)

*: Except models for Australia and China

Videos stored on a video capable device such as an iPod or VTR, can be displayed on the multi-display by connecting the video capable device to the AUX port using a dedicated 4- pole AUX cable.

Tech Tips

Even if 3 or more USB devices are connected using a USB hub, only the first 2 connected USB devices will be recognized.

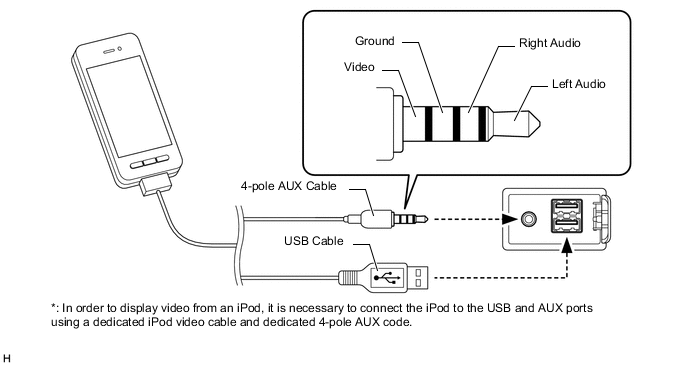

In order to display video from an iPod, it is necessary to connect the iPod to the USB and AUX ports using a dedicated iPod video cable and dedicated 4-pole AUX cable and select "video sound input cable" from the "iPod Settings" screen.
Depending on the specifications of the 4-pole AUX cable used for connecting a video capable device such as an iPod or VTR, the video function may not operate correctly. Use a dedicated 4-pole AUX cable as shown in the illustration when using the video function.
iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
The following iPod, iPod nano, iPod classic, iPod touch and iPhone devices can be used with this system.

Made for
iPod touch (5th generation)*
iPod touch (4th generation)
iPod touch (3rd generation)
iPod touch (2nd generation)
iPod touch (1st generation)
iPod classic
iPod with video
iPod nano (7th generation)*
iPod nano (6th generation)
iPod nano (5th generation)
iPod nano (4th generation)
iPod nano (3rd generation)
iPod nano (2nd generation)
iPod nano (1st generation)
iPhone 5*
iPhone 4S
iPhone 4
iPhone 3GS
iPhone 3G
iPhone

*: iPod video not supported.

Depending on differences between models, software versions etc., some models may be incompatible with this system.

USB memory devices that meet the following specifications are supported:

USB Communication Speed	USB 2.0, Full Speed (12 Mbps) USB 2.0, High Speed (480 Mbps)
File System	FAT 16/32 (Windows)
Device Class	Mass Storage Class
File Format	MP3, WMA, AAC

Photo data, which meets the following specifications, is supported:

File Format	JPEG
Compatible Image Size	Maximum 10MB
Compatible Pixel Size	Maximum 10,000,000 pixels

Video data, which meets the following specifications, is supported:

File Format	WMV, AVI, MP4
Compatible Image Size	Maximum 1920 X 1080
Compatible Pixel Size	Maximum 60 i/30 p

Bluetooth Audio System

The Bluetooth audio system enables users to enjoy music stored on a portable audio player from the vehicle speakers via Bluetooth communication.

The Bluetooth specifications and profiles required for operation are as follows:

Specification / Profile		Version
Specification / Profile		Requirements	Recommendations
Bluetooth Specification		Version 1.1	Version 3.0 + EDR
Profile	Advanced Audio Distribution Profile (A2DP)	Version 1.0 or higher	Version 1.2 or higher
Profile	Audio/Video Remote Control Profile (AVRCP)	Version 1.0 or higher	Version 1.4 or higher

Bluetooth Hands-free System

The Bluetooth hands-free system allows the user to make or receive a call without taking their hands off the steering wheel when the system is linked with a Bluetooth-compatible cellular phone.

Specification / Profile		Version
Specification / Profile		Requirements	Recommendations
Bluetooth Specification		Version 1.1	Version 3.0 + EDR
Profile	Hands Free Profile (HFP)	Version 1.0 or higher	Version 1.6 or higher
	Object Push Profile (OPP)	Version 1.1 or higher	Version 1.2 or higher
	Phone Book Access Profile (PBAP)	Version 1.0 or higher	Version 1.1 or higher
	Message Access Profile (MAP)*1	-	Version 1.0 or higher
	Serial Port Profile (SPP)23	-	Version 1.1 or higher
	Dial-up Networking Profile (DUN)*4	Version 1.1 or higher	-

*1: Destination package for South Africa with navigation system
*2: Models for China with navigation system
*3: Models for Australia
*4: Models for China

Tech Tips

The operation of the interrupt call function of the Bluetooth hands-free system may vary with the Bluetooth phone or the telephone company that is used.

"Bluetooth" is a trademark owned by Bluetooth SIG, Inc.
Some profiles described above may not be supported by the system depending on the audio head unit equipped.
If the specification of the connected Bluetooth phone is lower than the recommended or does not support the functions required, the available functions may be limited.
Registration and connection of a Bluetooth phone is not available when only Object Push Profile (OPP), Phone Book Access Profile (PBAP) and MAP (Message Access Profile) are supported.

When a Bluetooth phone is connected to the audio head unit, e-mails and Short Message Service (SMS) messages received on the phone can be displayed or read out. In addition, it is possible to reply to the received e-mails and send Short Message Service (SMS) messages. (Messages may not be displayed depending on the message service or profile that the connected Bluetooth phone supports.)

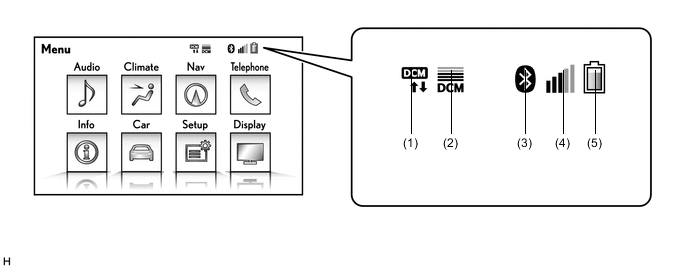

Status Display (Models with Lexus Display Audio System or Navigation System)

The user can confirm the Wi-Fi and Bluetooth connection statuses, and signal strength and remaining battery level of a cellular phone which is connected by Bluetooth, using the status bar displayed on the screen. The status bar is displayed in all modes.

Item		Outline
(1)	G-BOOK network communication device	Displays the communication device communicating with the G-BOOK network.
(2)	Telematics transceiver (data communication module) signal strength*1	Displays the signal strength of the telematics transceiver (data communication module).
(3)	Bluetooth connection status	Displays the Bluetooth connection status between the audio head unit and cellular phone.
(4)	Cellular phone signal strength*2	Displays the signal strength of the cellular phone connected by Bluetooth.
(5)	Cellular phone battery level*2	Displays the battery level of the cellular phone connected by Bluetooth.

*1: Models for China with G-BOOK system
*2: May not be displayed depending on the Bluetooth specifications and profiles of the cellular phone.

Steering Pad Switch
1. Switches that the driver often uses are provided on the steering wheel for convenience.
Cooler Control Switch Assembly (Rear Seat Audio Control Panel)
1. A controller is provided on the rear seat center armrest assembly, enabling the rear seat occupants to adjust the volume and change the audio sources.

MAJOR DIFFERENCE
1. The new models have been modified from the previous models as shown below:
  1. Models for Europe (destination package for Russia) have been discontinued.
  2. The design of the steering pad switch assembly has been changed.
  3. Information from the audio system is now displayed on the multi-information display in the combination meter assembly.

SPECIFICATION

Audio System

LHD Models
Audio Head Unit	Specification	Destination
Radio Receiver Assembly	Lexus Display Audio System: Display Language Supported: English, Simplified Chinese and Traditional Chinese AM/FM Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) CD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface USB Photo MirrorLink Function Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 8-speaker System Unit: Fujitsu Ten Stereo Amplifier: Pioneer	China
Radio Receiver Assembly	Lexus Display Audio System: Display Language Supported: Taiwanese AM/FM Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface USB Photo MirrorLink Function Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 8-speaker System Unit: Fujitsu Ten Stereo Amplifier: Pioneer	Taiwan
Radio Receiver Assembly	Navigation System: Display Language Supported: English, Simplified Chinese and Traditional Chinese AM/FM Tuner Real-time Traffic Information of China (RTIC) Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function HDD Audio (Sound Library) Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 8-speaker System Unit: Pioneer microSD Card (Disc Player Disc): DENSO Stereo Amplifier: Pioneer	China
Radio Receiver Assembly	Navigation System: Display Language Supported: English, Simplified Chinese and Traditional Chinese AM/FM Tuner Real-time Traffic Information of China (RTIC) Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) Clari-Fi Music Restoration Technology CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function HDD Audio (Sound Library) Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 15-speaker System Unit: Pioneer microSD Card (Disc Player Disc): DENSO Stereo Amplifier: Mark Levinson	China
Radio Receiver Assembly	Navigation System: Display Language Supported: Taiwanese AM/FM Tuner Radio Data System Traffic Message Channel (RDS-TMC) Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface USB Video USB Photo Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 8-speaker System Unit: Pioneer microSD Card (Disc Player Disc): Aisin AW Stereo Amplifier: Pioneer	Taiwan
Radio Receiver Assembly	Navigation System: Display Language Supported: Taiwanese AM/FM Tuner Radio Data System Traffic Message Channel (RDS-TMC) Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) Clari-Fi Music Restoration Technology CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface USB Video USB Photo Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 15-speaker System Unit: Pioneer microSD Card (Disc Player Disc): Aisin AW Stereo Amplifier: Mark Levinson	Taiwan

RHD Models
Audio Head Unit	Specification	Destination
Radio Receiver Assembly	Lexus Display Audio System: Display Language Supported: English AM/FM Tuner Digital Audio Broadcast (DAB) Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface USB Video USB Photo MirrorLink Function Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 8-speaker System Unit: Fujitsu Ten Stereo Amplifier: Pioneer	South Africa
Radio Receiver Assembly	Lexus Display Audio System: Display Language Supported: English, Thai, Malay and Indonesian AM/FM Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Video-CD (VCD) Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface USB Video USB Photo MirrorLink Function Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 8-speaker System Unit: Fujitsu Ten Stereo Amplifier: Pioneer	Southeast Asia
Radio Receiver Assembly	Navigation System: Display Language Supported: English AM/FM Tuner Digital Audio Broadcast (DAB) Tuner Radio Data System Traffic Message Channel (RDS-TMC) Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface Voice Recognition Search (USB Audio System) Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 8-speaker System Unit: Pioneer microSD Card (Disc Player Disc): DENSO Stereo Amplifier: Pioneer	Australia
Radio Receiver Assembly	Navigation System: Display Language Supported: English AM/FM Tuner Digital Audio Broadcast (DAB) Tuner Radio Data System Traffic Message Channel (RDS-TMC) Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) Clari-Fi Music Restoration Technology CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface Voice Recognition Search (USB Audio System) Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 15-speaker System Unit: Pioneer microSD Card (Disc Player Disc): DENSO Stereo Amplifier: Mark Levinson	Australia
Radio Receiver Assembly	Navigation System: Display Language Supported: English AM/FM Tuner Digital Audio Broadcast (DAB) Tuner Radio Data System Traffic Message Channel (RDS-TMC) Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface USB Video USB Photo Voice Recognition Search (USB Audio System) Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 8-speaker System Unit: Pioneer microSD Card (Disc Player Disc): Aisin AW Stereo Amplifier: Pioneer	South Africa
Radio Receiver Assembly	Navigation System: Display Language Supported: English AM/FM Tuner Digital Audio Broadcast (DAB) Tuner Radio Data System Traffic Message Channel (RDS-TMC) Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) Clari-Fi Music Restoration Technology CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface USB Video USB Photo Voice Recognition Search (USB Audio System) Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 15-speaker System Unit: Pioneer microSD Card (Disc Player Disc): Aisin AW Stereo Amplifier: Mark Levinson	South Africa
Radio Receiver Assembly	Navigation System: Display Language Supported: English, Thai, Malay and Indonesian AM/FM Tuner Radio Data System Traffic Message Channel (RDS-TMC) Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Video-CD (VCD) Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface USB Video USB Photo Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 8-speaker System Unit: Pioneer microSD Card (Disc Player Disc): Aisin AW Stereo Amplifier: Pioneer	Southeast Asia
Radio Receiver Assembly	Navigation System: Display Language Supported: English, Thai, Malay and Indonesian AM/FM Tuner Radio Data System Traffic Message Channel (RDS-TMC) Tuner Digital Sound Processor (DSP) Automatic Sound Levelizer (ASL) Clari-Fi Music Restoration Technology CD/DVD Player: Compatible with MP3, Windows Media Audio (WMA) and Advanced Audio Coding (AAC) files CD-TEXT Display Function Video-CD (VCD) Display Function Bluetooth Audio System Bluetooth Hands-free System Portable Audio Player (USB type) Interface iPod/iPhone Interface USB Memory Device Interface USB Video USB Photo Stereo Jack Adapter (4-pole AUX cable supported) Customizable vehicle settings can be changed 15-speaker System Unit: Pioneer microSD Card (Disc Player Disc): Aisin AW Stereo Amplifier: Mark Levinson	Southeast Asia

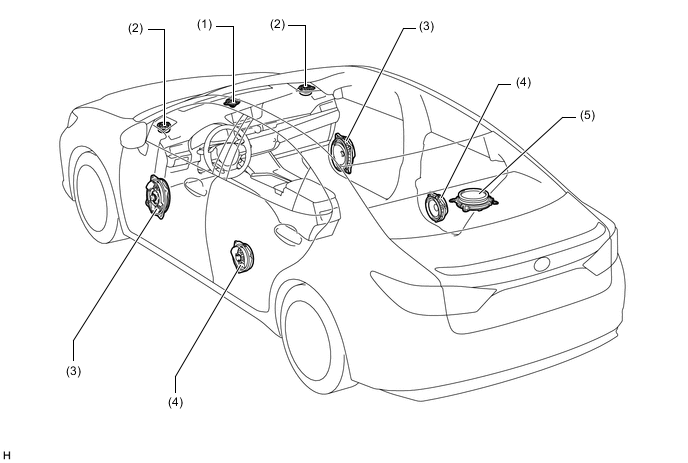

8-speaker System

Location	Speaker Name	Quantity	Size	Impedance	Rated Input Power
(1)	Front No. 3 Speaker Assembly	1	6.5 cm (2.5 in.)	5 Ω	16 W
(2)	Front No. 2 Speaker Assembly	2	6.5 cm (2.5 in.)	4 Ω	20 W
(3)	Front No. 1 Speaker Assembly	2	18 cm (7.1 in.)	4 Ω	20 W
(4)	Rear Speaker Assembly	2	16 cm (6.2 in.)	4 Ω	20 W
(5)	Stereo Component Speaker Assembly	1	20 cm (7.8 in.)	2.5 Ω	32 W

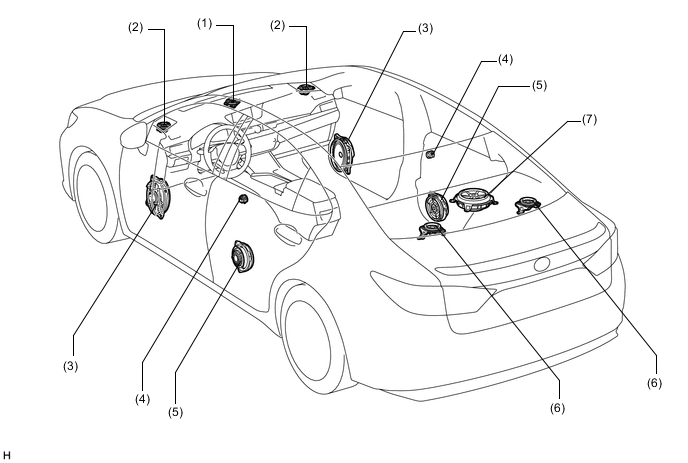

15-speaker System

Location	Speaker Name	Quantity	Size	Impedance	Rated Input Power
(1)	Front No. 3 Speaker Assembly	1+1	9 cm (3.5 in.)	8 Ω	4 W
(2)	Front No. 2 Speaker Assembly	(1 + 1) X 2	9 cm (3.5 in.)	8 Ω	4 W
(3)	Front No. 1 Speaker Assembly	2	17 x 25 cm (7 x 10 in.)	5.2 Ω	9 W
(4)	Rear No. 2 Speaker Assembly	2	2.5 cm (0.9 in.)	4 Ω	0.5 W
(5)	Rear Speaker Assembly	2	17 cm (7 in.)	4.6 Ω	18 W
(6)	Rear Header Speaker Assembly	2	9 cm (3.5 in.)	8 Ω	4 W
(7)	Stereo Component Speaker Assembly	1	20 cm (7.8 in.)	6 Ω	8.5 W

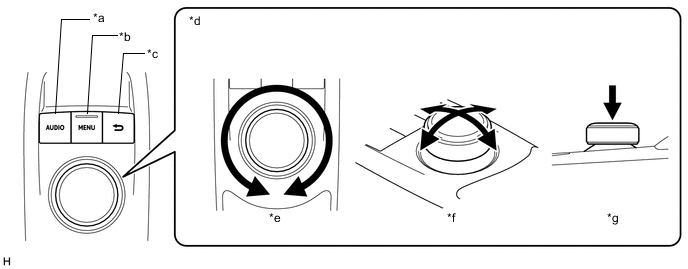

Lexus Display Audio Controller (Remote Operation Board)

Text in Illustration
*a	AUDIO Switch	*b	MENU Switch
*c	Return Switch	*d	Rotary Knob
*e	Rotary Switch (Cursor Operation)	*f	4-way Switch (Cursor Operation)
*g	Push Switch (Enter)	-	-

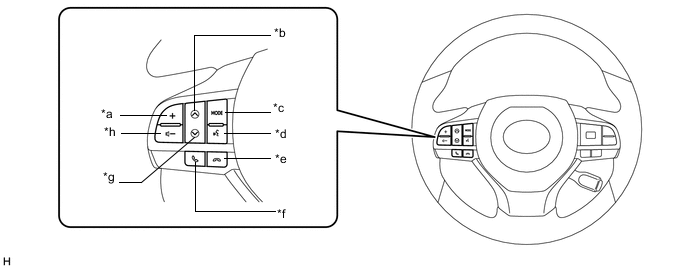

Steering Pad Switch Assembly

Text in Illustration
*a	Volume + Switch	*b	Seek Up Switch
*c	MODE Switch	*d	Voice Switch
*e	On Hook Switch	*f	Off Hook Switch
*g	Seek Down Switch	*h	Volume - Switch

Cooler Control Switch Assembly (Rear Seat Audio Control Panel)

Text in Illustration
*1	Channel Up/Down Switch	*2	Tune Up/Down Switch
*3	Power Switch	*4	Volume Up/Down Switch
*5	Mode Switch	-	-

MAIN FEATURES

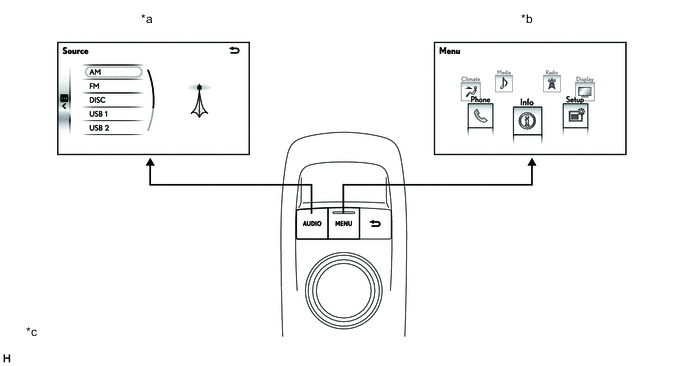

Lexus Display Audio Controller (Remote Operation Board)

Press the AUDIO button or MENU button on the Lexus display audio controller (remote operation board) to start operation of the Lexus display audio system. Audio sources, such as radio and CD, can be operated on the audio screen. The set up function of the Lexus display audio system, the telephone function, the air conditioning system, etc. can be operated from the menu screen.

The user interface of the Lexus display audio system is optimized for operation using the Lexus display audio controller (remote operation board).

Text in Illustration
*a	Channel Up/Down Switch	*b	Tune Up/Down Switch
*c	The illustrations shown are examples only. The illustrations may differ from the actual vehicle screens.	-	-

Sound Library
1. Tracks from a CD are recorded at 4 times normal play speed.
2. Album, artist and title names for recorded tracks can be input or edited freely. These names can help you search for a track easily.
  Tech Tips
  - Recording equipment should be used only for lawful copying. You are advised to carefully confirm what is lawful copying in the country in which you are making a copy.
  - Copying of copyright material such as films or music is unlawful unless permitted by a legal exception or consent granted by the owners of the rights to the content.

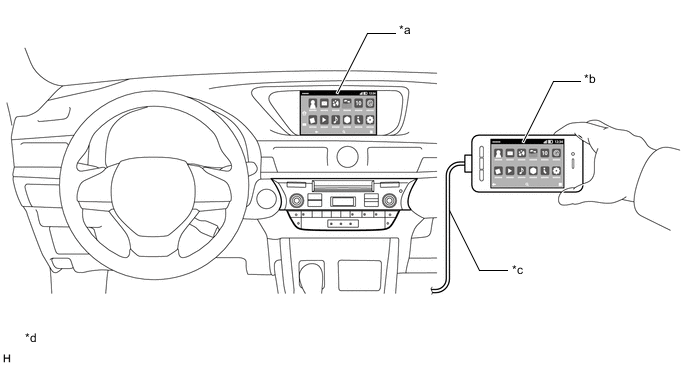

MirrorLink*1 Function

To utilize the MirrorLink function, it is necessary to connect a compatible smartphone*2 to the radio receiver assembly using a USB cable.

After a connection is established, the screen of the smartphone is displayed on the multi-display. Using this screen, the user can operate applications installed on the smartphone and listen to the audio of the smartphone via the vehicles speakers.

Tech Tips

*1: MirrorLink is a registered trademark of Car Connectivity Consortium.

*2: This function is not available if the smartphone is not compliant with MirrorLink of Car Connectivity Consortium standards.

Text in Illustration
*a	MirrorLink Screen	*b	Smartphone
*c	Connection via USB cable	*d	The illustrations shown are examples only. The illustrations may differ from the actual vehicle screens.
