LANE DEPARTURE ALERT SYSTEM

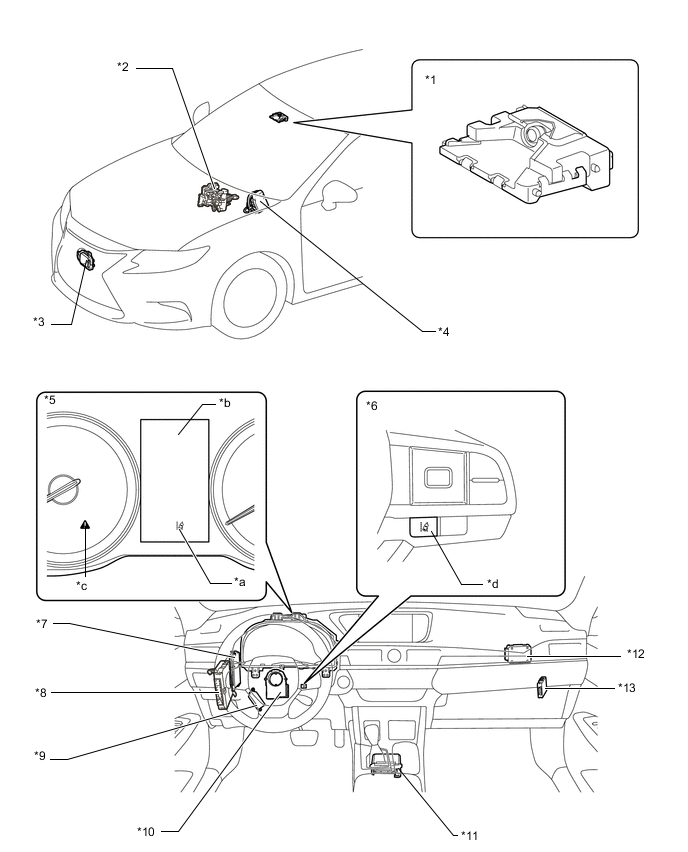

| *1 | Forward Recognition Camera | *2 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
| *3 | Millimeter Wave Radar Sensor Assembly | *4 | Power Steering ECU Assembly |
| *5 | Combination Meter Assembly - Buzzer |
*6 | Steering Pad Switch Assembly |
| *7 | Main Body ECU (Multiplex Network Body ECU) | *8 | Hybrid Vehicle Control ECU Assembly |
| *9 | Steering Vibration ECU | *10 | Steering Sensor |
| *11 | Airbag Sensor Assembly - Yawrate Sensor |
*12 | Driving Support ECU Assembly |
| *13 | Central Gateway ECU | - | - |
| *a | LDA Indicator | *b | Multi-information Display |
| *c | Master Warning Light | *d | LDA Main Switch |
| *1 | Forward Recognition Camera | *2 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
| *3 | Power Steering ECU Assembly | *4 | Millimeter Wave Radar Sensor Assembly |
| *5 | Combination Meter Assembly - Buzzer |
*6 | Steering Pad Switch Assembly |
| *7 | Driving Support ECU Assembly | *8 | Hybrid Vehicle Control ECU Assembly |
| *9 | Main Body ECU (Multiplex Network Body ECU) | *10 | Airbag Sensor Assembly - Yawrate Sensor |
| *11 | Steering Vibration ECU | *12 | Steering Sensor |
| *13 | Central Gateway ECU | - | - |
| *a | LDA Indicator | *b | Multi-information Display |
| *c | Master Warning Light | *d | LDA Main Switch |
