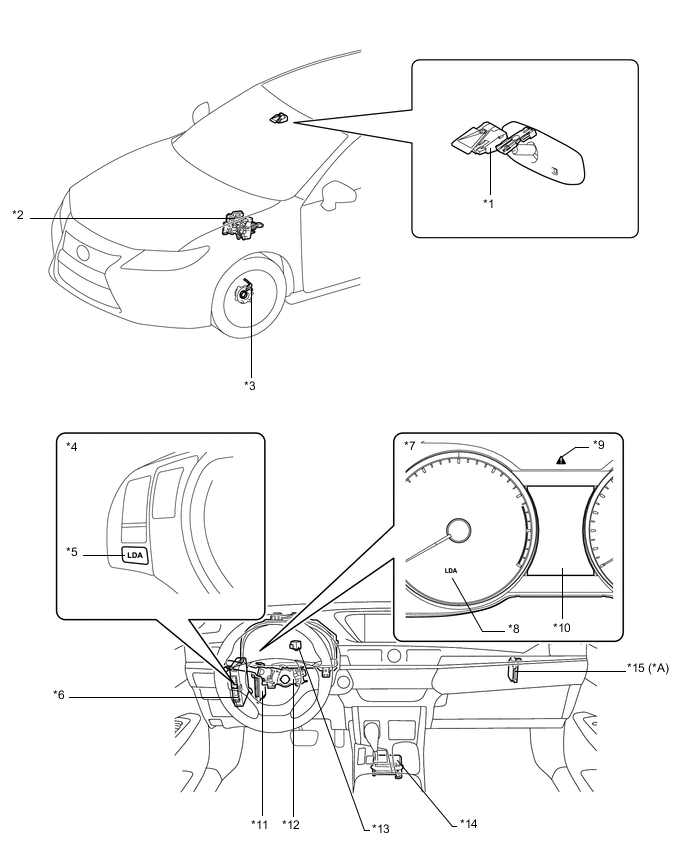

LANE DEPARTURE ALERT SYSTEM
| *A | Models with Dynamic Radar Cruise Control System | - | - |
| *1 | Lane Departure Warning Camera | *2 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
| *3 | Speed Sensor | *4 | Steering Pad Switch Assembly |
| *5 | LDA Switch | *6 | Power Management Control ECU |
| *7 | Combination Meter Assembly - Buzzer |
*8 | LDA Indicator Light |
| *9 | Master Warning Light | *10 | Multi-information Display |
| *11 | Main Body ECU (Multiplex Network Body ECU) | *12 | Headlight Dimmer Switch Assembly |
| *13 | Skid Control Buzzer Assembly | *14 | Airbag Sensor Assembly - Yawrate Sensor |
| *15 | Driving Support ECU Assembly | - | - |
